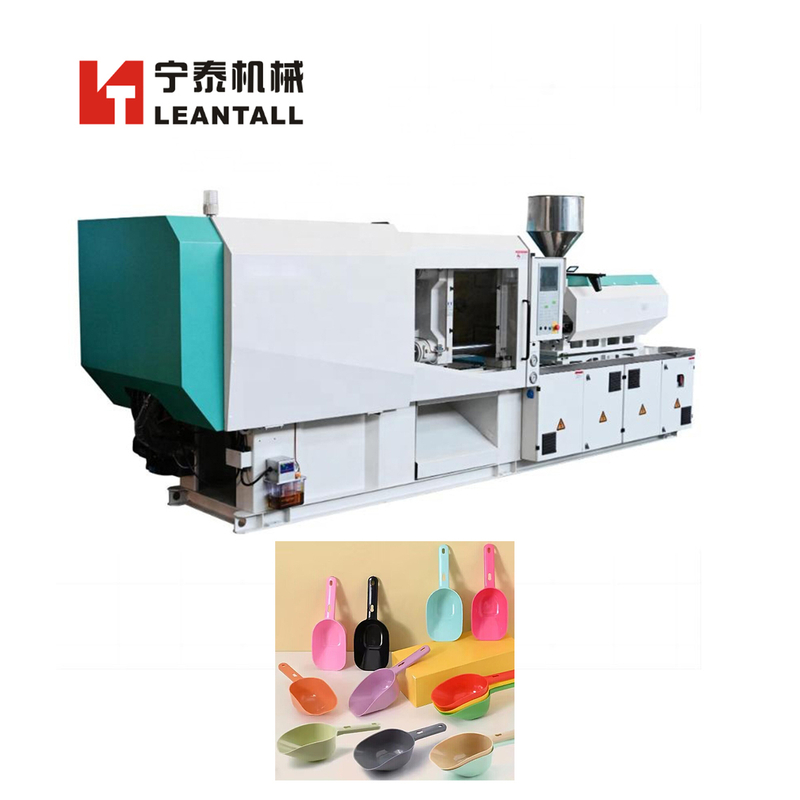

NT180
Leantall
180T
Technical Parameter
Part | Name | Unit | 180 | ||
Injection Unit
| SCREW DIAMETER | mm | 42 | 45 | 50 |
SCREW L/D RATIO | L/D | 21.4 | 20 | 18 | |
INJECTION STROKE | mm | 225 | 225 | 225 | |
NJECTION SPEED | Mm/sec | 94 | 94 | 94 | |
SHOT VOLUME(THEORETICAL) | CM3 | 312 | 358 | 442 | |
INJECTION WEIGHT(PS) | g | 284 | 326 | 402 | |
INJECTION PRESSURE | Mpa | 218 | 190 | 154 | |
INJECTION RATE | cm³/sec | 130 | 149 | 184 | |
SCREW SPEED | rpm | 210 | |||
Clamping Unit
| CLAMP FORCE | Kn | 1800 | ||
OPEN STROKE | mm | 435 | |||
SPACE BETWEEN TIE BARS | mm×mm | 525X465 | |||
MAX.MOULD HEIGHT | mm | 550 | |||
MIN.MOULD HEIGHT | mm | 180 | |||
EJECTOR STROKE | mm | 129 | |||
EJECTOR FORCE | Kn | 46 | |||
EJECTOR NUMBER | N | 5 | |||
Others
| MAX.PUMP PRESSURE | Mpa | 16 | ||
SEVRO DRIVE POWER | Kw | 22 | |||
HEATING POWER | Kw | 9.9 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 5.4*1.4*2.3 | |||
MACHINE WEIGHT(ESTIMATE) | T | 5.4 | |||
MARKET
FAQ
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
Q: What is the standard of the package?
A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
