Technical Parameter

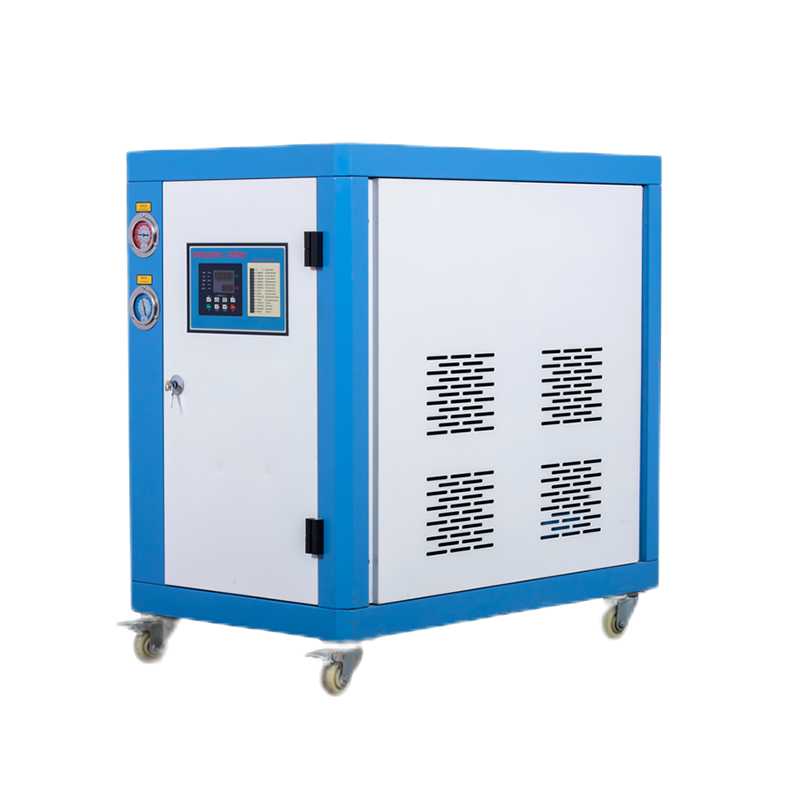

Model | Water Cooled Chiller | |||||||
HC-5W | HC-10W | HC-15W | HC-20W | HC-25W | HC-30W | HC-40W | HC-50W | |
Compressor power ( kw ) | 3.7 | 7.4 | 11.1 | 14.8 | 18.5 | 22.2 | 29.6 | 37 |
Refrigeration capacity ( kal/hr ) | 13500 | 28000 | 41000 | 50000 | 60000 | 82000 | 100000 | 120000 |
Refrigerants | R22 | |||||||
Compressor | （ All-close scroll ） | |||||||
Water tank cubage(L) | 60 | 120 | 180 | 180 | ||||
Water pump power ( kw ) | 0.37 | 0.75 | 1.0 | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
Freeze water flow rate (L/min ) | 115 | 200 | 330 | 330 | 330 | 420 | 420 | 500 |
Cooling water pipe ( inch ) | 1 | 1.5 | 2 | 3 | 3 | 4 | 4 | 5.5 |
External dimension ( mm ) | 1080*790*1270 | 1440*940*1410 | 1790*1150*1590 | 2040*1350*1600 | 2040*1350*1600 | 2200*1550*1650 | 2400*1750*1700 | 2400*1750*1700 |
Weigh ( kg ) | 220 | 400 | 450 | 600 | 650 | 750 | 860 | 920 |
Performance Characteristic:
● The device is applicable to centralized pulverizing of all kinds of plastics, including the waste of injection molding, blow molding and extrusion forming.
● The structure of Crusher is compact for convenient operation, easy cleaning and maintenance which enhances the working efficiency.
About Company Advantages:
1) One-stop service : providing a complete range of equipment, material or technical services that customer might require for syringe production.
2) Our machine is of high efficiency and stability. Its technology and performance can reach international advanced level.
3) 20-year experience in designing, researching & developing, manufacturing the equipment.
4) Professional sales team, providing 7x 24 hours service.
5) Overseas after-sales service, skilled engineers will go to install and debug the machine at buyer’s location.
6) Production manager's theoretical and practical training solution, or headhunting service.
7) An intelligent production management system can be customized to reduce labor consumption and improve production efficiency.
8）Provide drawing or consulting services for the structure and function of products related to medical projects.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a manufacturer with decades of experience, located in Zhejiang province.
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
