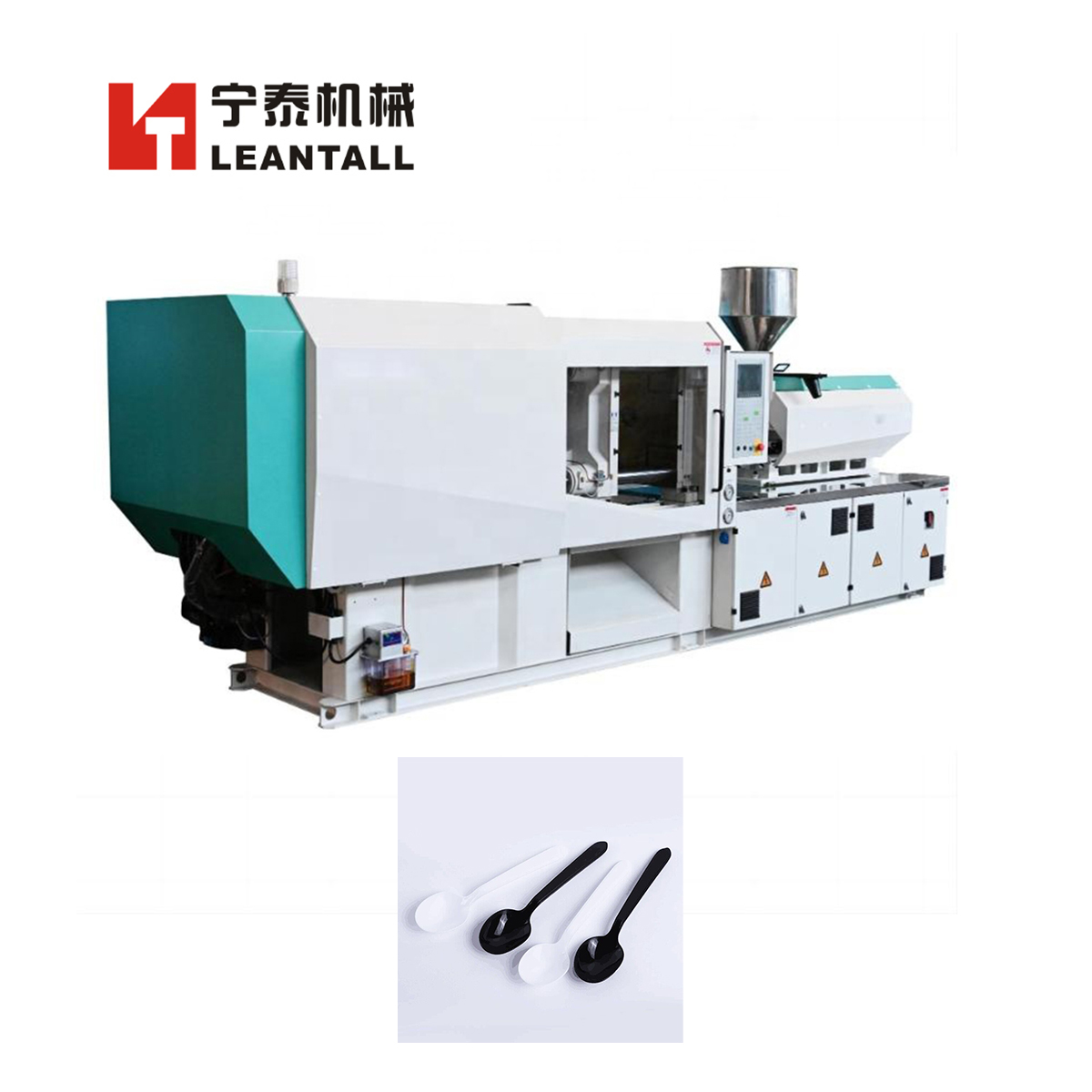

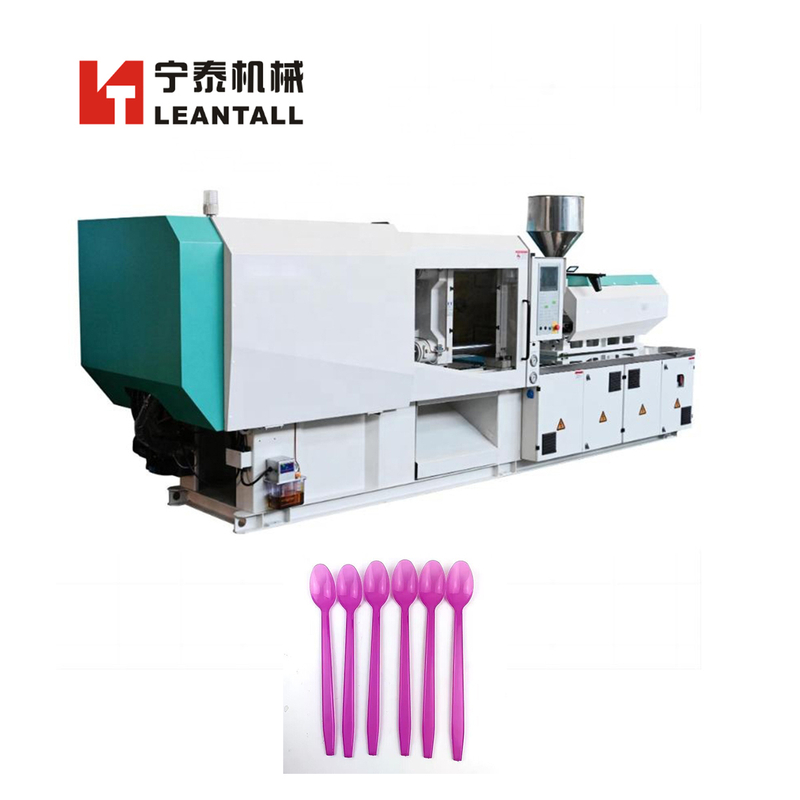

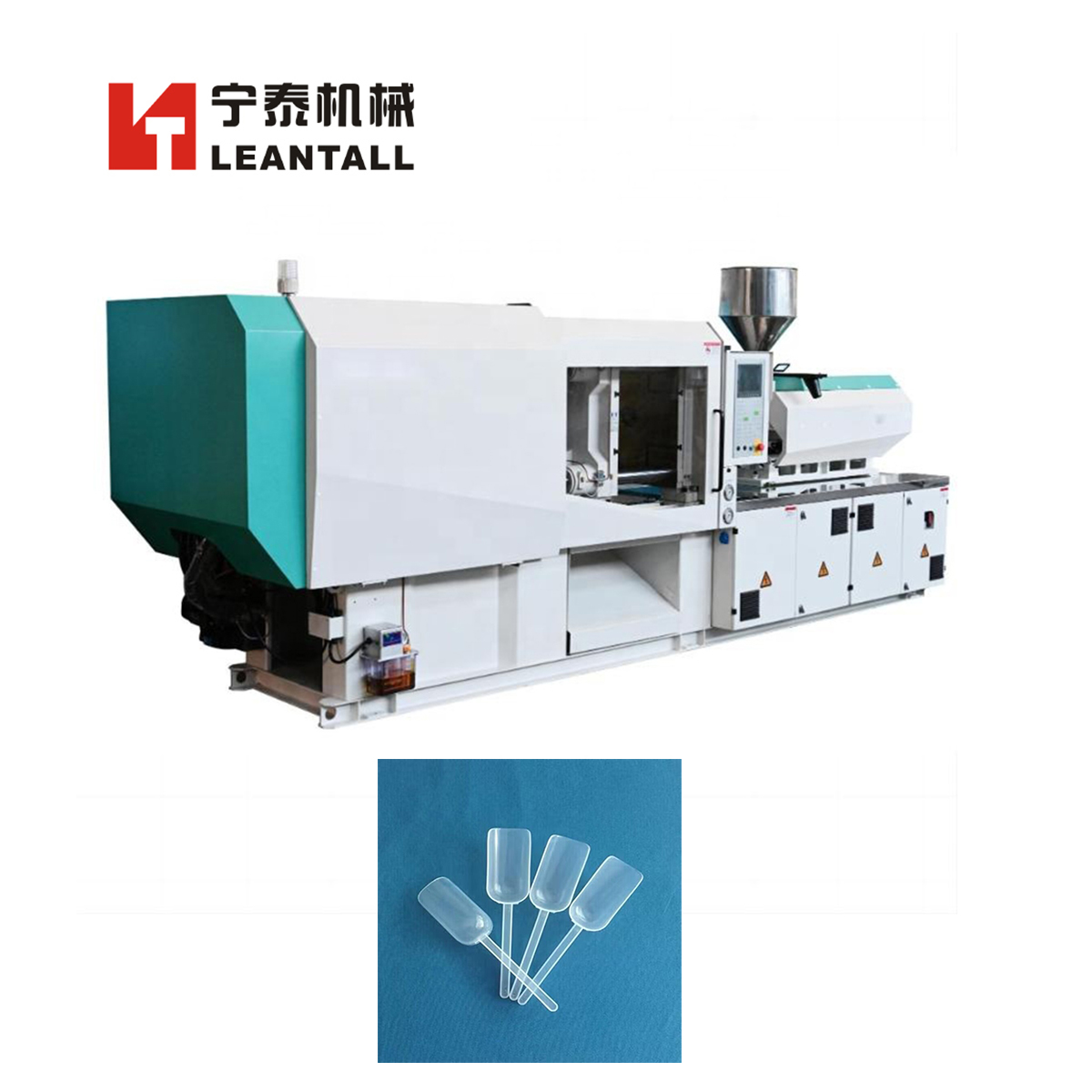

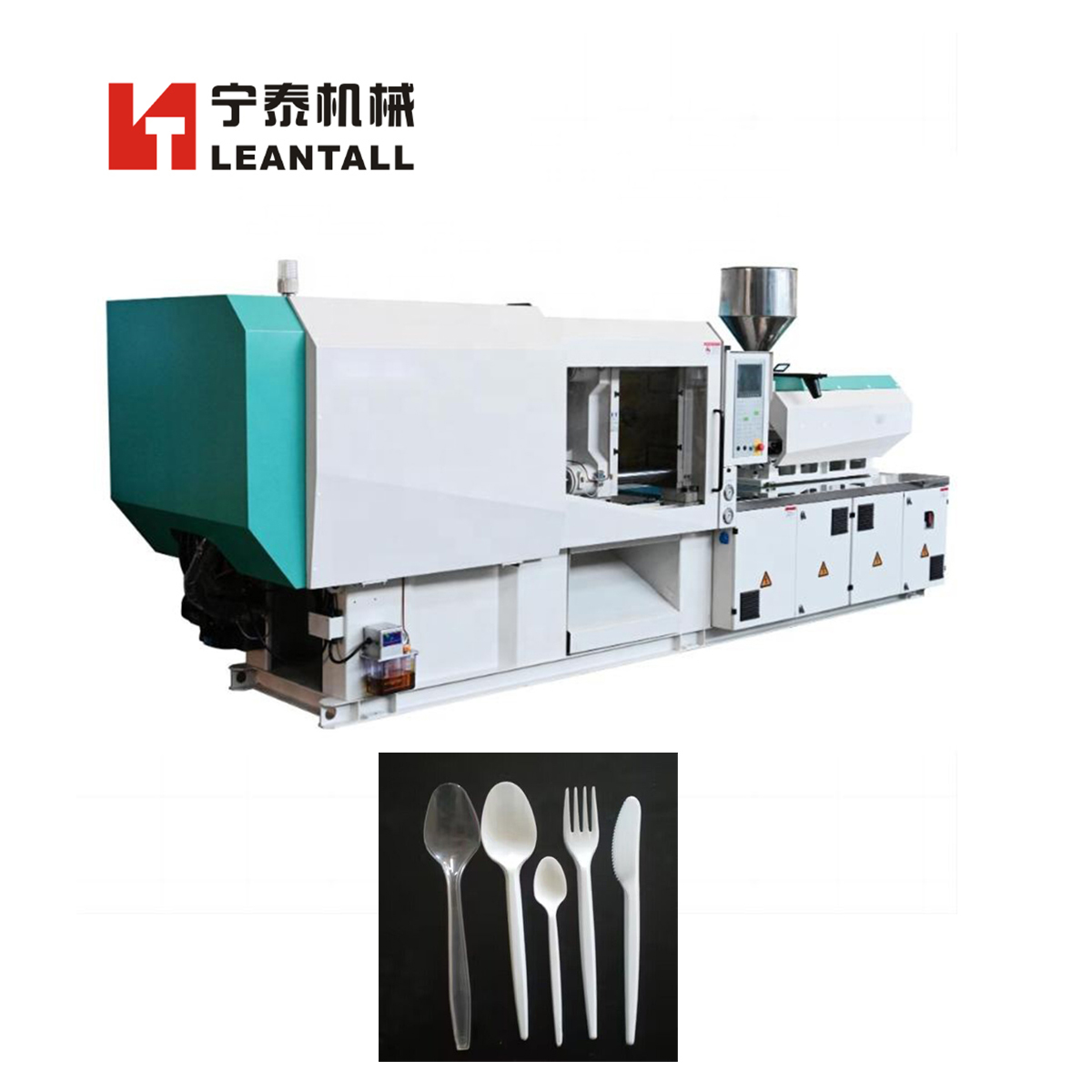

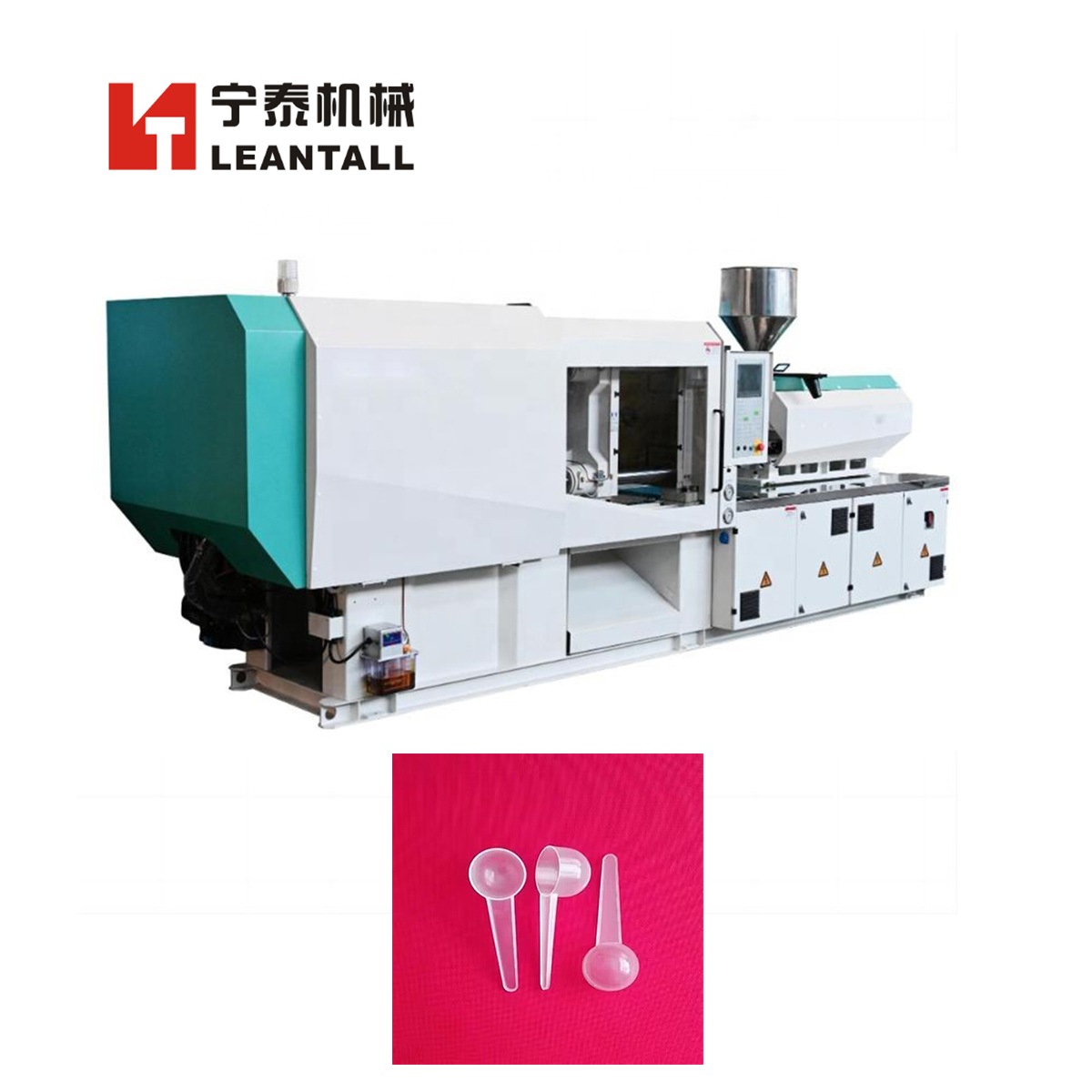

NT280
Leantall
280T
Technical Parameter
Part | Name | Unit | 280 | ||
Injection Unit
| SCREW DIAMETER | mm | 55 | 60 | 65 |
SCREW L/D RATIO | L/D | 23 | 21 | 19 | |
INJECTION STROKE | mm | 285 | 285 | 285 | |
NJECTION SPEED | Mm/sec | 94 | 94 | 94 | |
SHOT VOLUME(THEORETICAL) | CM3 | 677 | 805 | 945 | |
INJECTION WEIGHT(PS) | g | 616 | 732 | 860 | |
INJECTION PRESSURE | Mpa | 202 | 170 | 145 | |
INJECTION RATE | cm³/sec | 223 | 265 | 312 | |
SCREW SPEED | rpm | 210 | |||
Clamping Unit
| CLAMP FORCE | Kn | 2800 | ||
OPEN STROKE | mm | 590 | |||
SPACE BETWEEN TIE BARS | mm×mm | 615X615 | |||
MAX.MOULD HEIGHT | mm | 630 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 135 | |||
EJECTOR FORCE | Kn | 70 | |||
EJECTOR NUMBER | N | 9 | |||
Others
| MAX.PUMP PRESSURE | Mpa | 16 | ||
SEVRO DRIVE POWER | Kw | 37 | |||
HEATING POWER | Kw | 18.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 6.35*1.7*2.35 | |||
MACHINE WEIGHT(ESTIMATE) | T | 9.3 | |||
MARKET
FAQ
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
Q: What is the standard of the package?
A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
