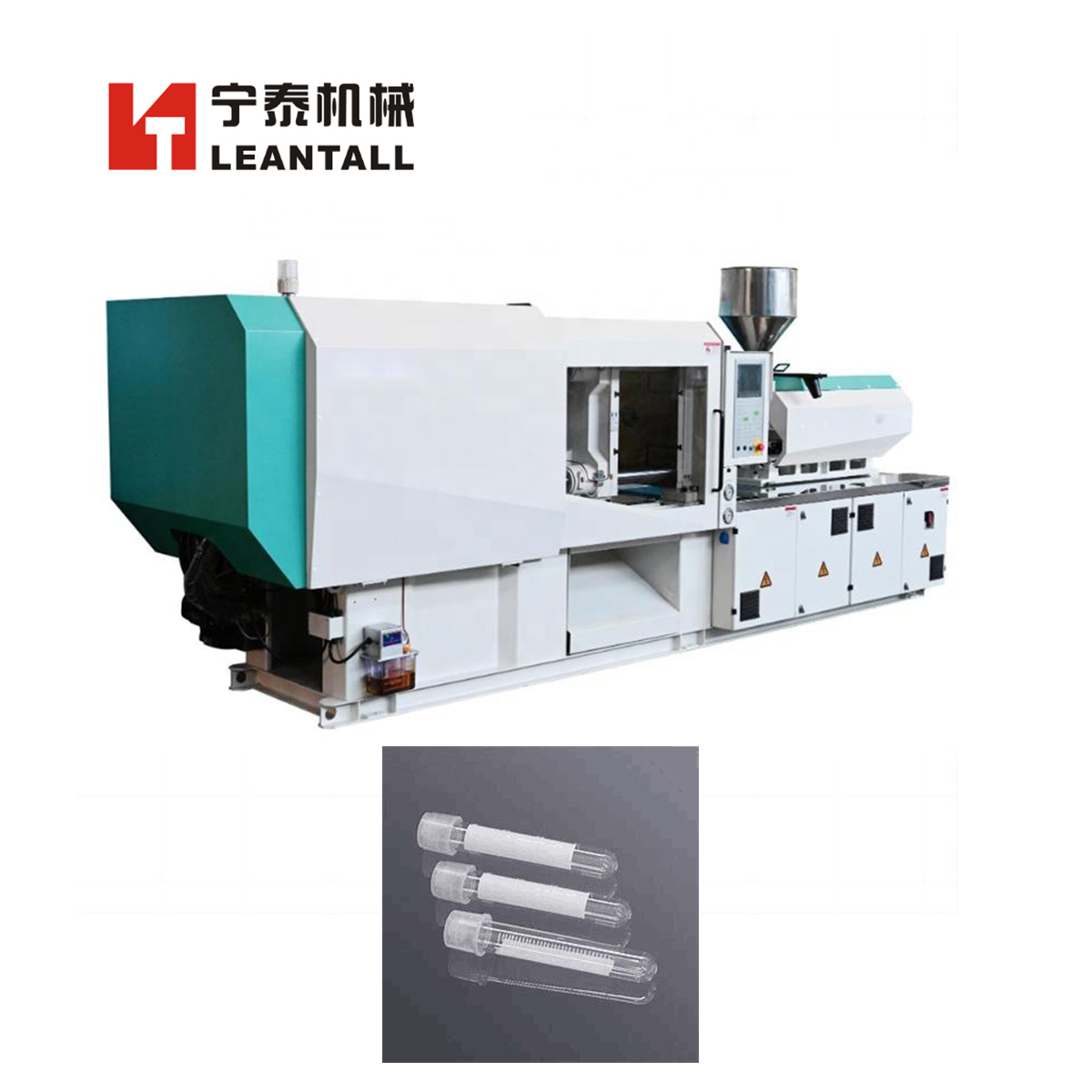

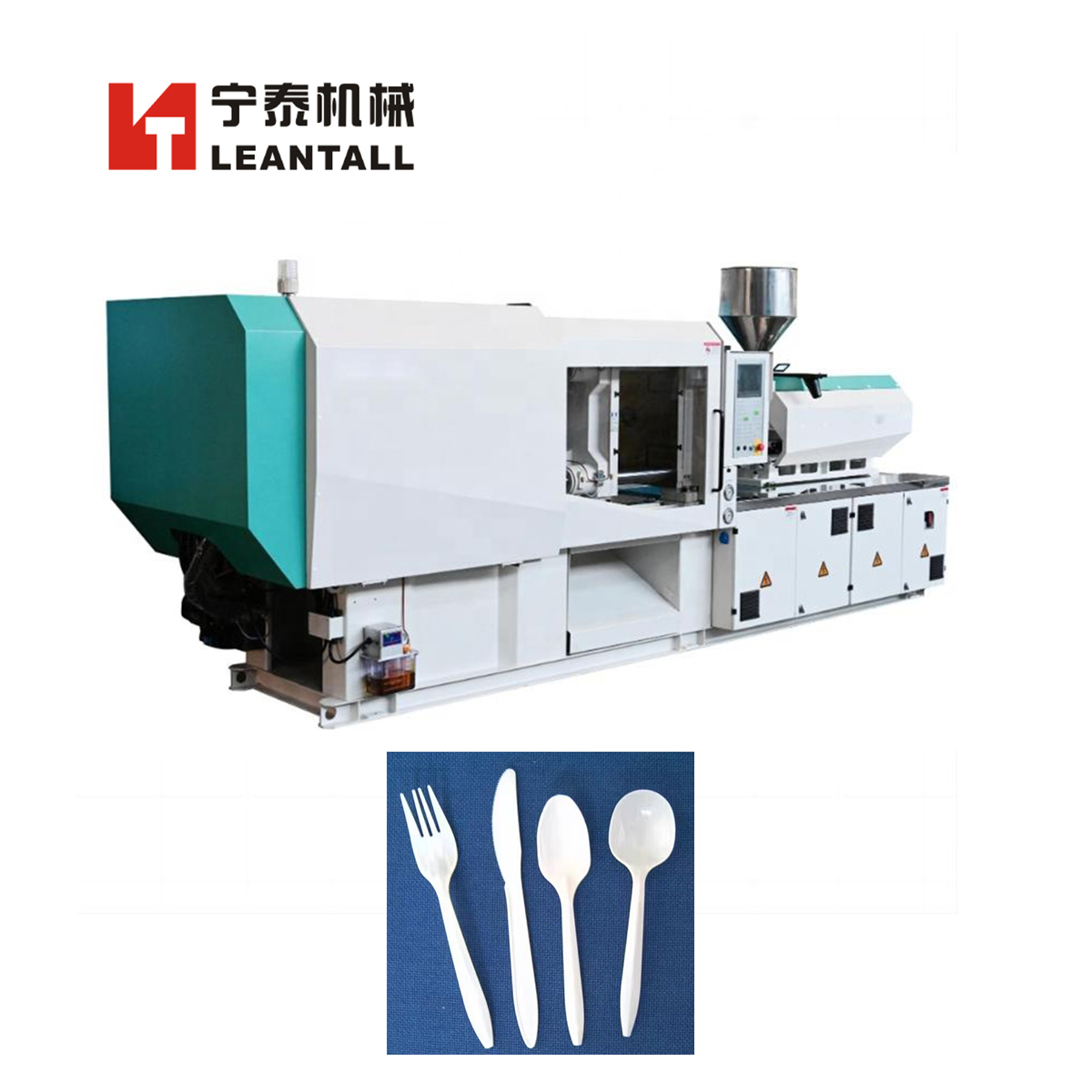

NT630
Leantall
630T
Technical Parameter
Part | Name | Unit | 630 | |||
Injection Unit
| SCREW DIAMETER | mm | 90 | 95 | 100 | 105 |
SCREW L/D RATIO | L/D | 22 | 21 | 20 | 19 | |
INJECTION STROKE | mm | 400 | 400 | 400 | 400 | |
NJECTION SPEED | Mm/sec | 80 | 80 | 80 | 80 | |
SHOT VOLUME(THEORETICAL) | CM3 | 2544 | 2835 | 3141 | 3463 | |
INJECTION WEIGHT(PS) | g | 2315 | 2579 | 2858 | 3151 | |
INJECTION PRESSURE | Mpa | 180 | 162 | 146 | 132 | |
INJECTION RATE | cm³/sec | 508 | 567 | 628 | 692 | |
SCREW SPEED | rpm | 116 | ||||
Clamping Unit
| CLAMP FORCE | Kn | 6300 | |||
OPEN STROKE | mm | 905 | ||||
SPACE BETWEEN TIE BARS | mm×mm | 925X875 | ||||
MAX.MOULD HEIGHT | mm | 900 | ||||
MIN.MOULD HEIGHT | mm | 330 | ||||
EJECTOR STROKE | mm | 295 | ||||
EJECTOR FORCE | Kn | 150 | ||||
EJECTOR NUMBER | N | 21 | ||||
Others
| MAX.PUMP PRESSURE | Mpa | 16 | |||
SEVRO DRIVE POWER | Kw | 45+30 | ||||
HEATING POWER | Kw | 42.8 | ||||
MACHINE DIMENSION(L*W*H) | m×m×m | 10.2*2.2*2.7 | ||||
MACHINE WEIGHT(ESTIMATE) | T | 30 | ||||
MARKET
FAQ
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
Q: What is the standard of the package?
A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
