LEANTALL
Long-Running-Life Plastic Injection Molding Machine

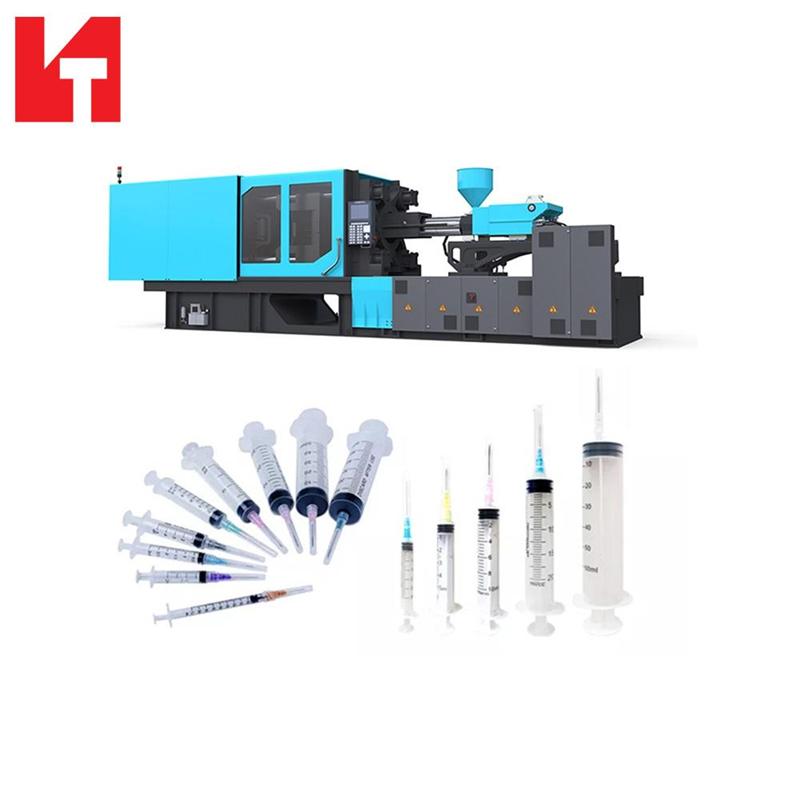

Plastic injection molding equipment comprises four fundamental components: the plasticizing system, injection system, clamping system, and transmission system. Our company has a long-standing commitment to incorporating die casting technologies into injection molding machines, with a focus on advancements in mechanical, hydraulic, and electric control systems. This comprehensive approach facilitates an optimal integration of dynamic pressure casting and speed, resulting in enhanced operational efficiency. To improve both production stability and energy efficiency for medical products such as syringes, we have specifically enhanced our standard injection molding machines by adding infrared heating coils and servo motor systems. These innovations are designed to increase product quality while promoting sustainable manufacturing practices. |  |
| |  |
Technical Parameter
Description | Unit | NT580 | NT630 | NT750 | |||||||||
SCREW DIAMETER | mm | 75 | 80 | 85 | 90 | 90 | 95 | 100 | 105 | 90 | 95 | 105 | 110 |
SCREW L/D RATIO | L/D | 22.7 | 21.3 | 20 | 19 | 22 | 21 | 20 | 19 | 23 | 22 | 20 | 19 |
INJECTION STROKE | mm | 390 | 390 | 390 | 390 | 400 | 400 | 400 | 400 | 460 | 460 | 460 | 460 |
INJECTION SPEED | Mm/sec | 88 | 88 | 88 | 88 | 80 | 80 | 80 | 80 | 81 | 81 | 81 | 81 |
SHOT VOLUME(THEORETICAL) | CM3 | 1723 | 1960 | 2213 | 2481 | 2544 | 2835 | 3141 | 3463 | 2926 | 3260 | 3983 | 4371 |
INJECTION WEIGHT(PS) | g | 1568 | 1783 | 2013 | 2257 | 2315 | 2579 | 2858 | 3151 | 2662 | 2966 | 3624 | 3977 |
INJECTION PRESSURE | Mpa | 186 | 164 | 145 | 129 | 180 | 162 | 146 | 132 | 195 | 175 | 143 | 131 |
INJECTION RATE | cm3/sec | 388 | 442 | 499 | 560 | 508 | 567 | 628 | 692 | 515 | 574 | 701 | 769 |
SCREW SPEED | rpm | 136 | 116 | 109 | |||||||||
CLAMP FORCE | Kn | 5800 | 6300 | 7500 | |||||||||
OPEN STROKE | mm | 850 | 905 | 1000 | |||||||||
SPACE BETWEEN TIE BARS | mm×mm | 860*860 | 925*875 | 1020*970 | |||||||||
MAX.MOULD HEIGHT | mm | 830 | 900 | 960 | |||||||||
MIN.MOULD HEIGHT | mm | 330 | 330 | 400 | |||||||||
EJECTOR STROKE | mm | 226 | 295 | 340 | |||||||||
EJECTOR FORCE | Kn | 150 | 150 | 210 | |||||||||
EJECTOR NUMBER | N | 13 | 21 | 17 | |||||||||
MAX.PUMP PRESSURE | Mpa | 16 | 16 | 16 | |||||||||
SEVRO DRIVE POWER | Kw | 55 | 45+30 | 45+37 | |||||||||
HEATING POWER | Kw | 33.5 | 42.8 | 46 | |||||||||
MACHINE DIMENSION(L*W*H) | m×m×m | 8.6*2.3*2.6 | 10.2*2.2*2.7 | 11*2.4*3.2 | |||||||||
MACHINE WEIGHT（ESTIMATE） | T | 21 | 30 | 35 | |||||||||
Machine Advantages
1. Energy Efficiency:
Servo-controlled machines consume less energy than traditional hydraulic machines because the servo motor only runs when hydraulic power is needed.
The variable displacement pump adjusts its output to match the load, reducing energy waste.
2. Precision:
The servo-driven system provides precise control over the injection and clamping forces.
This results in better part quality and consistency.
3. Reduced Noise:
Servo-controlled machines operate more quietly compared to traditional hydraulic machines, thanks to the smoother and more controlled movement.
4. Extended Service Life:
The reduced wear and tear on the hydraulic system components, due to the precise control of the servo system, can extend the lifespan of the machine.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a manufacturer with decades of experience, located in Zhejiang province.
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 40- days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
