LEANTALL

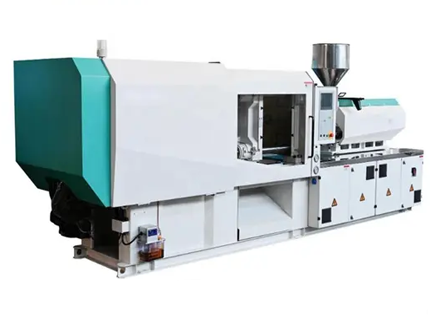

| | Injection molding machines are invaluable assets in high-volume manufacturing, comprising several key components that collaboratively work to produce high-quality precision parts. A foundational element of this system is the clamping unit, which adeptly secures the two halves of the mold together during the injection process. By preventing gaps or misalignments, this component significantly reduces the risk of product defects and enhances the overall integrity of the mold under pressure. Complementing the clamping unit is the injection unit, which is tasked with the critical function of melting polymer pellets and swiftly injecting the molten material into the mold cavity. This process emphasizes the importance of both speed and accuracy, ensuring that each part produced meets rigorous standards of quality and consistency. Through the harmonious interaction of these components, injection molding machines provide an effective solution for achieving efficiency and precision in manufacturing processes. |
 |  |
Technical Parameter
Description | Unit | NT170 | NT180 | NT200 | ||||||
SCREW DIAMETER | mm | 42 | 45 | 50 | 42 | 45 | 50 | 45 | 50 | 55 |
SCREW L/D RATIO | L/D | 21.4 | 20 | 18 | 21.4 | 20 | 18 | 22.2 | 20 | 18.2 |
INJECTION STROKE | mm | 225 | 225 | 225 | 225 | 225 | 225 | 250 | 250 | 250 |
INJECTION SPEED | Mm/sec | 118 | 118 | 118 | 94 | 94 | 94 | 103 | 103 | 103 |
SHOT VOLUME(THEORETICAL) | CM3 | 312 | 358 | 442 | 312 | 358 | 442 | 397 | 490 | 594 |
INJECTION WEIGHT(PS) | g | 284 | 326 | 402 | 284 | 326 | 402 | 361 | 445 | 540 |
INJECTION PRESSURE | Mpa | 174 | 152 | 123 | 218 | 190 | 154 | 221 | 179 | 148 |
INJECTION RATE | cm3/sec | 163 | 187 | 231 | 130 | 149 | 184 | 163 | 202 | 244 |
SCREW SPEED | rpm | 210 | 210 | 225 | ||||||
CLAMP FORCE | Kn | 1700 | 1800 | 2000 | ||||||
OPEN STROKE | mm | 435 | 435 | 435 | ||||||
SPACE BETWEEN TIE BARS | mm×mm | 470*470 | 525*465 | 480*480 | ||||||
MAX.MOULD HEIGHT | mm | 550 | 550 | 550 | ||||||
MIN.MOULD HEIGHT | mm | 180 | 180 | 180 | ||||||
EJECTOR STROKE | mm | 129 | 129 | 135 | ||||||
EJECTOR FORCE | Kn | 46 | 46 | 46 | ||||||
EJECTOR NUMBER | N | 5 | 5 | 5 | ||||||
MAX.PUMP PRESSURE | Mpa | 16 | 16 | 16 | ||||||
SEVRO DRIVE POWER | Kw | 22 | 22 | 30 | ||||||
HEATING POWER | Kw | 9.9 | 9.9 | 12.5 | ||||||
Machine Advantages
1. Adopting servo motors for greater energy and power savings.
2. Fast injection speed, up to 500mm/s.
3. Hydraulic injection molding machines have a very high clamping force, ensuring that the mold remains tightly closed during the injection process and preventing burrs (material leakage).
Our Advantages
1. One-stop service : providing a complete range of equipment, material or technical services that customer might require for syringe production.
2. Our machine is of high efficiency and stability. Its technology and performance can reach international advanced level.
3. 20-year experience in designing, researching & developing, manufacturing the equipment.
4. Professional sales team, providing 7x 24 hours service.
5. Overseas after-sales service, skilled engineers will go to install and debug the machine at buyer’s location.
6. Production manager's theoretical and practical training solution, or headhunting service.
7. An intelligent production management system can be customized to reduce labor consumption and improve production efficiency.
8. Provide drawing or consulting services for the structure and function of products related to medical projects.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a manufacturer with decades of experience, located in Zhejiang province.
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
