The PS Disposable Plastic Cup Production Process

The PS Disposable Plastic Cup Production Process

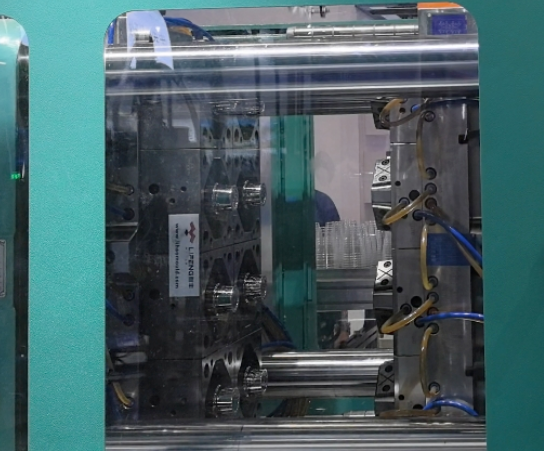

1. Mold

This process determines the disposable plastic cup's quality. The mold quality depends on it's precision, material and structure etc. The high precision mold have long life.

Design a mold with 8 cavities and full hot runner for a 11.3-gram disposable plastic cup. During the mold opening and closing process, 8 complete, hard and highly transparent disposable plastic cups were completed. The cycle time is only 6.5-7.5s.

2. Injection molding machine

The injection molding room, including the molds and injection molding machine.

Plastic injection molding equipment consists of plasticizing system, injection system, the clamping system and transmission system. We have been applying die casting technologies to injection moulding machines for many years, like in mechanical, hydraulic, electric control, etc for comprehensive improvement, perfect combination of dynamic pressure casting and speed.

In order to improve the production stability and energy saving of medical products such as syringes, our company especially added infrared heating coil and servo motor system on the standard injection molding machine.

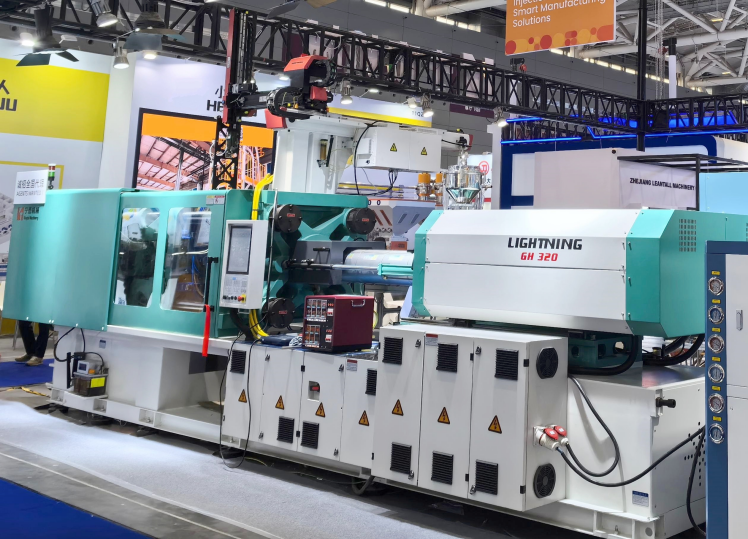

We have matched a 320-ton high-speed injection molding machine for the mold. The machine and the mold work perfectly together, achieving high speed.

The industrial chiller and the cooling water tower are indispensable auxiliary equipment. Of course, other auxiliary equipment can also be added, such as auto-loader, crusher and mixer.

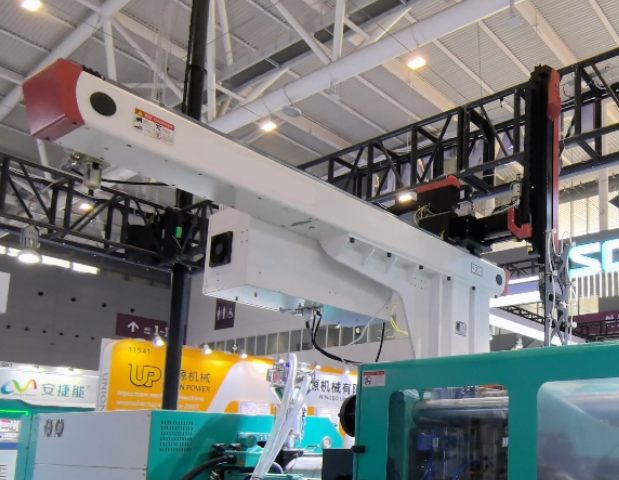

3. 3-Axis Servo High Speed Manipulator

In order to save labor and improve efficiency, we choose a 3-Axis Servo High Speed Manipulator to join our production team.

It's installed on the injection molding machine for grab disposable plastic cup automatically. The manipulator including the device for picking up.

When the mold is opened, it will simultaneously pick up 8 plastic cups and neatly place them on the conveyor belt.

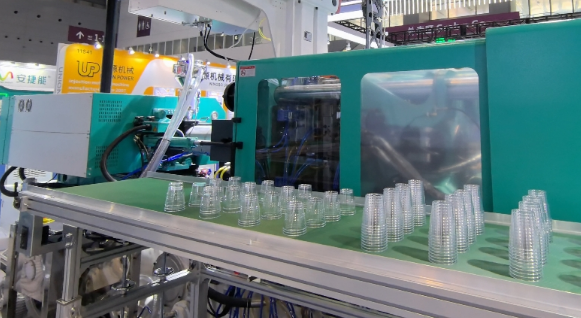

4. Conveyor Belt

Placing a conveyor belt beside on the injection molding machine for more automatic about the whole process. The conveyor belt will stationary when loaded and automatically conveyed when full, and the height can be adjusted for easier operation.

Above introduction is the complete solution about the PS Disposable Plastic Cup Production.

The entire production process is simple and convenient to operate, highly efficient, and the equipment is safe and reliable with an extremely long service life.
