The First Step of The PS Disposable Plastic Cup Production Process - Design Elements of Injection Mold

The First Step of The PS Disposable Plastic Cup Production Process

- Design Elements of Injection Mold

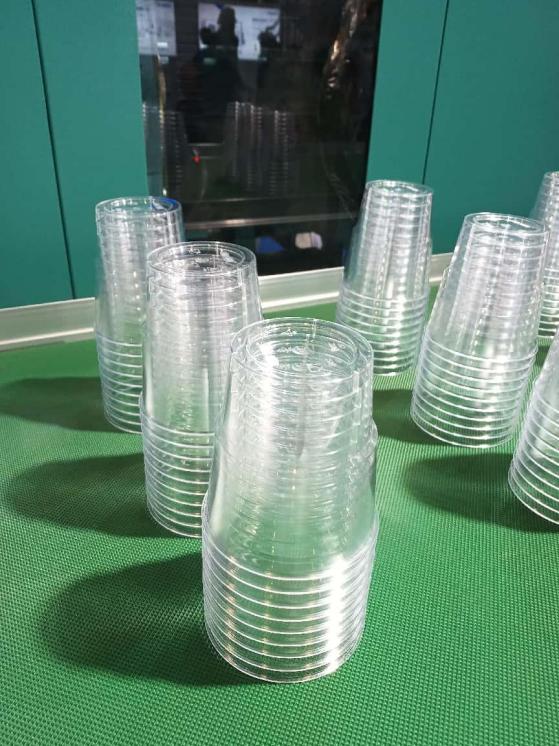

Designing a mold for producing disposable plastic cups involves several key considerations to ensure high quality, efficiency, and longevity.

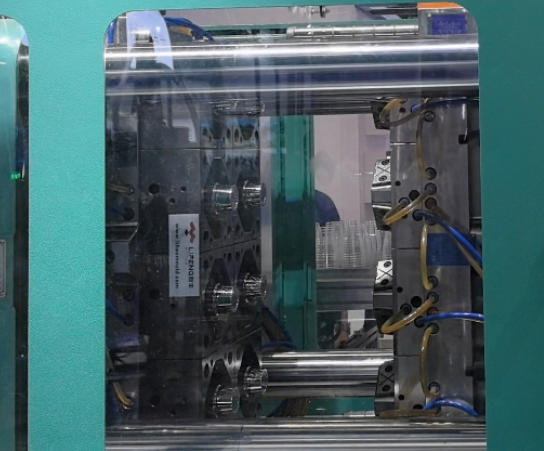

Here's a step-by-step guide to designing an 8-cavity mold with a full hot runner system for producing 11.3-gram disposable plastic cups:

1. Material Selection

- Mold Material: Use high-quality steel such as P20, H13, or stainless steel for its durability and resistance to wear and corrosion.

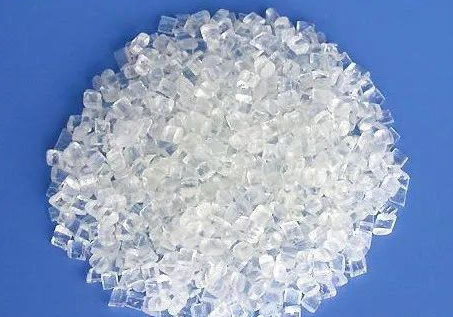

- Cup Material: Typically, polypropylene (PP) or polystyrene (PS) is used for disposable cups due to their cost-effectiveness and ease of molding.

2. Mold Design

- Cavity Layout: Arrange the 8 cavities in a balanced layout to ensure uniform filling and cooling. A circular or rectangular layout may be used depending on the machine's specifications.

- Hot Runner System: Implement a full hot runner system to maintain the plastic in a molten state until it reaches the cavities. This reduces material waste and improves cycle time.

- Manifold Design: Design the manifold to evenly distribute molten plastic to each cavity with minimal pressure drop.

- Nozzle Design: Use valve gate nozzles to ensure precise control over the flow of plastic into each cavity.

3. Precision and Tolerances

- High Precision: Ensure tight tolerances in the mold machining process to achieve high precision in the final product. This helps in achieving the desired transparency and dimensional accuracy.

- Surface Finish: Polish the cavity surfaces to a high gloss to enhance the transparency of the cups.

4. Cooling System

- Efficient Cooling: Design an efficient cooling system with strategically placed cooling channels to ensure uniform cooling and minimize cycle time.

- Cooling Channels: Use conformal cooling channels if possible, to closely follow the contour of the mold for optimal heat transfer.

5. Ejection System

- Ejector Pins: Place ejector pins strategically to ensure smooth and even ejection of cups without damaging them.

- Air Ejection: Consider using air ejection to assist in releasing the cups from the mold.

6. Cycle Time Optimization

- Cycle Time: Aim for a cycle time between 6.5 to 7.5 seconds. Achieve this by optimizing the injection speed, cooling time, and ejection process.

- Automation: Implement automation for the mold opening, closing, and part removal processes to reduce cycle time and increase production efficiency.

7. Quality Assurance

- Testing: Conduct thorough testing of the mold to ensure all cavities produce cups of consistent quality and transparency.

- Maintenance: Design the mold for easy maintenance and cleaning to prolong its lifespan and maintain product quality.

By focusing on these design elements, you can create a high-precision, efficient mold for producing disposable plastic cups with excellent transparency and quality.
