LEANTALL

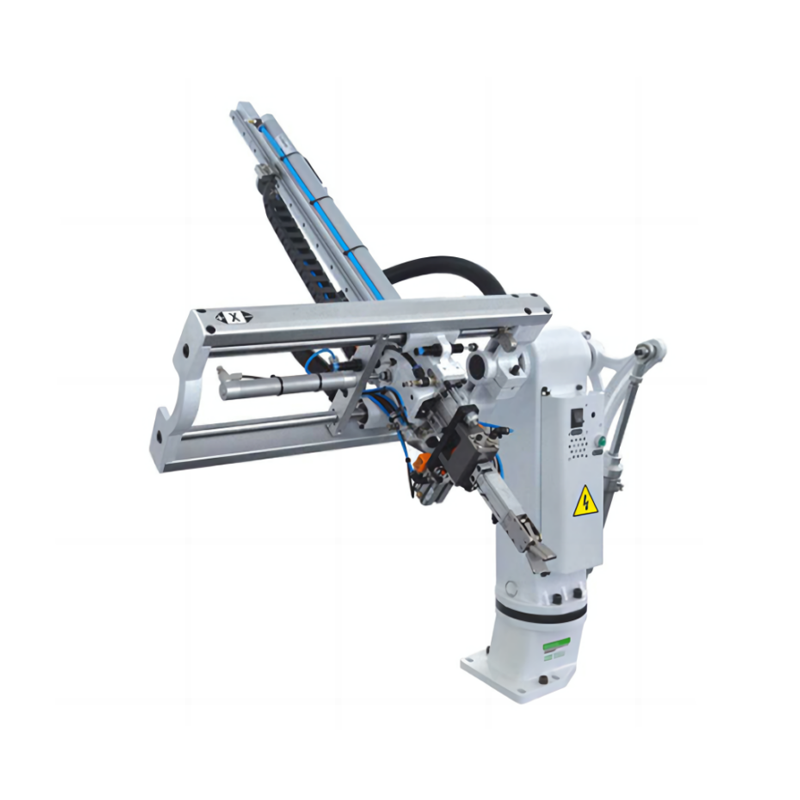

Swing Single-Arm Robot
Performance Characteristics:
1. It is installed seamlessly on the machine for automatic runner grabbing, ensuring efficiency.
2. It can boost automation and significantly cut down on personnel loss, enhancing productivity.
3. It is available in various models to meet diverse needs and applications.
The installation hole will be customized according to the different plastic injection molding machines based on the options. The current robot arm is to pick up the runners after injection, there are robot arm to pick up the runner and plastic parts together.
Technical Parameter
Model | Battery capacity | Fit to IMM Tons | Vertical stroke (mm ) | Right-left stroke (mm) | Swing angle | Take out time | Cycle time | Max load (kg) | Weight ( kg ) |
SP650V | 0.2KVA | 30-120 | 650 | 120 | 60-90° | 3 | 6 | 2 | 40 |
SP750V | 0.2KVA | 100-180 | 750 | 200 | 60-90° | 3 | 6 | 2 | 50 |
SP850V | 0.2KVA | 120-250 | 850 | 200 | 60-90° | 3 | 9 | 2 | 60 |
Mold | A | B | C | D | E | F | G | H | I | J | K | L |
SP650V | 1250 | 890 | 508 | 560 | 255 | 185 | 413 | 100 | 430 | 120 | 300 | 175 |
SP750V | 1350 | 940 | ||||||||||
SP850V | 1450 | 990 |
| The Swing Single-Arm Robot is engineered for seamless integration with machines, facilitating the automatic retrieval of runners and thereby ensuring enhanced efficiency. This technology is capable of elevating automation levels, significantly reducing the necessity for personnel, and consequently improving overall productivity. The robot is offered in various models to accommodate a diverse array of needs and applications. Furthermore, the installation hole will be customized to align with the specifications of different plastic injection molding machines. The current robot arm is designed to retrieve runners after the injection process, while there are also models capable of simultaneously handling both runners and plastic components, thereby optimizing operational efficiency. |  |
About Company Advantages
1. One-stop service : providing a complete range of equipment, material or technical services that customer might require for syringe production.
2. Our machine is of high efficiency and stability. Its technology and performance can reach international advanced level.
3. 20-year experience in designing, researching & developing, manufacturing the equipment.
4. Professional sales team, providing 7x 24 hours service.
5. Overseas after-sales service, skilled engineers will go to install and debug the machine at buyer’s location.
6. Production manager's theoretical and practical training solution, or headhunting service.
7. An intelligent production management system can be customized to reduce labor consumption and improve production efficiency.
8. Provide drawing or consulting services for the structure and function of products related to medical projects.
