NT1180
Leantall
1180T
Description

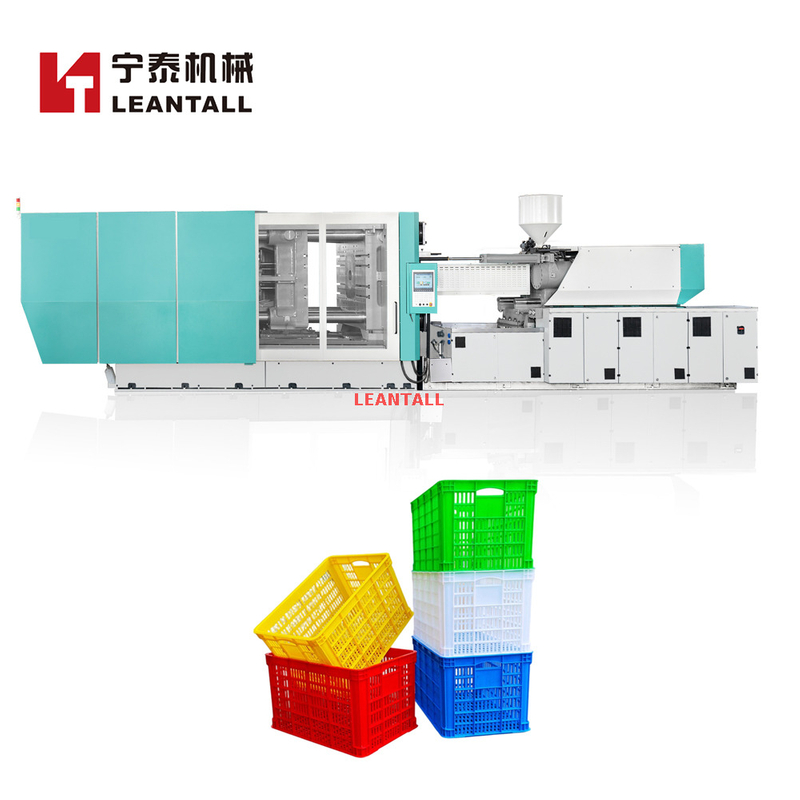

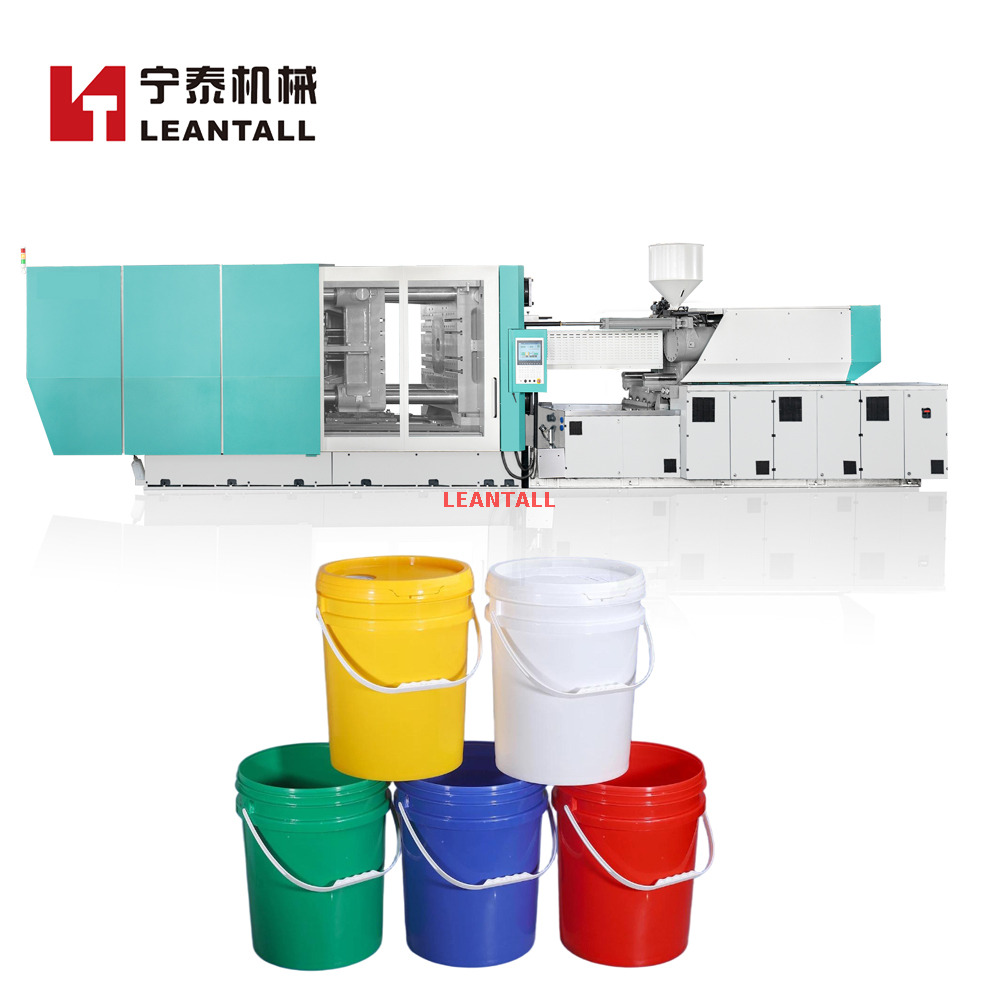

This 1180T machine delivers high-precision molding for oversized plastic products, including industrial containers, heavy-duty crates, and automotive components. Its large clamping force ensures uniform pressure distribution, reducing deformation and improving product strength.
A key feature is the integration of high-speed robotic arms for automatic take-out, stacking, or labeling. This reduces labor costs, avoids product damage, and increases overall production efficiency.
The system supports fully automated production lines, combining intelligent sensors and programmable paths to achieve stable, high-volume output. It is ideal for materials like PP, HDPE, ABS, and reinforced plastics, offering maximum flexibility for industrial-scale manufacturing.
Technical Parameter
Part |
Name |
Unit |
1180 |
|||
Injection Unit
|
SCREW DIAMETER |
mm |
105 |
115 |
125 |
135 |
SCREW L/D RATIO |
L/D |
23.8 |
21.7 |
20 |
18.5 |
|
INJECTION STROKE |
mm |
555 |
555 |
555 |
555 |
|
INJECTION SPEED |
Mm/sec |
65 |
65 |
65 |
65 |
|
SHOT VOLUME(THEORETICAL) |
CM3 |
4805 |
5764 |
6810 |
7943 |
|
INJECTION WEIGHT(PS) |
g |
4372 |
5245 |
6197 |
7228 |
|
INJECTION PRESSURE |
Mpa |
207 |
173 |
146 |
125 |
|
INJECTION RATE |
cm³/sec |
562 |
675 |
797 |
930 |
|
SCREW SPEED |
rpm |
98 |
||||
Clamping Unit
|
CLAMP FORCE |
Kn |
11800 |
|||
OPEN STROKE |
mm |
1180 |
||||
SPACE BETWEEN TIE BARS |
mm×mm |
1180X1100 |
||||
MAX.MOULD HEIGHT |
mm |
1250 |
||||
MIN.MOULD HEIGHT |
mm |
500 |
||||
EJECTOR STROKE |
mm |
325 |
||||
EJECTOR FORCE |
Kn |
245 |
||||
EJECTOR NUMBER |
N |
21 |
||||
Others
|
MAX.PUMP PRESSURE |
Mpa |
16 |
|||
SEVRO DRIVE POWER |
Kw |
55+37 |
||||
HEATING POWER |
Kw |
68.5 |
||||
MACHINE DIMENSION(L*W*H) |
m×m×m |
12.5*2.65*3.5 |
||||
MACHINE WEIGHT(ESTIMATE) |
T |
54 |
||||
MARKET
FAQ
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
Q: What is the standard of the package?
A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
