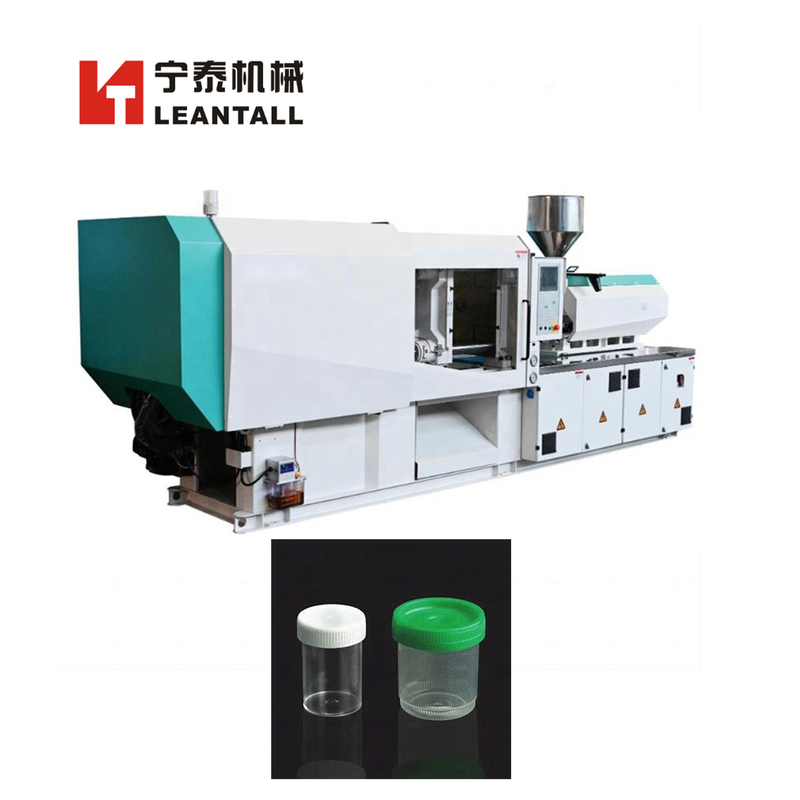

NT120
Leantall
120T
Technical Parameter
Part | Name | Unit | 120 | ||
Injection Unit | SCREW DIAMETER | mm | 38 | 42 | 45 |
SCREW L/D RATIO | L/D | 22 | 20 | 18.5 | |
INJECTION STROKE | mm | 170 | 170 | 170 | |
NJECTION SPEED | Mm/sec | 90 | 90 | 90 | |
SHOT VOLUME(THEORETICAL) | CM3 | 193 | 235 | 270 | |
INJECTION WEIGHT(PS) | g | 175 | 213 | 245 | |
INJECTION PRESSURE | Mpa | 177 | 145 | 126 | |
INJECTION RATE | cm³/sec | 102 | 124 | 143 | |
SCREW SPEED | rpm | 190 | |||
Clamping Unit | CLAMP FORCE | Kn | 1200 | ||
OPEN STROKE | mm | 360 | |||
SPACE BETWEEN TIE BARS | mm×mm | 420X380 | |||
MAX.MOULD HEIGHT | mm | 430 | |||
MIN.MOULD HEIGHT | mm | 150 | |||
EJECTOR STROKE | mm | 107 | |||
EJECTOR FORCE | Kn | 40 | |||
EJECTOR NUMBER | N | 5 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
SEVRO DRIVE POWER | Kw | 15 | |||
HEATING POWER | Kw | 7.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 4.6*1.3*2.1 | |||
MACHINE WEIGHT(ESTIMATE) | T | 3.5 | |||
MARKET
FAQ
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
Q: What is the standard of the package?
A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
