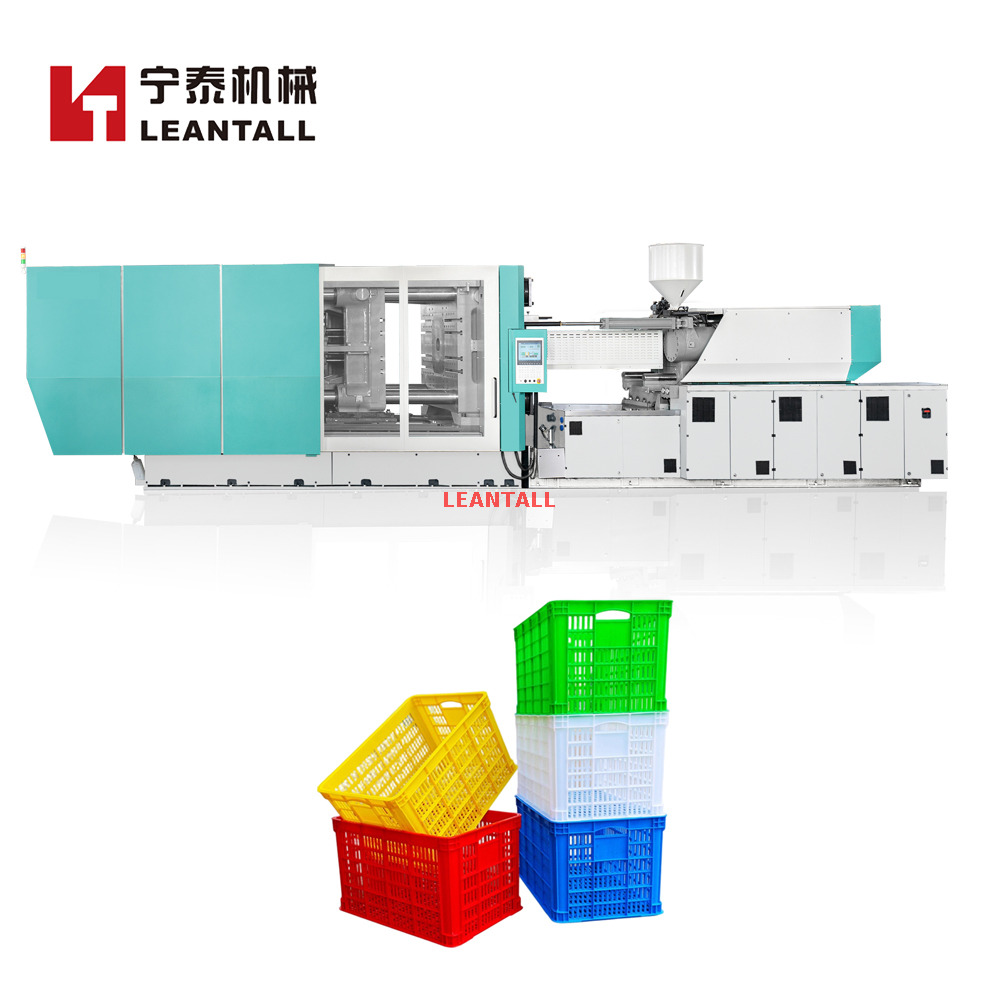

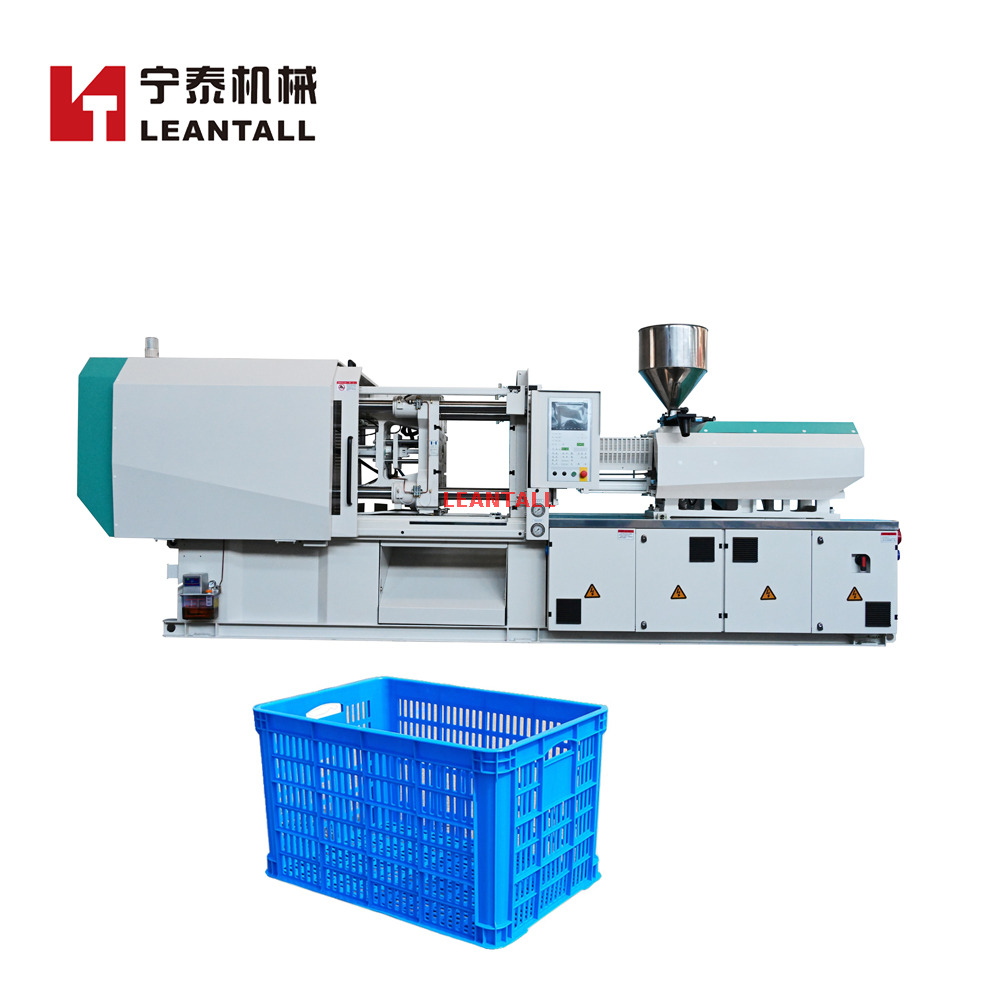

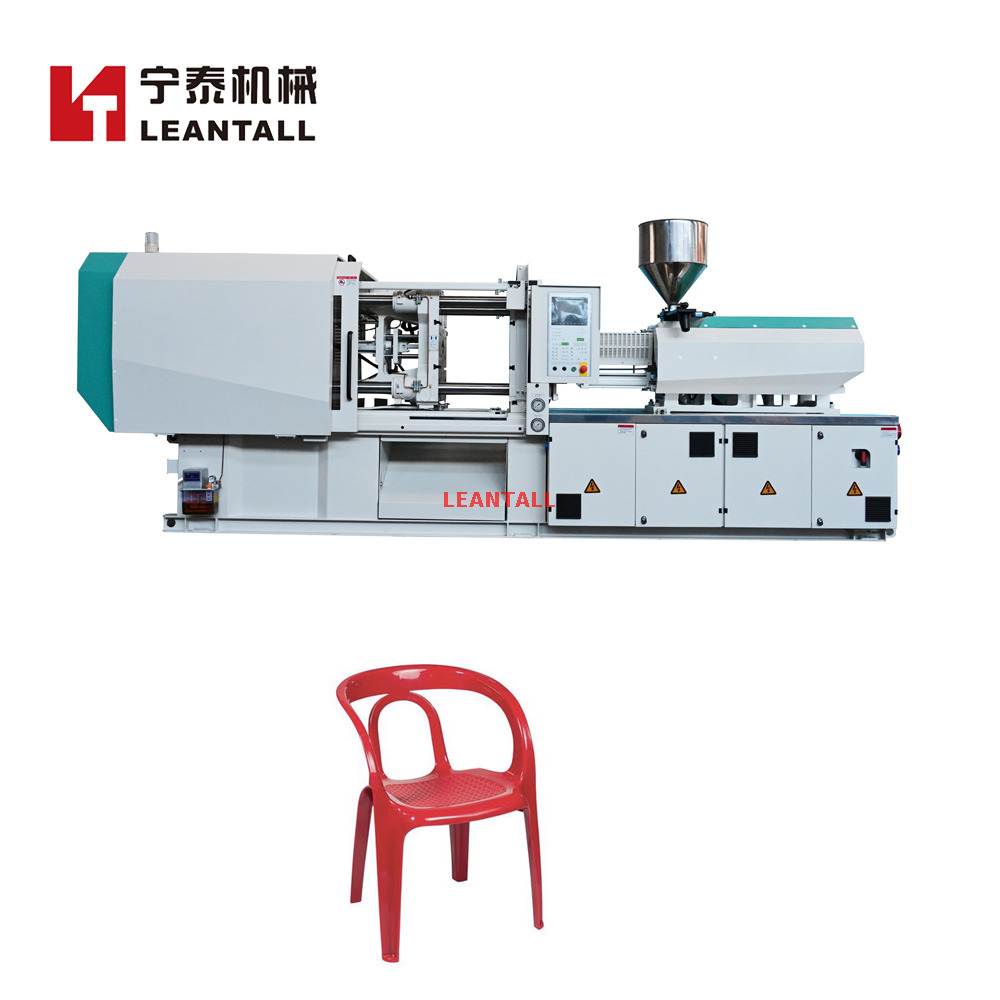

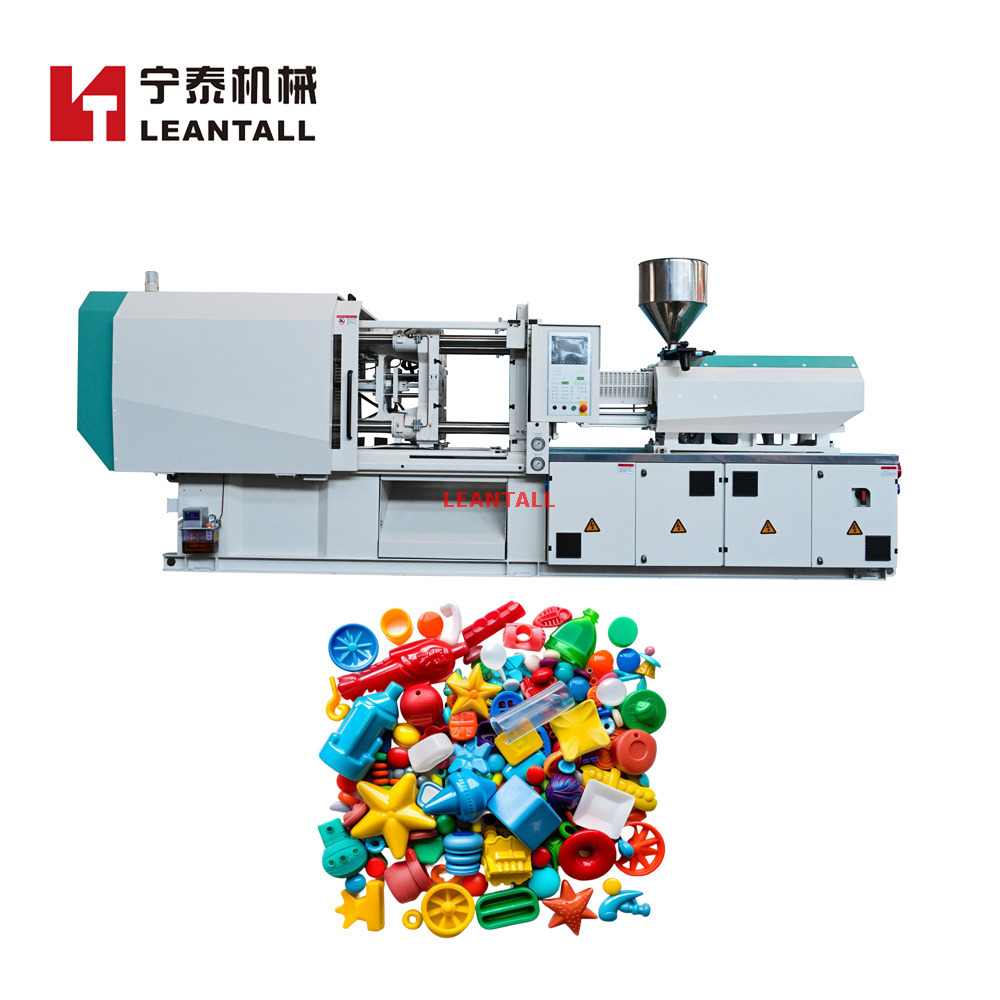

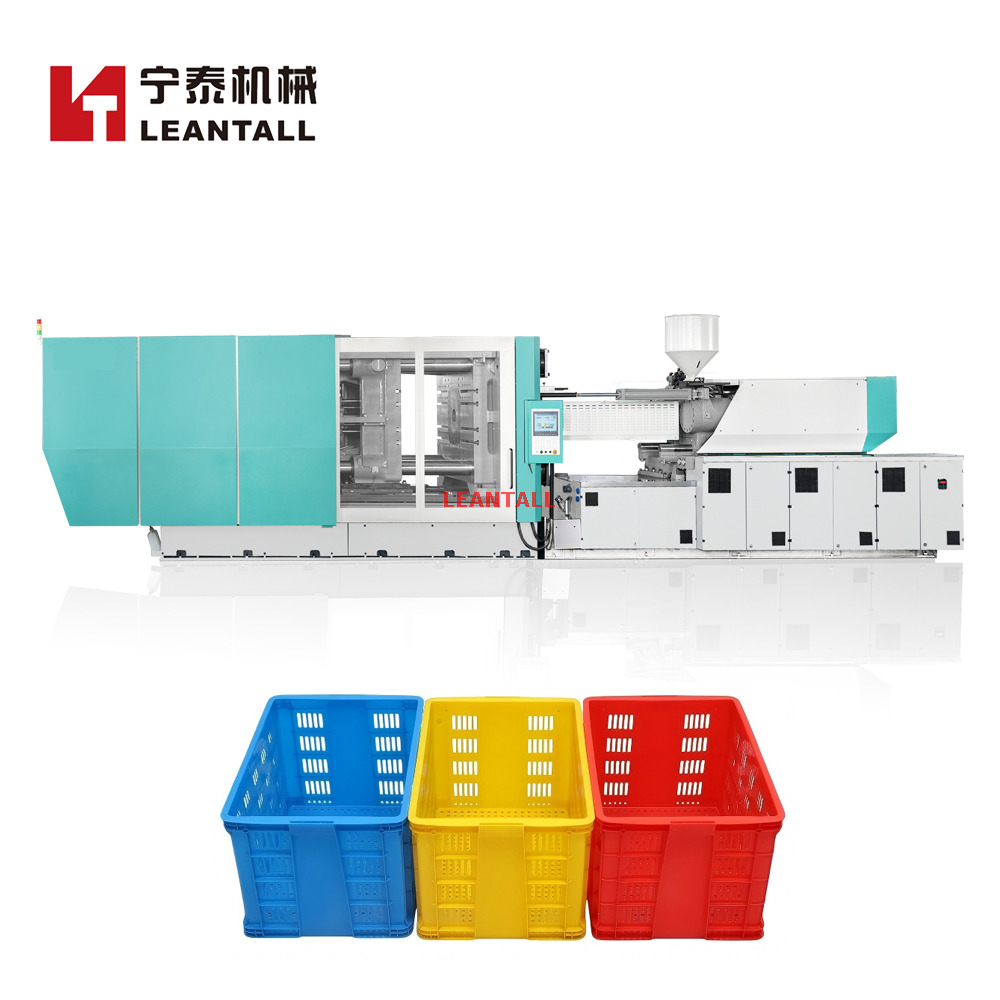

180 Ton Energy Saving Servo Motor Injection Molding Machine for Industrial Production
The 180 ton injection molding machine from Leantal Technology offers precision and flexibility for small plastic components. Compact yet powerful, it’s ideal for electronics, medical, and packaging applications. Equipped with a servo motor system, it delivers energy efficiency, stable performance, and fast cycle times. The intelligent control system ensures consistent molding quality and reduced production costs.
| Quantity: | |
|---|---|
NT180
Leantall
180T
Part | Name | Unit | 180 | ||
Injection Unit
| SCREW DIAMETER | mm | 42 | 45 | 50 |
SCREW L/D RATIO | L/D | 21.4 | 20 | 18 | |
INJECTION STROKE | mm | 225 | 225 | 225 | |
NJECTION SPEED | Mm/sec | 94 | 94 | 94 | |
SHOT VOLUME(THEORETICAL) | CM3 | 312 | 358 | 442 | |
INJECTION WEIGHT(PS) | g | 284 | 326 | 402 | |
INJECTION PRESSURE | Mpa | 218 | 190 | 154 | |
INJECTION RATE | cm⊃3;/sec | 130 | 149 | 184 | |
SCREW SPEED | rpm | 210 | |||
Clamping Unit
| CLAMP FORCE | Kn | 1800 | ||
OPEN STROKE | mm | 435 | |||
SPACE BETWEEN TIE BARS | mm×mm | 525X465 | |||
MAX.MOULD HEIGHT | mm | 550 | |||
MIN.MOULD HEIGHT | mm | 180 | |||
EJECTOR STROKE | mm | 129 | |||
EJECTOR FORCE | Kn | 46 | |||
EJECTOR NUMBER | N | 5 | |||
Others
| MAX.PUMP PRESSURE | Mpa | 16 | ||
SEVRO DRIVE POWER | Kw | 22 | |||
HEATING POWER | Kw | 9.9 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 5.4*1.4*2.3 | |||
MACHINE WEIGHT(ESTIMATE) | T | 5.4 | |||
A servo motor injection molding machine stands out for its core servo-driven tech. First, it's far more energy-efficient—saving 30%-50% power vs. ordinary motor models, cutting long-term operational costs. Second, its closed-loop servo control enables ultra-precise control of injection speed, pressure and position, minimizing plastic part defects and boosting quality consistency. Third, it runs stably with lower noise (50-60dB), improving workshop environment and extending machine lifespan. Lastly, it adapts flexibly to diverse plastics (PP, ABS) and complex parts, suiting both small-batch prototypes and large-scale production—ideal for industries like auto and electronics that demand high precision.
You don’t have room for large equipment. Our 180-ton vertical machine has a footprint of just [X] m², making it easy to install in limited spaces. The vertical mold stack also means you can add automated pick-and-place systems without extra floor space.
Spoons require smooth curves and thin handles. The machine’s high-precision screw and low-pressure injection system ensure even material distribution, preventing defects like thin spots or sink marks. The temperature-controlled mold keeps plastic cool quickly, so each spoon has a glossy finish and consistent shape.
You might produce different spoon designs. The intuitive control panel lets you adjust parameters for handle length, bowl size, or material type (PP, PS, or biodegradable plastics). Quick mold changes—thanks to the vertical clamp—mean you can switch between designs in minutes, ideal for small runs or custom orders.
Here’s the step-by-step: Plastic pellets melt in the horizontal barrel, then the screw injects the molten plastic into the vertical mold from the side. The 180-ton clamp holds the mold shut as the plastic cools. When the mold opens vertically, gravity helps the spoons fall onto a conveyor belt or collection tray—no need for complex ejector systems. You get clean, defect-free spoons, fast and efficiently.
Produce thousands of disposable spoons daily with minimal waste. The machine’s efficiency and small size make it ideal for high-volume, low-margin production.
For premium spoons with intricate designs, the precision molding ensures details like logos or patterns are sharp and clear. The vertical design also reduces stress on handles during ejection, preventing breakage.
Beyond spoons, use it for forks, knife handles, or small components like bottle caps. The compact size and versatility make it a smart investment for any small-part production.
You don’t need a large machine to make high-quality spoons. Our 180-ton compact vertical injection molding machine offers space efficiency, precision, and ease of use—everything you need for spoon production. Whether you’re a small business or a large manufacturer, it fits your workflow and budget. Upgrade today and see how a compact design can boost your productivity without compromising on quality.
