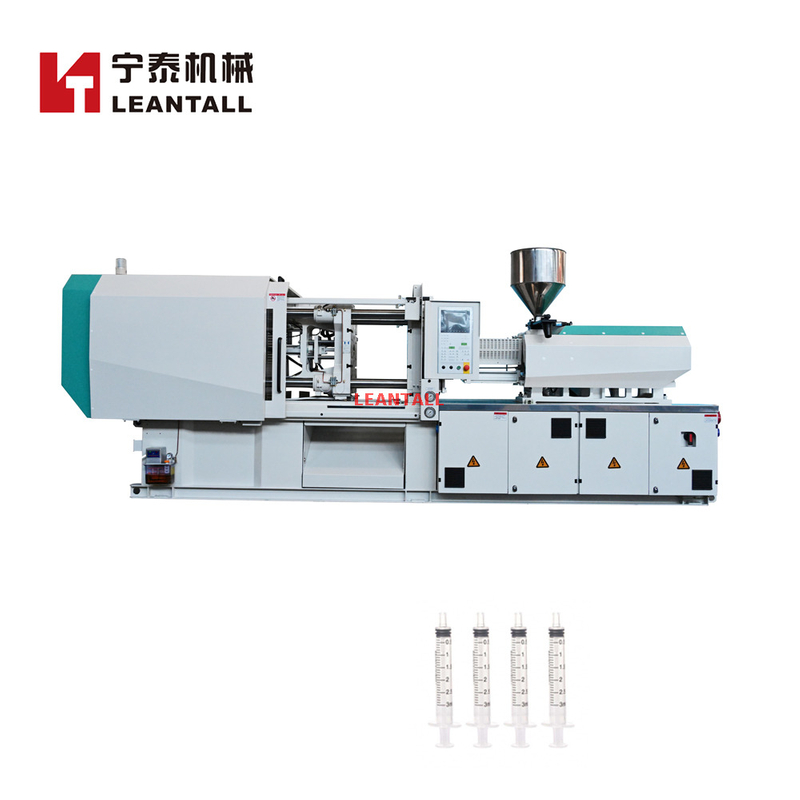

NT200
Leantall
200T
Overview
During operation, plastic pellets are fed, melted, and injected into the mold cavity under controlled pressure. After the mold is held to prevent shrinkage, the part is cooled and ejected automatically. This machine is ideal for manufacturing storage boxes, appliance covers, electronic components, automotive clips, and other medium-sized products. Optional robotic automation can be added for take-out and stacking, ensuring higher efficiency, lower labor, and consistent production quality.
Eliminates horizontal mold alignment issues through gravity-assisted part ejection, reducing mold wear by 40% and improving tool life by 200+ hours.
Enables simultaneous injection and ejection in multi-cavity molds, increasing output by 30% for complex cup designs (e.g., double-wall insulated cups with handles).
Integrates a 6-axis robotic arm with vision-based quality inspection, capable of sorting 150 cups per minute by size, color, or defect status.
Counterbalanced injection unit and rubber-mounted base reduce floor vibrations to <5μm, critical for maintaining dimensional accuracy in thin-walled containers.
Manufacturing hot/cold drink cups, smoothie bowls, and promotional event cups with UV-resistant additives for outdoor use.
Producing stackable measuring cups, leak-proof travel mugs, and modular kitchen storage containers with snap-fit lids.
Creating chemical-resistant specimen cups for laboratories, featuring tamper-evident seals and barcode-readable surfaces.
In-house tooling department specializing in vertical mold design, offering rapid prototyping (7-day turnaround) for unique cup profiles (tapered, square, or hexagonal shapes).
Advanced regenerative braking system recovers 20% of energy from hydraulic deceleration, lowering electricity costs by $0.05 per 1000 cups produced.
Intuitive 12-inch HMI with recipe storage (up to 100 product settings) and one-click startup, reducing operator training time to less than 2 hours.
Part | Name | Unit | 200 | ||
Injection Unit
| SCREW DIAMETER | mm | 45 | 50 | 55 |
SCREW L/D RATIO | L/D | 22.2 | 20 | 18.2 | |
INJECTION STROKE | mm | 250 | 250 | 250 | |
NJECTION SPEED | Mm/sec | 103 | 103 | 103 | |
SHOT VOLUME(THEORETICAL) | CM3 | 397 | 490 | 594 | |
INJECTION WEIGHT(PS) | g | 361 | 445 | 540 | |
INJECTION PRESSURE | Mpa | 221 | 179 | 148 | |
INJECTION RATE | cm⊃3;/sec | 163 | 202 | 244 | |
SCREW SPEED | rpm | 225 | |||
Clamping Unit
| CLAMP FORCE | Kn | 2000 | ||
OPEN STROKE | mm | 435 | |||
SPACE BETWEEN TIE BARS | mm×mm | 480X480 | |||
MAX.MOULD HEIGHT | mm | 550 | |||
MIN.MOULD HEIGHT | mm | 180 | |||
EJECTOR STROKE | mm | 135 | |||
EJECTOR FORCE | Kn | 46 | |||
EJECTOR NUMBER | N | 5 | |||
Others
| MAX.PUMP PRESSURE | Mpa | 16 | ||
SEVRO DRIVE POWER | Kw | 30 | |||
HEATING POWER | Kw | 12.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 5.4*1.45*2.1 | |||
MACHINE WEIGHT(ESTIMATE) | T | 5.5 | |||
