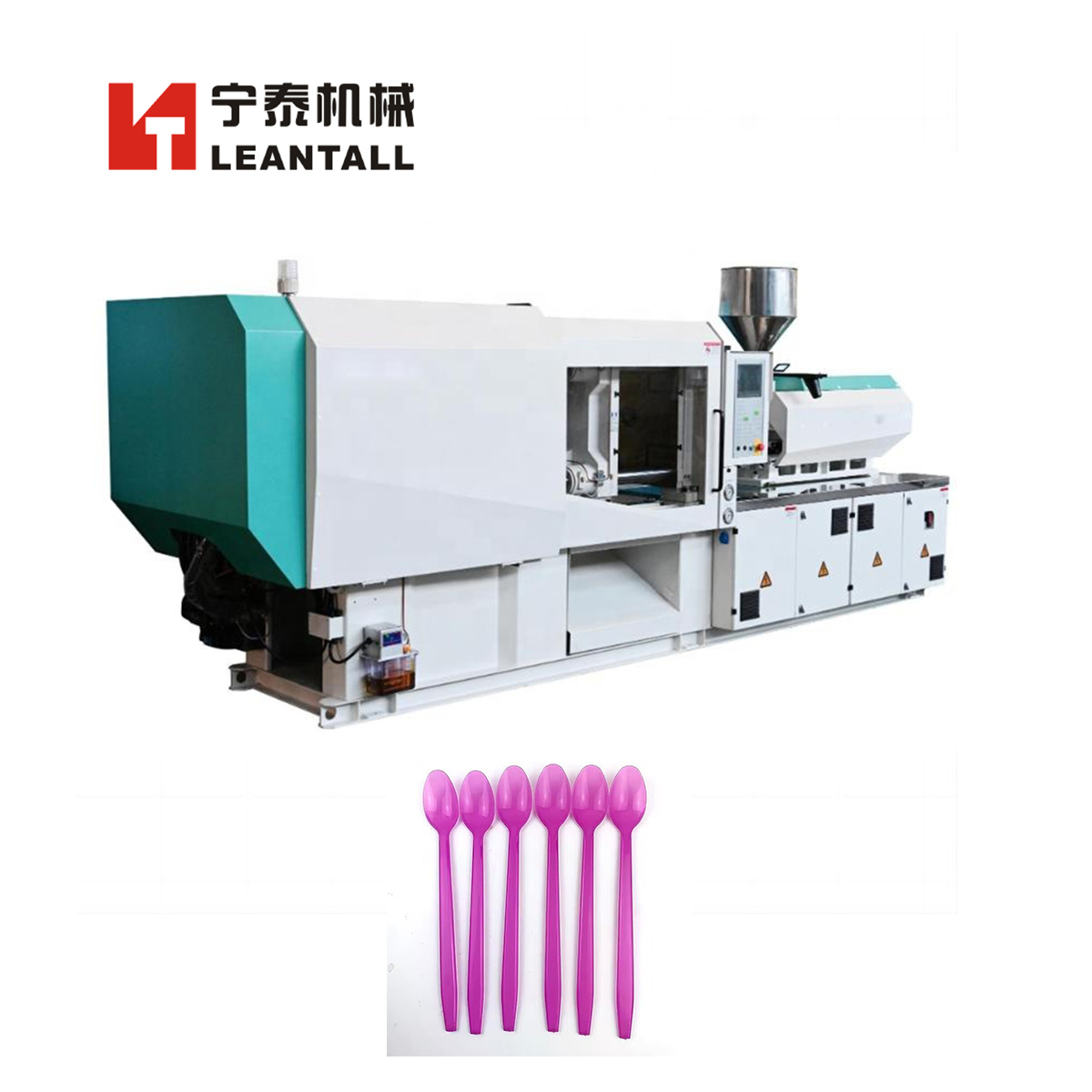

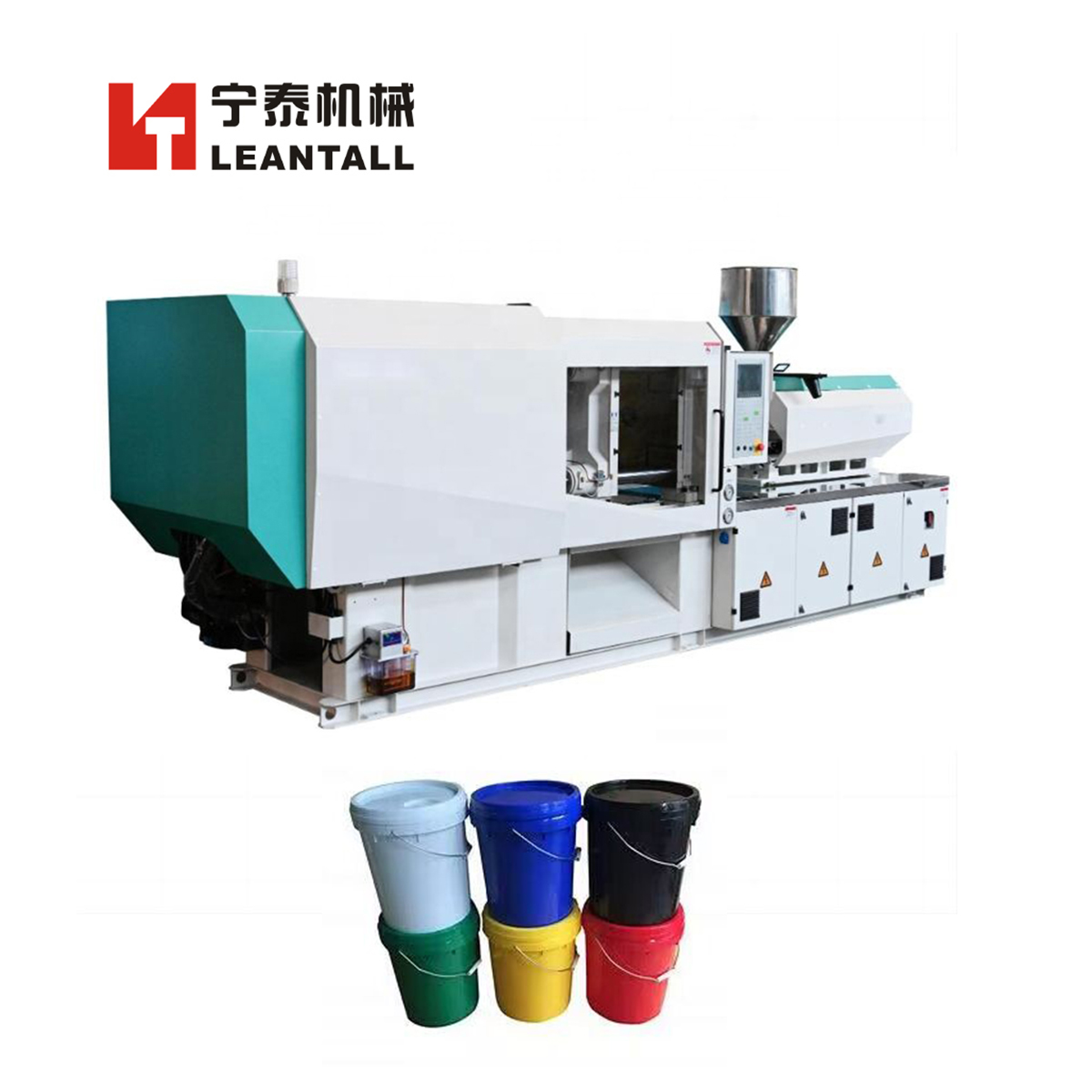

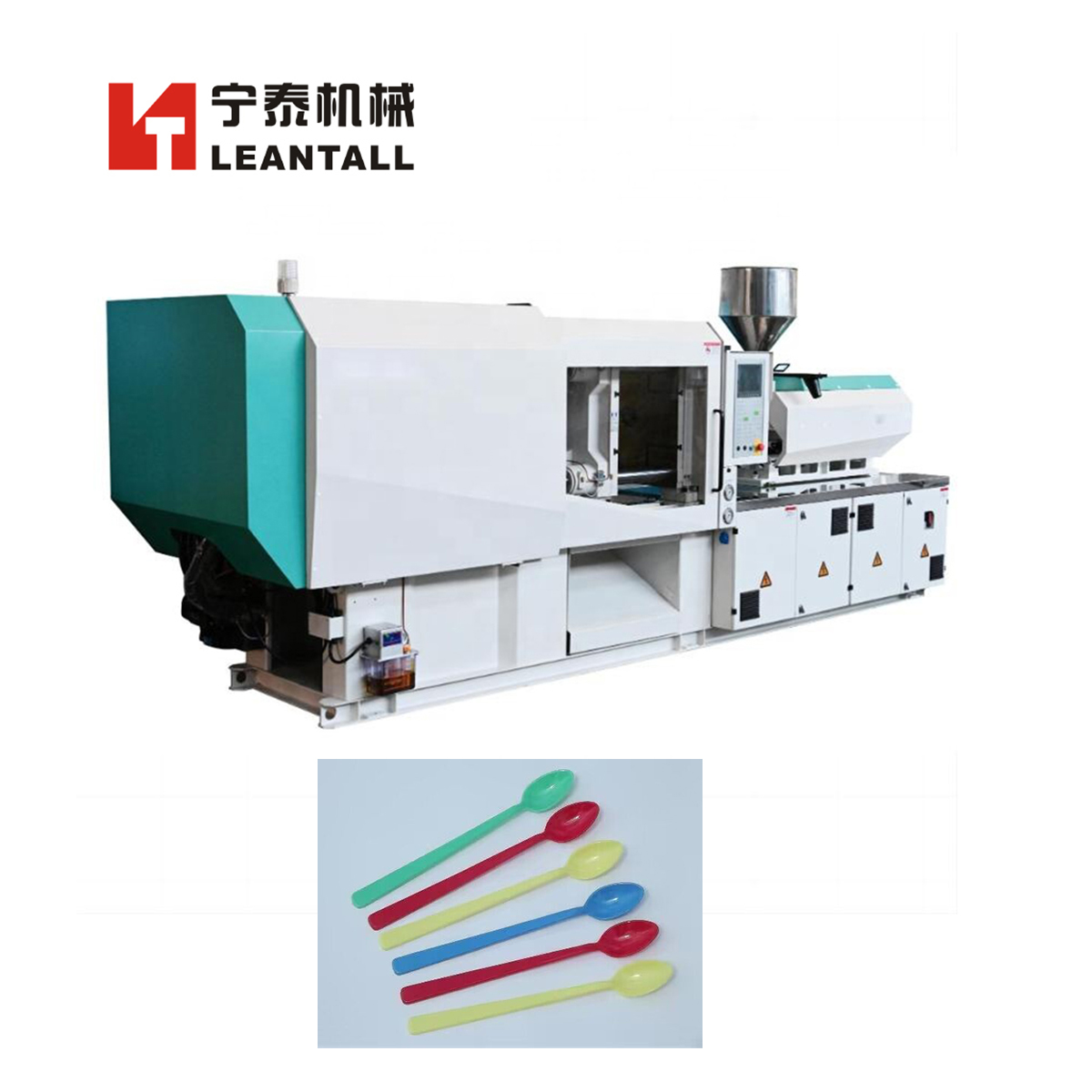

NT580
Leantall
580T
Technical Parameter
Part | Name | Unit | 580 | |||
Injection Unit
| SCREW DIAMETER | mm | 75 | 80 | 85 | 90 |
SCREW L/D RATIO | L/D | 22.7 | 21.3 | 20 | 19 | |
INJECTION STROKE | mm | 390 | 390 | 390 | 390 | |
NJECTION SPEED | Mm/sec | 88 | 88 | 88 | 88 | |
SHOT VOLUME(THEORETICAL) | CM3 | 1723 | 1960 | 2213 | 2481 | |
INJECTION WEIGHT(PS) | g | 1568 | 1783 | 2013 | 2257 | |
INJECTION PRESSURE | Mpa | 186 | 164 | 145 | 129 | |
INJECTION RATE | cm³/sec | 388 | 442 | 499 | 560 | |
SCREW SPEED | rpm | 136 | ||||
Clamping Unit
| CLAMP FORCE | Kn | 5800 | |||
OPEN STROKE | mm | 850 | ||||
SPACE BETWEEN TIE BARS | mm×mm | 860X810 | ||||
MAX.MOULD HEIGHT | mm | 830 | ||||
MIN.MOULD HEIGHT | mm | 330 | ||||
EJECTOR STROKE | mm | 226 | ||||
EJECTOR FORCE | Kn | 150 | ||||
EJECTOR NUMBER | N | 13 | ||||
Others
| MAX.PUMP PRESSURE | Mpa | 16 | |||
SEVRO DRIVE POWER | Kw | 55 | ||||
HEATING POWER | Kw | 33.5 | ||||
MACHINE DIMENSION(L*W*H) | m×m×m | 8.6*2.3*2.6 | ||||
MACHINE WEIGHT(ESTIMATE) | T | 21 | ||||
MARKET
FAQ
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
Q: What is the standard of the package?
A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
