NT750
Leantall
750T
Description

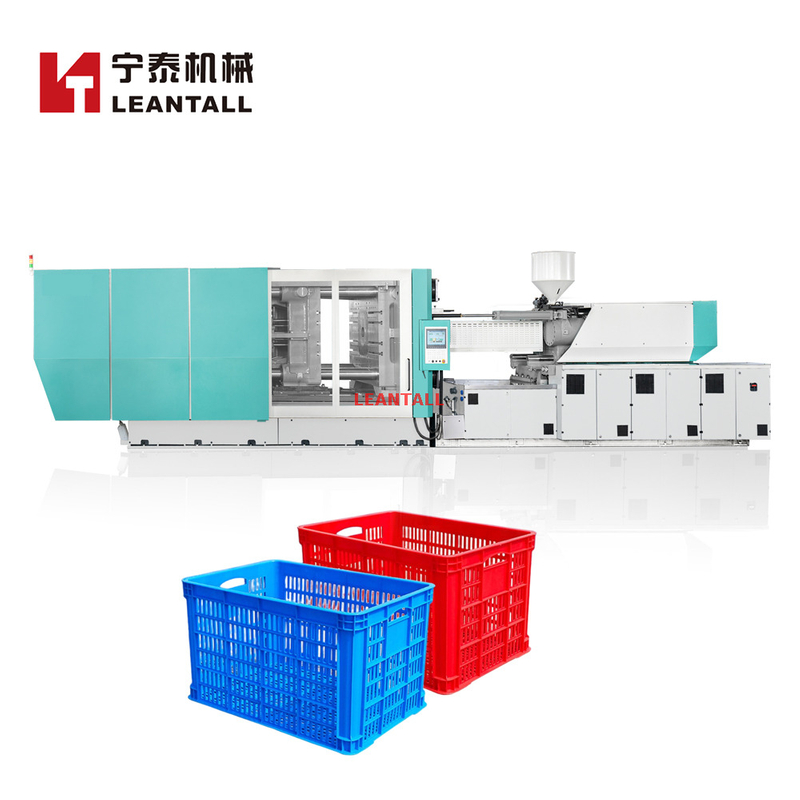

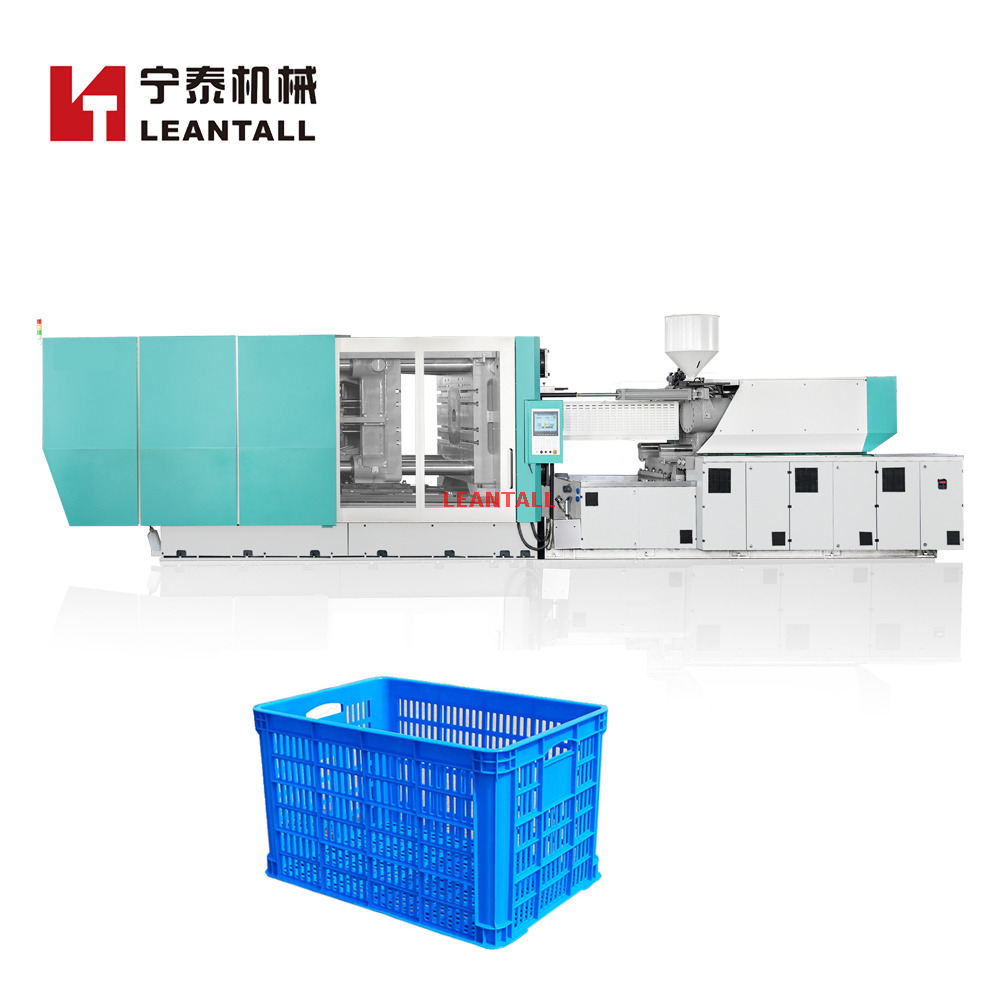

Ideal for producing industrial containers, large crates, furniture panels, and automotive parts, the 750T machine supports heavy molds with consistent precision. Optional robotic arms can handle automatic part take-out and stacking, improving production speed and reducing manual labor. Its durable construction and advanced control system make it suitable for continuous high-volume production while maintaining uniform product quality across all cycles.
Technical Parameter
Part | Name | Unit | 750 | |||
Injection Unit
| SCREW DIAMETER | mm | 90 | 95 | 105 | 110 |
SCREW L/D RATIO | L/D | 23 | 22 | 20 | 19 | |
INJECTION STROKE | mm | 460 | 460 | 460 | 460 | |
NJECTION SPEED | Mm/sec | 81 | 81 | 81 | 81 | |
SHOT VOLUME(THEORETICAL) | CM3 | 2926 | 3260 | 3983 | 4371 | |
INJECTION WEIGHT(PS) | g | 2662 | 2966 | 3624 | 3977 | |
INJECTION PRESSURE | Mpa | 195 | 175 | 143 | 131 | |
INJECTION RATE | cm⊃3;/sec | 515 | 574 | 701 | 769 | |
SCREW SPEED | rpm | 109 | ||||
Clamping Unit
| CLAMP FORCE | Kn | 7500 | |||
OPEN STROKE | mm | 1000 | ||||
SPACE BETWEEN TIE BARS | mm×mm | 1020X970 | ||||
MAX.MOULD HEIGHT | mm | 960 | ||||
MIN.MOULD HEIGHT | mm | 400 | ||||
EJECTOR STROKE | mm | 340 | ||||
EJECTOR FORCE | Kn | 210 | ||||
EJECTOR NUMBER | N | 17 | ||||
Others
| MAX.PUMP PRESSURE | Mpa | 16 | |||
SEVRO DRIVE POWER | Kw | 45+37 | ||||
HEATING POWER | Kw | 46 | ||||
MACHINE DIMENSION(L*W*H) | m×m×m | 11*2.4*3.2 | ||||
MACHINE WEIGHT(ESTIMATE) | T | 35 | ||||
MARKET
FAQ
Q: What is the product range?
A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc.
Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for field installation and training.
Q: What is the delivery time(equipment production time)?
A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment.
Q: Do you also have the source for molds and spare parts?
A: Yes, we can offer competitive quality and reasonable prices. Customized as required.
Q: What is the standard of the package?
A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
