In the competitive plastics manufacturing landscape, "energy-saving" is often treated as a marketing buzzword rather than an engineering reality. Vendors frequently promise miraculous efficiency gains to attract buyers. Yet, few manufacturers actually understand the underlying physics driving these numbers. While manufacturers claim up to 60% energy reductions using modern equipment, plant managers need solid proof. You must know exactly where these savings originate within the production cycle. Without clear engineering data, procurement decisions remain risky and speculative. Upgrading to a servo system fundamentally changes a facility's energy fingerprint. It eliminates idle hydraulic losses and radically stabilizes process precision. This guide breaks down the verifiable mechanics of servo-driven efficiency. We provide actionable insights to support your next equipment procurement decisions.
Targeted Reductions: Energy savings do not occur equally; they are concentrated in the cooling and holding phases where servo motors eliminate the traditional hydraulic "base load."
Precision Equals Yield: Closed-loop servo control maintains pressure fluctuations within ±0.5 bar, reducing part warping and the hidden costs of material waste.
Secondary Cost Impacts: Servo systems lower hydraulic oil operating temperatures by approximately 10°C, drastically reducing the demand on facility cooling systems and extending oil life.
Operational Evaluation: When evaluating options, buyers should factor in cycle time compression (especially for thin-walled products) and long-term ESG compliance alongside the machine's process capabilities.
Energy consumption in plastics manufacturing follows a predictable mathematical model. We call this the Performance Characteristic Line (PCL) model. The PCL dictates a simple equation. Total energy consumption equals variable load plus base load. Variable load represents the active energy pushing plastic into a mold. Base load represents system idling. Think of base load as the electricity burned while the machine does absolutely nothing. Standard hydraulic machines carry disproportionately high base loads. They often consume up to 75% of total power during idle times.
You must break down cycle consumption to understand this drain. Industry benchmarks reveal a consistent power distribution across different phases. Plastification requires the most energy. Heating the barrel follows closely. Clamping and injection require less relative power.
Production Phase | Average Power Consumption (%) | Activity Description |
|---|---|---|
Plastification | ~48% | Melting and preparing the raw plastic resin. |
Barrel Heating | ~17% | Maintaining set temperatures across heating zones. |
Clamping | ~12% | Applying force to keep the mold securely closed. |
Injection | ~11% | Pushing the molten plastic into the mold cavity. |
Other Moves | ~12% | Ejection, core pulling, and mechanical carriage movements. |
The traditional hydraulic flaw explains the massive base load problem. Standard setups use fixed-displacement pumps. These are also known as quantitative pumps. Standard asynchronous motors drive these pumps continuously. They run at maximum RPMs regardless of actual process demand. Excess hydraulic oil hits a system bottleneck. The system forces this unused oil through overflow valves. It dumps the fluid back into the main tank. This continuous cycle generates massive friction. It wastes 36% to 68% of generated energy as sheer heat. You are essentially paying for electricity to heat your hydraulic fluid unnecessarily.

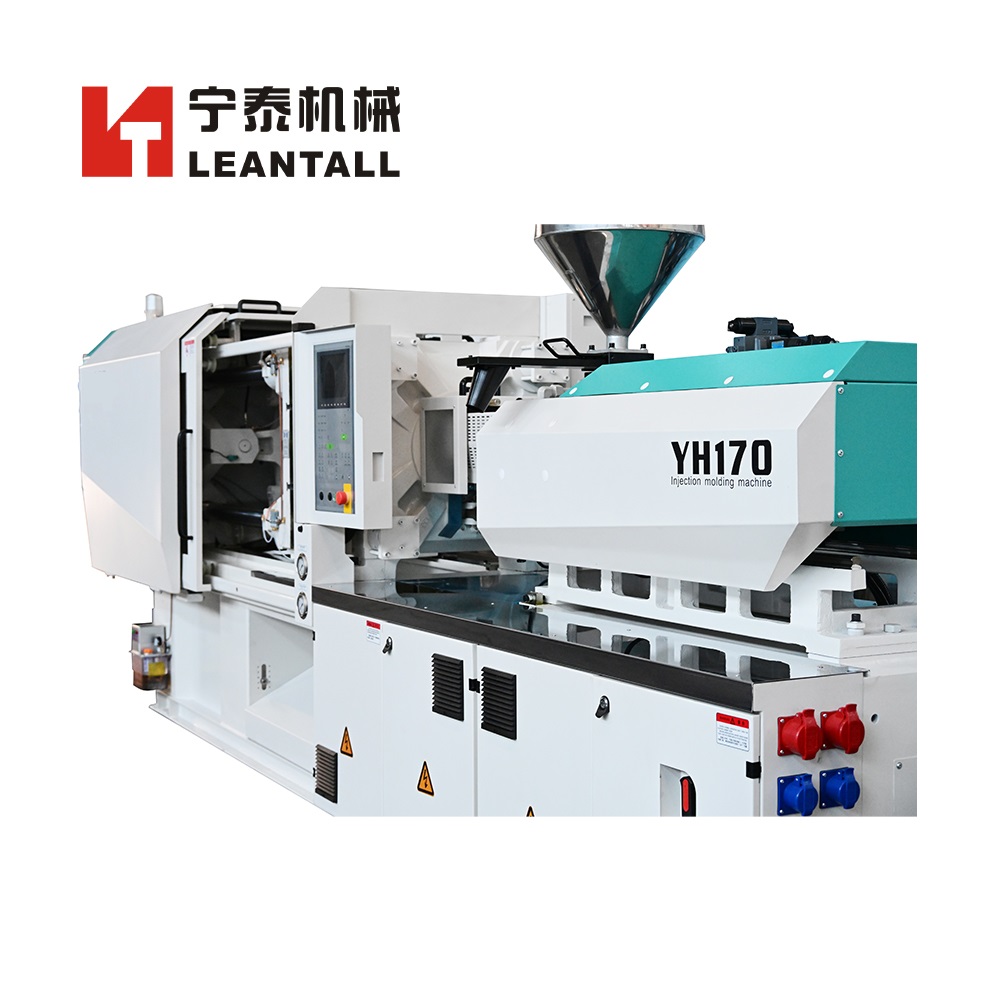

Upgrading to a servo-driven injection molding machine changes this wasteful dynamic completely. The core solution revolves around on-demand power delivery. Traditional systems rely on basic PQ valve control to manage oil flow. Modern servo setups introduce highly responsive closed-loop control.
The system places pressure sensors directly in the hydraulic lines. These sensors send real-time feedback to the servo drive. The servo motor then delivers exact RPMs. It matches the required flow and pressure for that specific millisecond. The motor spins only as fast as necessary. When demand drops, the motor speed drops instantly. This eliminates the overflow problem entirely.
You see the most dramatic energy reductions during specific process phases. The savings do not happen uniformly across the cycle. They concentrate heavily in two areas:
Cooling Phase: The cooling phase requires zero hydraulic movement. The plastic simply sits inside the mold hardening. Traditional pumps keep spinning at full speed here. Servo motors react differently. They virtually stop rotating entirely. They draw nearly zero electricity during this time.
Holding Phase: The holding phase requires high pressure but minimal actual oil flow. Traditional pumps generate excess flow during this step. Servo motors drastically slow down. They maintain the exact pressure required without pushing unneeded fluid. This nearly eliminates energy draw when traditional pumps run at full RPM.
High-speed responsiveness sets these modern motors apart. Servo motors showcase extreme operational agility. They execute 0-100% pressure changes in under 30 milliseconds. Standard hydraulic systems suffer from inherent mechanical lag. They take much longer to build and release pressure. Rapid acceleration and deceleration outstrip standard hydraulic performance. This agility creates a smoother, faster, and highly efficient manufacturing process.
Upgrading to a servo injection molding machine affects far more than electricity consumption. Buyers often focus solely on utility savings. They miss the broader operational impacts. You should evaluate secondary efficiency metrics to understand the full effect of servo technology.
Cycle Time Compression: Faster response curves reduce overall cycle times noticeably. The motor reaches target pressures in milliseconds. The machine transitions between phases instantly. This speed becomes a critical Key Performance Indicator (KPI) for specific applications. High-volume, thin-walled packaging production benefits immensely. A fraction of a second saved per cycle generates major daily output increases.
Precision and Quality Control (Yield): Closed-loop control stabilizes system repeatability. Many advanced systems maintain precision within 0.3%. The motor prevents random pressure spikes during injection. This stability maintains consistent part weight. It reduces material warping inside the mold. You see fewer rejected parts on the inspection line. Eliminating defects reduces the hidden costs of material waste and manual rework. Higher yield directly improves process stability.
Secondary Facility Savings: The energy efficiency ripples throughout your entire plant infrastructure. Removing the overflow friction prevents your hydraulic oil from overheating. Facilities report an average 10°C drop in oil operating temperatures. This temperature drop profoundly impacts your industrial chillers. It reduces the thermal load on cooling towers by up to 30%. Your cooling equipment consumes less electricity and requires less maintenance.
Maintenance and Lifespan: High heat degrades hydraulic fluid rapidly. Lower operating temperatures prevent premature chemical breakdown. You experience significantly less oil shear. The fluid maintains its viscosity much longer. Cooler oil also protects your internal seals and O-rings. This extends the working lifespan of the machine. It drastically reduces environmental leakage risks and costly downtime.
When optimizing your primary Injection Molding Machine fleet, you face several procurement paths. You must navigate implementation realities, shortlist technologies, and manage operational risk carefully.
Many plant managers consider retrofitting older units before buying new equipment. You generally encounter two primary retrofit options. The first involves Variable Frequency Drives (VFDs). The second involves full servo motor retrofits.
Traditional VFD retrofits represent the simplest entry point. You attach a frequency converter to the existing asynchronous motor. This slows the motor down during idle phases. However, VFDs carry severe operational penalties. They require constant manual parameter adjustments. Operators must recalibrate the drive every time they change a mold. More importantly, VFDs struggle with rapid acceleration. They introduce noticeable lag into the system. This directly impacts and lengthens your production cycle times. You may reduce energy use, but you also reduce production responsiveness.
Full servo retrofits replace the old motor and pump entirely. They introduce a true closed-loop system. Acknowledge the greater implementation complexity of this approach. However, you must validate this against operational reality. Full servo retrofits carry zero production cycle penalties. The machine maintains its original speed or runs even faster. The yield improvements and process stability gains often justify the more involved upgrade path.
If you decide to purchase new equipment, you must choose between different drive architectures. The market primarily divides between all-electric models and hybrid servo-hydraulic models.
Machine Architecture | Core Strengths | Operational Limitations |
|---|---|---|
All-Electric | Maximum precision. Zero oil leaks. Extremely quiet operation. Ideal for medical clean-room environments. | Struggles with ultra-high torque requirements. More demanding upfront specification work. Limited core-pulling capabilities. |
Servo-Hydraulic Synergy (Hybrid) | Combines heavy clamping force of hydraulics with the precision and energy efficiency of servo drives. | Still utilizes hydraulic fluid. Requires periodic oil maintenance and chiller support. |
All-Electric machines operate entirely via direct-drive servo motors. They contain no hydraulic oil. They stand as the best option for maximum precision. They dominate medical manufacturing and clean-room environments. However, they can struggle with ultra-high torque requirements. Thick-walled parts or massive automotive components often overwhelm their mechanics.
Servo-Hydraulic synergy presents the pragmatic middle ground. We call this the hybrid option. It handles heavy-duty applications perfectly. It leverages the unmatched clamping force of traditional hydraulics. Simultaneously, it utilizes the precision and energy efficiency of servo drives for injection and recovery. For most general-purpose manufacturing, this hybrid architecture delivers the best overall balance.
Procurement and plant managers must structure actionable decision frameworks. You cannot rely on broad vendor claims. You should calculate accurate, facility-specific performance models.
First, assess the complete "Efficiency Package." Remind your buyers about system boundaries. The injection molding equipment itself accounts for roughly 50% of the energy used in a typical molding cell. You miss major savings if you ignore peripheral equipment. True facility evaluations should specify intelligent mold temperature controllers. You must also include barrel insulation jackets in your upgrades. Uninsulated barrels radiate massive amounts of heat into the factory air. Installing basic thermal jackets can cut localized heating losses by 50%. A holistic approach guarantees maximum operational improvement.
Second, focus on quantifying ESG goals. Corporate sustainability mandates grow stricter every year. Stakeholders demand verifiable environmental metrics. Provide a solid framework for converting projected kilowatt-hour (kWh) savings into measurable CO2 emission reductions. Reducing energy consumption directly lowers your carbon footprint. Document these reductions carefully. They satisfy corporate sustainability targets and simplify ESG reporting requirements. Using clean technology positions your company favorably for green manufacturing contracts.
Finally, address power quality prerequisites. You must include skeptical-friendly implementation risks in your planning. Servo drives remain incredibly sensitive to voltage fluctuations. Poor electrical infrastructure causes erratic motor behavior. Facilities must audit their power quality rigorously. You must ensure a stable, clean power supply before installation begins. Identify harmonic distortion or voltage drops early. Installing line reactors or active harmonic filters might be necessary. Proactive electrical audits prevent premature electrical failure and ensure seamless commissioning.
Investing in upgraded drive technology is no longer a niche upgrade. It stands as a practical requirement for competitive manufacturing operations. Relying on outdated quantitative pumps steadily increases hidden base load waste. As electricity costs climb globally, inefficient machinery becomes an increasingly difficult operational burden.
Look past localized "percentage saved" claims on vendor brochures.
Calculate true operational effects based on cycle time reductions, defect elimination, and secondary utility savings.
Address your entire production cell, including barrel insulation and mold temperature control, for maximum efficiency.
Audit your facility's electrical stability before authorizing new equipment installations.
Do not wait for your legacy equipment to fail completely. Consult an engineering specialist today to audit your current base load. A professional energy audit will help quantify the reduction potential of a targeted servo upgrade based on your actual production data.
A: Yes, they can process both thermoplastics and thermosetting plastics effectively. The underlying plastification mechanics remain exactly the same as traditional machines. Only the drive system pushing the hydraulic fluid changes. You do not need to alter your resin selection or fundamentally change your established mold designs.
A: Servo motors themselves are generally maintenance-free due to their brushless designs. However, the associated closed-loop sensors and digital drives require clean operating environments. You must provide a stable power supply and keep electrical cabinets free of dust to prevent premature electrical failure.
