| Quantity: | |
|---|---|

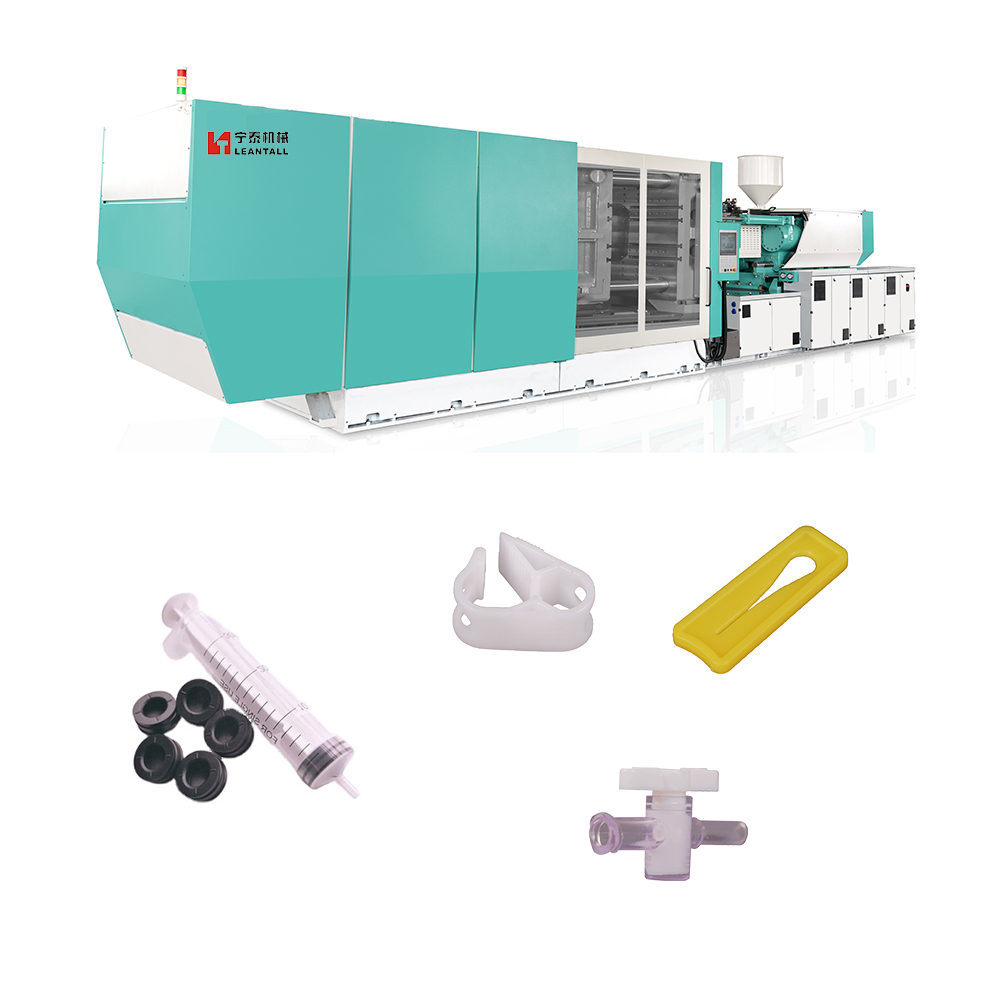

NT200
LEANTALL
8477101090
Technical Parameter | |||||
Part | Name | Unit | NT200 | ||
Injection unit | SCREW DIAMETER | mm | 45 | 50 | 55 |
SCREW L/D RATIO | L/D | 22.2 | 20 | 18.2 | |
SHOT VOLUME(THEORETICAL) | CM3 | 397 | 490 | 594 | |
INJECTION WEIGHT(PS) | g | 361 | 445 | 540 | |
INJECTION PRESSURE | Mpa | 221 | 179 | 148 | |
INJECTION RATE | cm⊃3;/sec | 192 | 237 | 287 | |
PLASTICZATION CAPACITY(PS) | g/sec | 26 | 36 | 48 | |
INJECTION STROKE | mm | 250 | |||
INJECTION SPEED | Mm/sec | 121 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 2000 | ||
OPEN STROKE | mm | 460 | |||
SPACE BETWEEN TIE BARS | mm×mm | 520X480 | |||
MAX.MOULD HEIGHT | mm | 550 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 129 | |||
EJECTOR FORCE | Kn | 61 | |||
EJECTOR NUMBER | N | 5 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 29 | |||
HEATING POWER | Kw | 9.9 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 5.4*1.4*2.1 | |||
MACHINE WEIGHT(ESTIMATE) | T | 5.4 | |||
1. Q: What is the product range?
2. A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
3. Q: Where is your main selling market?
4. A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
5. Q: Will you offer field installation and operator training at the buyer's factory?
6. A: Yes, we will arrange our skilled engineers for filed installation and training.
7. Q: What is the delivery time(equipment production time)?
8. A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
9. Q: Do you also have source for molds and spare parts?
10. A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
11. Q: What is the standard of package?
12. A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
