LEANTALL

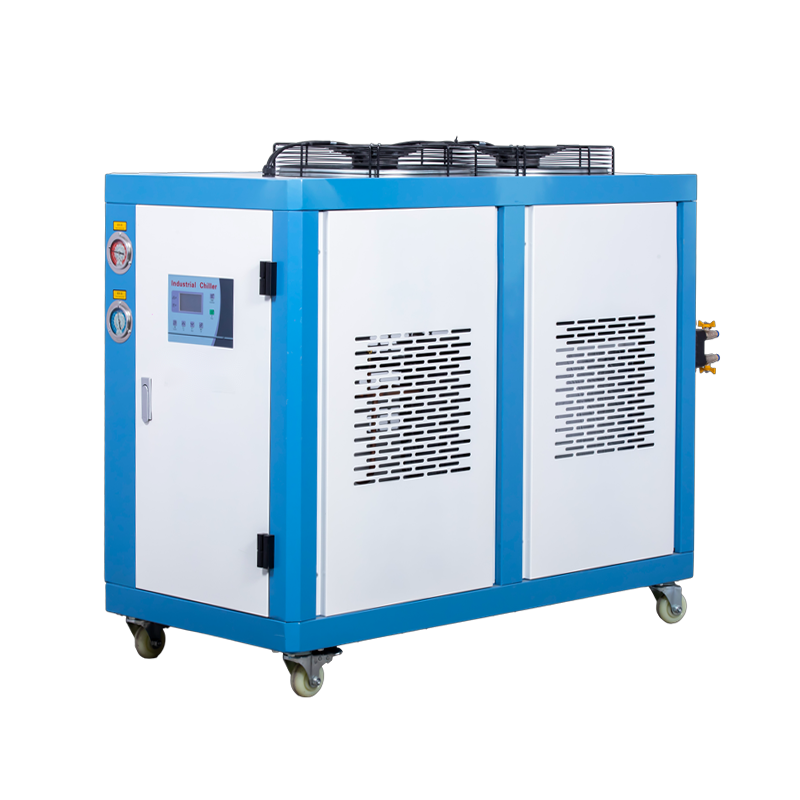

Industrial Chiller
Air-cooled chillers are specifically designed to dissipate heat directly into the surrounding atmosphere through the utilization of fans. This method of heat transfer not only maximizes cooling efficiency but also positions these chillers as a preferred option across a variety of applications, ranging from industrial to commercial and residential settings. A significant advantage of air-cooled chillers is their exceptional portability. These units can be conveniently relocated as operational demands evolve, making them particularly suitable for temporary installations or mobile applications that require dependable cooling solutions. This adaptability ensures that organizations can swiftly respond to changing needs while maintaining optimal performance. | |
 | |
Technical Parameter
Model | Air Cooled Chiller | |||||||
HC-5A | HC-10A | HC-15A | HC-20A | HC-25A | HC-30A | HC-40A | HC-50A | |
Compressor power ( kw ) | 3.7 | 7.4 | 11.1 | 14.8 | 18.5 | 22.2 | 29.6 | 37 |
Refrigeration capacity ( kal/hr ) | 12040 | 25200 | 37000 | 45000 | 54000 | 74000 | 90000 | 108000 |
Refrigerants | R22 | |||||||
Compressor | （ All-close scroll ） | |||||||
Water tank cubage(L) | 60 | 120 | 180 | 180 | ||||
Water pump power ( kw ) | 0.37 | 0.75 | 1.0 | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
Freeze water flow rate (L/min ) | 115 | 200 | 330 | 330 | 330 | 420 | 420 | 500 |
Cooling water pipe ( inch ) | 1 | 1.5 | 2 | 2 | 2 | 2.5 | 2.5 | 3 |
External dimension ( mm ) | 1300*820*1580 | 1770*920*1820 | 1830*1110*2100 | 1740*1740*2190 | 1740*1740*2190 | 1900*2100*2250 | 1900*2450*2250 | 1900*2450*2250 |
Weigh ( kg ) | 250 | 400 | 520 | 700 | 780 | 860 | 1000 | 1120 |
Performance Characteristic:
● Air-cooled chillers are designed to dissipate heat directly into the surrounding air using fans, making them a popular choice for many applications.
●Operational Flexibility: They can be easily relocated if needed and are ideal for temporary or mobile applications due to their portability.
About Company Advantages:
1) One-stop service : providing a complete range of equipment, material or technical services that customer might require for syringe production.
2) Our machine is of high efficiency and stability. Its technology and performance can reach international advanced level.
3) 20-year experience in designing, researching & developing, manufacturing the
equipment.
4) Professional sales team, providing 7x 24 hours service.
5) Overseas after-sales service, skilled engineers will go to install and debug the machine at buyer’s location.
6) Production manager's theoretical and practical training solution, or headhunting service.
7) An intelligent production management system can be customized to reduce labor consumption and improve production efficiency.
8）Provide drawing or consulting services for the structure and function of products related to medical projects.
