LEANTALL

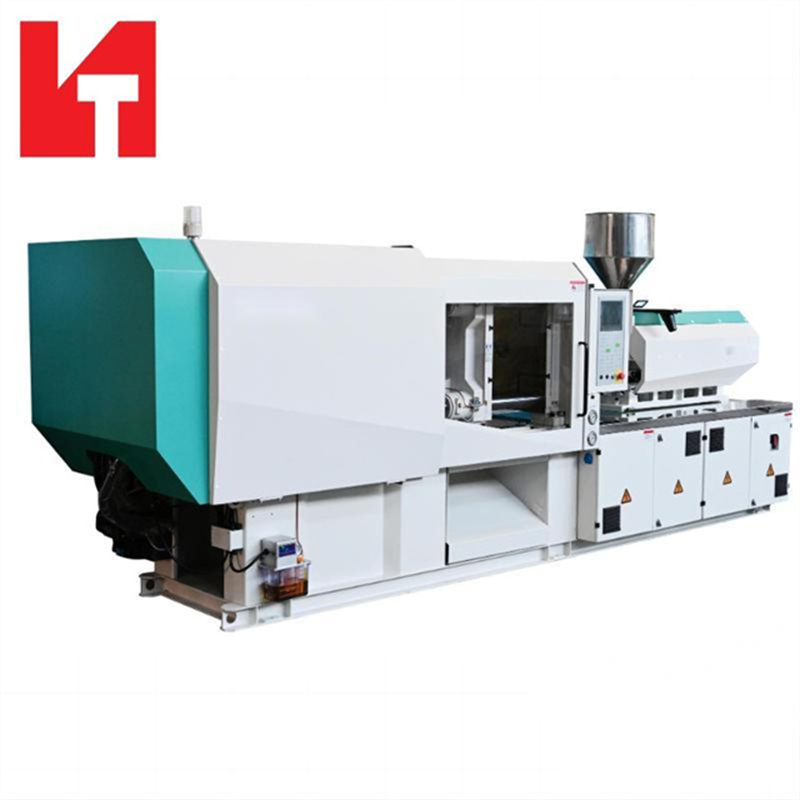

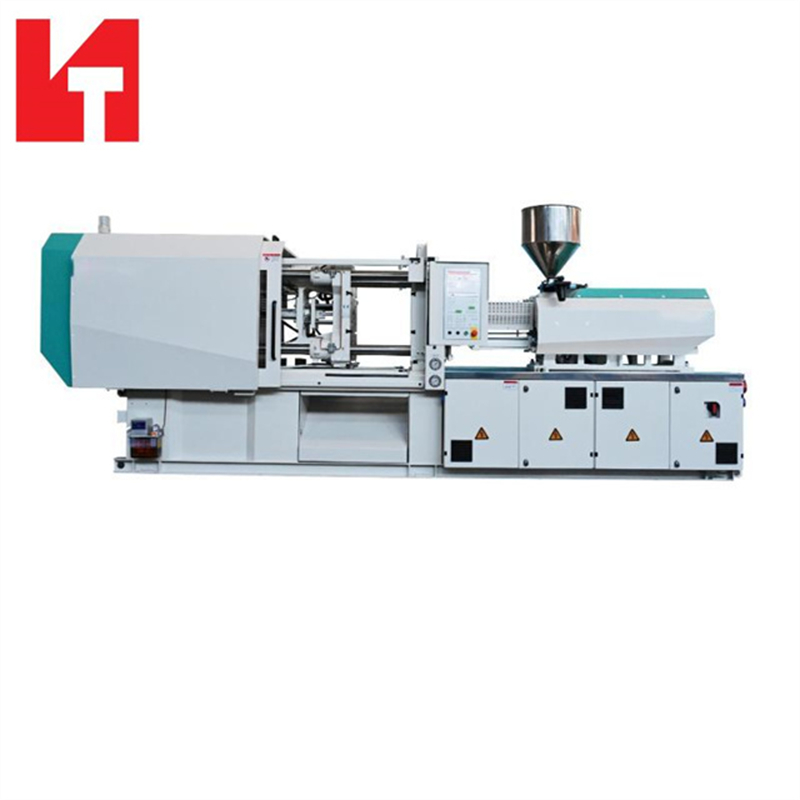

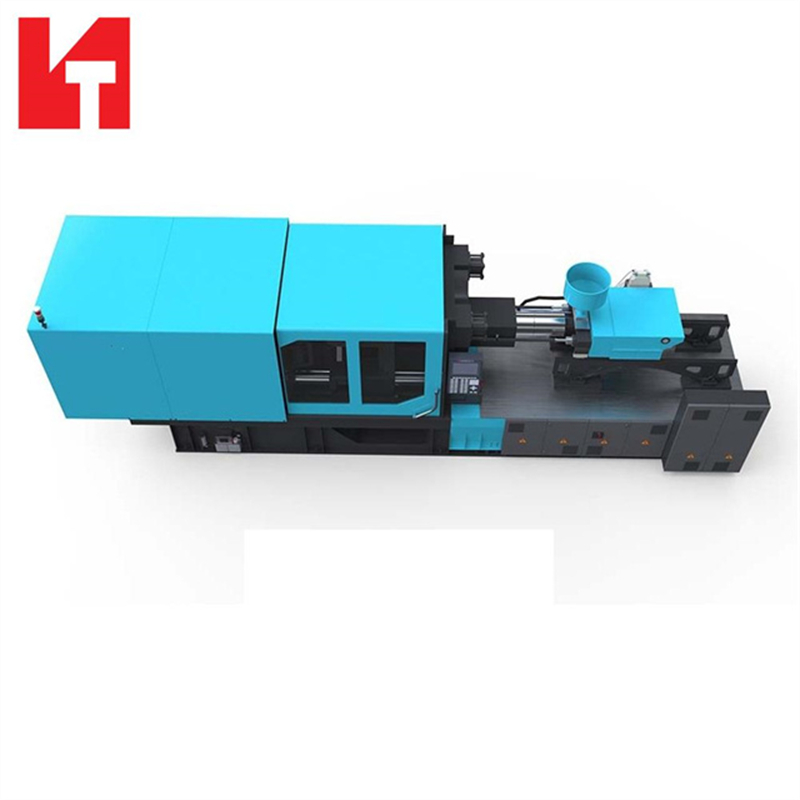

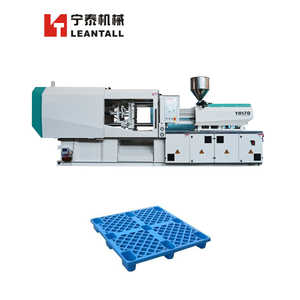

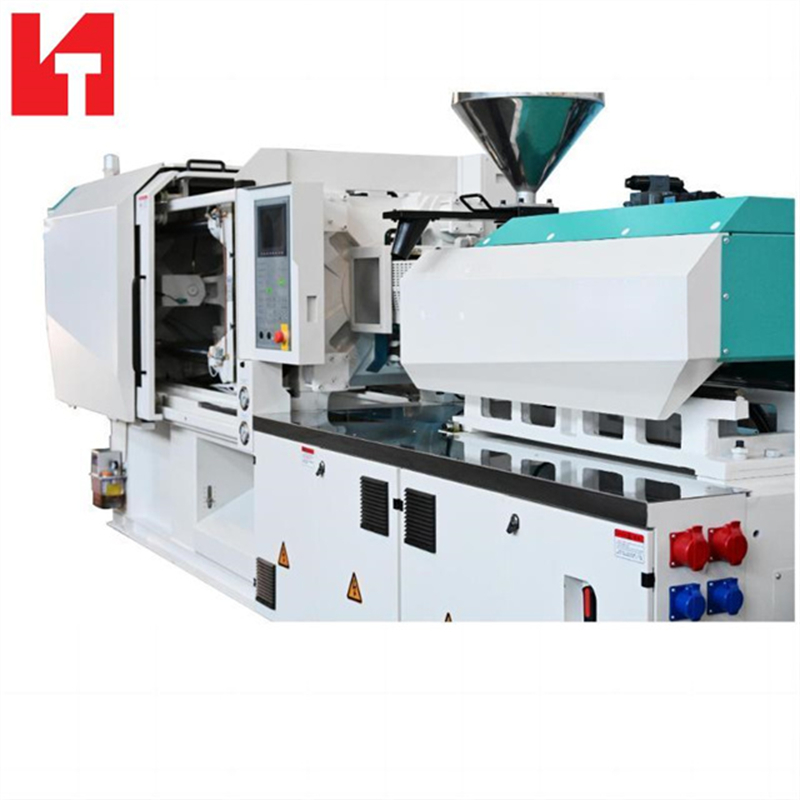

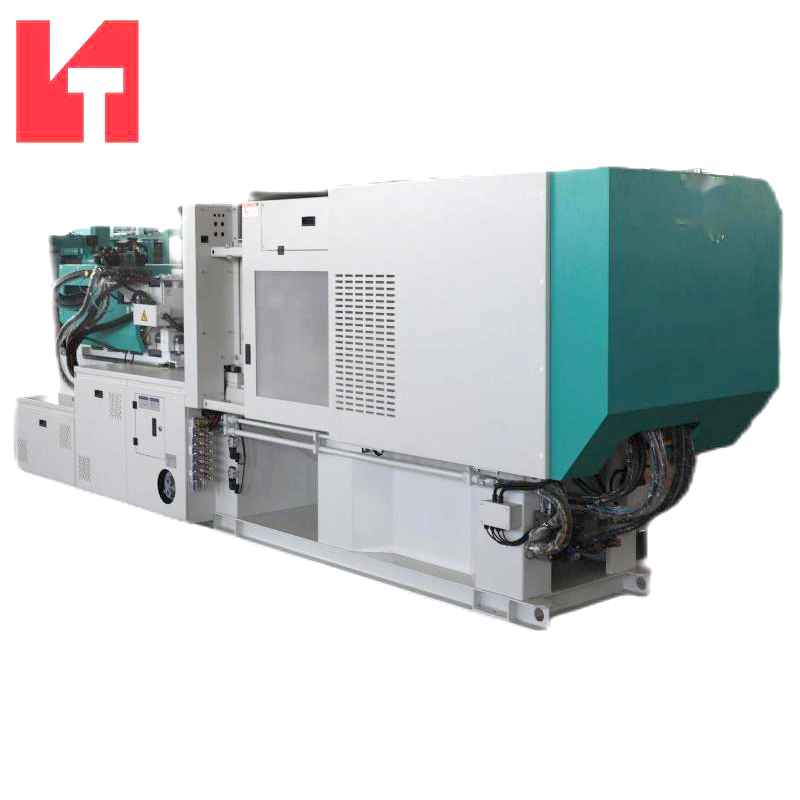

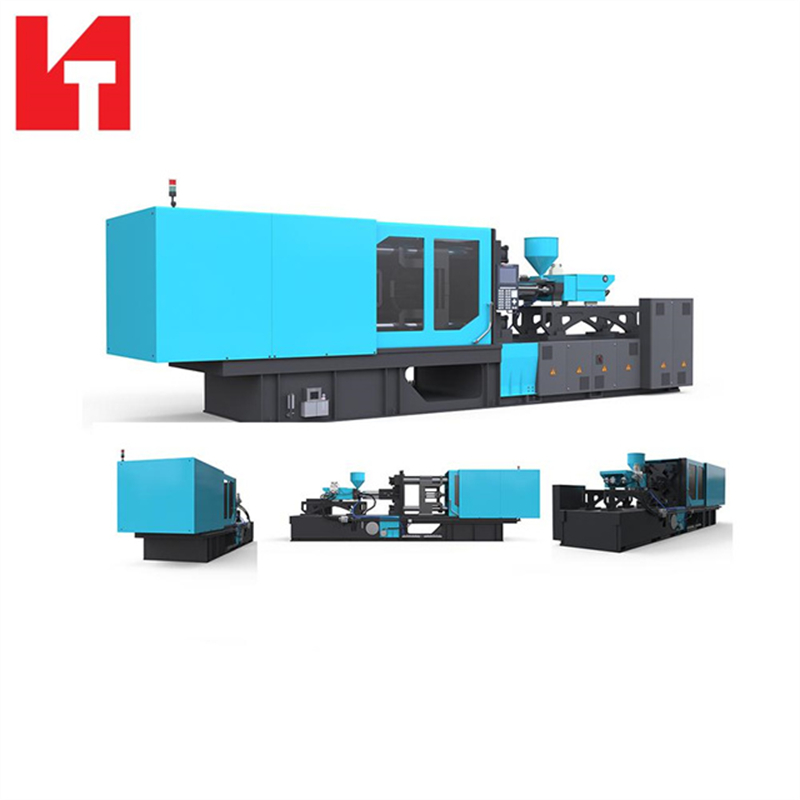

Servo Hydraulic Horizontal Plastic Injection Molding Machine
Technical Parameter
Description | Unit | NT230 | NT260 | NT280 | ||||||
SCREW DIAMETER | mm | 45 | 50 | 55 | 55 | 60 | 65 | 55 | 60 | 65 |
SCREW L/D RATIO | L/D | 22.2 | 20 | 18.2 | 23 | 21 | 19 | 23 | 21 | 19 |
INJECTION STROKE | mm | 250 | 250 | 250 | 285 | 285 | 285 | 285 | 285 | 285 |
INJECTION SPEED | Mm/sec | 103 | 103 | 103 | 94 | 94 | 94 | 94 | 94 | 94 |
SHOT VOLUME (THEORETICAL) | CM3 | 397 | 490 | 594 | 677 | 805 | 945 | 677 | 805 | 945 |
INJECTION WEIGHT(PS) | g | 361 | 445 | 540 | 616 | 732 | 860 | 616 | 732 | 860 |
INJECTION PRESSURE | Mpa | 221 | 179 | 148 | 202 | 170 | 145 | 202 | 170 | 145 |
INJECTION RATE | cm3/sec | 163 | 202 | 242 | 223 | 265 | 312 | 223 | 265 | 312 |
SCREW SPEED | rpm | 225 | 210 | 210 | ||||||
CLAMP FORCE | Kn | 2300 | 2600 | 2800 | ||||||
OPEN STROKE | mm | 475 | 560 | 590 | ||||||
SPACE BETWEEN TIE BARS | mm×mm | 520*520 | 580*580 | 615*615 | ||||||
MAX.MOULD HEIGHT | mm | 550 | 580 | 630 | ||||||
MIN.MOULD HEIGHT | mm | 200 | 200 | 200 | ||||||
EJECTOR STROKE | mm | 140 | 135 | 135 | ||||||
EJECTOR FORCE | Kn | 62 | 62 | 70 | ||||||
EJECTOR NUMBER | N | 5 | 9 | 9 | ||||||
MAX.PUMP PRESSURE | Mpa | 16 | 16 | 16 | ||||||
SEVRO DRIVE POWER | Kw | 30 | 37 | 37 | ||||||
HEATING POWER | Kw | 12.5 | 18.5 | 18.5 | ||||||
MACHINE DIMENSION(L*W*H) | m×m×m | 5.8*1.45*2.1 | 6.2*1.55*2.1 | 6.35*1.7*2.35 | ||||||
MACHINE WEIGHT（ESTIMATE） | T | 6.5 | 8.6 | 9.3 | ||||||

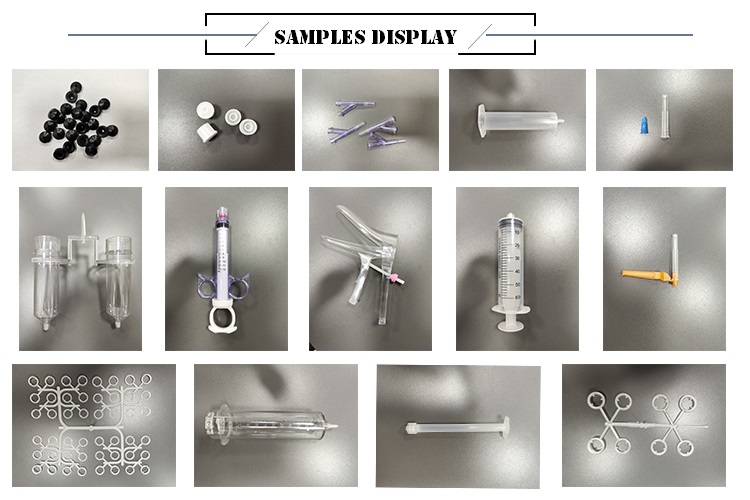

The plastic injection molding machine is a highly advanced apparatus consisting of four primary systems: the plasticizing system, injection system, clamping system, and transmission system. Each of these components is integral to the machine's overall efficiency and functionality. For many years, we have successfully integrated die-casting technologies into our injection molding machines, focusing on mechanical, hydraulic, and electric control advancements. This approach has yielded significant enhancements in performance, facilitating an optimal combination of dynamic pressure casting with rapid operation. In order to improve production stability and enhance energy efficiency specifically for medical products such as syringes, we have incorporated additional features into our standard injection molding machine. These features include an infrared heating coil, which provides precise temperature management during the plasticizing process, thereby optimizing material flow and reducing cycle times. Furthermore, the inclusion of a servo motor system contributes to improved accuracy and energy
Machine Advantages
1. Hydraulic machines can handle a wide range of materials and part sizes.
2. Hydraulic machines tend to be less expensive than all-electric or hybrid models, making them a cost-effective option for many manufacturers.
3. Hydraulic injection molding machines have a very high clamping force, ensuring that the mold remains tightly closed during the injection process and preventing burrs (material leakage).
Company Advantages
1. One-stop service : providing a complete range of equipment, material or technical services that customer might require for syringe production.
2. Our machine is of high efficiency and stability. Its technology and performance can reach international advanced level.
3. 20-year experience in designing, researching & developing, manufacturing the equipment.
4. Professional sales team, providing 7x 24 hours service.
5. Overseas after-sales service, skilled engineers will go to install and debug the machine at buyer’s location.
6. Production manager's theoretical and practical training solution, or headhunting service.
7. An intelligent production management system can be customized to reduce labor consumption and improve production efficiency.
8. Provide drawing or consulting services for the structure and function of products related to medical projects.
