Ever wondered how robot arms perform tasks with such precision? Understanding 3 axis manipulators is key to this marvel. These mechanical arms transform industries with their precise movements and versatility. In this post, you'll learn about their components, kinematics, and applications, unraveling the secrets behind their efficient operations.

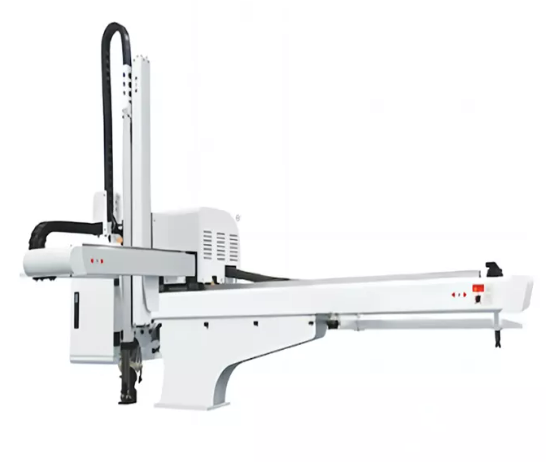

Robot manipulators are mechanical arms designed to move and position tools or objects precisely. They mimic human arm movements but operate in controlled, repeatable ways. Typically, these manipulators consist of several segments called links connected by joints. Each joint allows motion, either rotating (revolute joint) or sliding (prismatic joint), enabling the manipulator to reach various positions and orientations in space.
Manipulators perform tasks like picking, placing, welding, or assembling parts in manufacturing, medicine, and research. Their key function is to position the end-effector—such as a gripper or tool—accurately in three-dimensional space. This precise control makes them indispensable in automation, where repeatability and safety are critical.
A basic robot manipulator includes:
● Links: Rigid segments that form the arm.
● Joints: Connections between links, enabling motion. Revolute joints rotate around an axis; prismatic joints slide linearly.
● End-effector: The tool or device at the arm's tip, such as a gripper or welder.
● Actuators: Motors or devices that move the joints.
● Sensors: Devices measuring position, velocity, or force to provide feedback for control.
The manipulator’s structure determines its workspace—the volume it can reach. For example, a simple three-joint arm might move in a plane, while more complex arms with six or seven joints operate fully in 3D space, allowing both translation and orientation of the end-effector.
Manipulators come in various designs, each suited for specific tasks:
● Articulated Robots: These have rotary joints resembling a human arm, offering high flexibility and a large workspace. Common in assembly and welding.
● SCARA Robots: Operate mainly in a horizontal plane with selective compliance, ideal for fast, precise pick-and-place tasks.
● Cartesian (Gantry) Robots: Move linearly along X, Y, and Z axes. Known for accuracy, often used in CNC machining and 3D printing.
● Delta Robots: Parallel-link design enabling very fast and precise movements, commonly used in packaging and sorting.
● Cylindrical and Spherical Robots: Combine rotary and linear motions for specialized workspaces.
Each type balances degrees of freedom, speed, precision, and payload capacity to match application needs.
Understanding how robot manipulators move starts with kinematics—the study of motion without forces. For 3 axis manipulators, this involves figuring out how the joints’ rotations translate into the position and orientation of the robot’s end-effector, such as a gripper or tool.
Forward kinematics (FK) answers a simple question: If we know the angles of each of the three joints, where is the end-effector located in space? Imagine each joint as a rotating segment connected by links. By applying the joint angles step-by-step, we calculate the cumulative position and orientation of the arm’s tip.
Mathematically, this is done using rotation and translation matrices. Each joint’s rotation matrix describes how that joint turns the arm segment, and translation matrices account for the length of each link. When multiplied together in order, these matrices give the final position and orientation of the end-effector relative to the robot base.
For example, a 3 axis manipulator with joints rotating around the Z, Y, and X axes respectively will have its end-effector position calculated by multiplying the three corresponding rotation matrices and adding the link translations. This process is straightforward and computationally efficient, making FK essential for real-time robot control.
Inverse kinematics (IK) tackles the opposite problem: Given a desired position and orientation of the end-effector, what joint angles will achieve it? This is trickier than FK because multiple joint configurations can produce the same end-effector pose, or sometimes no solution exists if the target is out of reach.
IK solutions often require solving nonlinear equations involving trigonometric functions. For 3 axis manipulators, analytical solutions exist because of the limited degrees of freedom, allowing exact formulas for joint angles. However, for more complex or redundant manipulators, numerical methods like iterative algorithms or Jacobian-based techniques are used.
One common numerical approach uses the Jacobian matrix, which relates joint velocities to end-effector velocities. By iteratively adjusting joint angles to reduce the error between current and desired end-effector poses, the algorithm converges on a solution. Redundancy allows choosing among multiple solutions based on criteria like avoiding obstacles or joint limits.
Rotation and translation are the fundamental motions combining to produce manipulator movement. Rotation changes the orientation of links around joints, while translation moves the position along the arm.
These motions are represented mathematically by matrices:
● Rotation Matrices: Describe rotation about an axis by an angle. For 3D, these are 3×3 matrices encoding rotations around X, Y, or Z axes.
● Translation Vectors: Represent linear shifts along X, Y, and Z axes.
To combine rotation and translation, we use homogeneous transformation matrices—4×4 matrices that consolidate both into a single operation. This allows chaining multiple joint transformations easily by matrix multiplication.
For example, the transformation from the robot base to the end-effector is the product of each joint’s homogeneous transform. This unified representation simplifies calculations and is critical for both FK and IK.
Motion planning is how a robot arm figures out how to move from one pose to another safely and efficiently. For 3 axis manipulators, this process involves creating paths and trajectories that avoid collisions and respect the robot’s physical limits.
A path is simply the route the manipulator’s joints take through space. It’s a sequence of positions or joint angles connecting the start and goal. Think of it as the “where to go” part. Paths don’t include timing information.
A trajectory adds the “when to go” by specifying how fast the manipulator moves along the path. It includes velocity, acceleration, and timing data. This ensures smooth, realistic motion that the robot can follow without jerky stops or overshoots.
For example, a robot may have a path that moves its arm around an obstacle, but the trajectory defines how fast it moves at each point, controlling acceleration to avoid mechanical stress.
Avoiding collisions is critical. The robot must not hit itself, obstacles, or humans. Collision avoidance techniques include:
● Configuration Space (C-space) Checking: The robot’s joint angles define a point in high-dimensional space. Obstacles are mapped into this space. Planners search for collision-free paths in the C-space.
● Sampling-Based Methods: Since C-space is complex, planners like Probabilistic Roadmaps (PRM) and Rapidly-exploring Random Trees (RRT) sample random points to build a graph or tree of safe configurations. These methods efficiently explore feasible paths while avoiding collisions.
● Continuous Collision Checking: Paths are discretized into small steps, and collision checks are done at each step to ensure safety throughout the motion.
● Signed Distance Fields (SDF): These provide distances to the nearest obstacle. Planners use gradients from SDFs to steer paths away from collisions smoothly.
Collision checking can be computationally expensive, especially with detailed robot models and environments. Efficient algorithms and approximations help keep planning fast.
Sampling-based planners are popular for manipulators due to their ability to handle complex, high-dimensional spaces.
● Probabilistic Roadmaps (PRM): PRM builds a network of random collision-free configurations connected by simple paths. It’s great for static environments where multiple queries are needed.
● Rapidly-exploring Random Trees (RRT): RRT grows a tree from the start toward the goal by randomly sampling configurations. It’s faster for single-query problems and adapts well to dynamic environments.
● RRTand PRMare improved versions that optimize path quality by rewiring connections during planning.
Sampling-based planners can produce “quirky” paths with unnecessary detours. Post-processing techniques like path shortcutting and trajectory optimization smooth these paths for better execution.
Robot manipulators rely heavily on control systems to translate planned motions into smooth, accurate movements. For 3 axis manipulators, control ensures each joint moves precisely to follow the desired trajectory, compensating for disturbances and uncertainties along the way.
At the core of manipulator movement lies low-level control, typically implemented through feedback control loops. The most common method is the Proportional-Integral-Derivative (PID) controller, which adjusts motor commands based on the error between desired and actual joint positions or velocities.
● Proportional (P): Reacts proportionally to the current error.
● Integral (I): Addresses accumulated past errors to eliminate steady-state offset.
● Derivative (D): Predicts future errors by considering error rate of change.
This combination helps the manipulator reach target joint angles smoothly without overshoot or oscillations. While PID is simple and effective, tuning its parameters can be challenging, especially when system dynamics change.
More advanced techniques include adaptive control, which adjusts control parameters on the fly, and robust control, designed to handle uncertainties and external disturbances.
Sensors are essential for feedback control. Common sensors include encoders for joint position and velocity, force/torque sensors for interaction forces, and inertial measurement units (IMUs) for orientation and acceleration data.
Feedback from these sensors allows the controller to:
● Correct deviations caused by load changes or external forces.
● Detect collisions or unexpected contacts.
● Maintain stability during complex maneuvers.
Integration of sensor data improves safety and precision. For example, force sensors enable compliant control modes, allowing the manipulator to softly interact with objects or humans.
Model Predictive Control (MPC) is a more sophisticated control strategy gaining traction in robotics. MPC uses a mathematical model of the manipulator to predict future states over a short horizon and optimize control inputs accordingly.
Key benefits of MPC include:
● Handling multiple constraints simultaneously (joint limits, collision avoidance).
● Anticipating future disturbances and adjusting commands proactively.
● Providing smooth and optimal trajectories respecting physical limits.
Although computationally intensive, advances in processors and algorithms make MPC viable for real-time control of 3 axis manipulators. It is especially useful in dynamic environments where reactive and predictive behaviors are critical.
Robot manipulators with three axes are essential tools across many fields. Their ability to move precisely in three-dimensional space makes them versatile for various applications. Here, we explore some key areas where 3 axis manipulators have a significant impact.
In factories, 3 axis manipulators often handle repetitive tasks like picking, placing, and assembling parts. Their repeatability and accuracy improve production speed and product quality. For example:
● Material Handling: Moving components between conveyor belts or machines.
● Welding: Performing precise welds on automotive frames.
● Packaging: Sorting and packing items quickly and reliably.
These manipulators reduce human labor for dangerous or monotonous jobs, increasing safety and efficiency. They also integrate well with sensors and control systems to adapt to changing production needs.
In healthcare, 3 axis manipulators assist surgeons by providing steady, precise movements beyond human capability. Some applications include:
● Minimally Invasive Surgery: Manipulators control tiny instruments inside the body through small incisions.
● Rehabilitation Devices: Assisting patients in performing controlled movements during therapy.
● Diagnostic Equipment: Positioning sensors or imaging tools accurately.
Their fine control helps reduce patient trauma and improve surgical outcomes. Feedback from sensors allows these robots to adjust force and position in real time, ensuring safety and precision.
Researchers use 3 axis manipulators to prototype new robotic systems or study motion control. Applications include:
● Testing Algorithms: Evaluating motion planning and control strategies.
● Material Science: Handling delicate samples under microscopes.
● Human-Robot Interaction: Exploring safe and intuitive robot behaviors.
Their modularity and programmability make them ideal for experimental setups. Researchers can simulate complex tasks by combining multiple 3 axis manipulators or integrating them with other robotic components.
Robot manipulators have come a long way, yet several challenges remain. One key limitation is the trade-off between complexity and control. Adding more degrees of freedom allows for greater flexibility but complicates motion planning and control. This can lead to slower computations and increased chances of errors or collisions.
Another challenge is the reliance on precise models and sensors. In real-world environments, uncertainties like sensor noise, mechanical wear, or unexpected obstacles can cause deviations from planned paths. Manipulators must adapt to these uncertainties quickly and safely.
Moreover, current manipulators often struggle with dynamic environments where objects or humans move unpredictably. Ensuring safe, real-time motion planning and control in such settings is still an open problem.
Artificial intelligence and machine learning are transforming how manipulators move and adapt. Machine learning models can predict and compensate for uncertainties in sensor data or robot dynamics, improving robustness.
Reinforcement learning helps manipulators learn complex tasks through trial and error, reducing the need for explicit programming. For example, a robot can learn to grasp objects of varying shapes by practicing in simulation before applying skills in the real world.
AI also enhances motion planning by enabling faster and more efficient path searches. Learning-based planners can prioritize promising paths and avoid obstacles more intelligently than traditional algorithms.
Sensor fusion, powered by AI, combines data from cameras, force sensors, and lidar to create a richer understanding of the environment. This allows manipulators to react more effectively to changes and unexpected events.
Looking ahead, manipulators will become more autonomous, flexible, and safe. Key trends include:
● Increased Redundancy: More joints and actuators will offer alternative ways to reach goals, improving obstacle avoidance and fault tolerance.
● Soft Robotics: Incorporating compliant materials will allow manipulators to interact safely with humans and delicate objects.
● Cloud Robotics: Offloading computation to the cloud will enable complex planning and learning without heavy onboard hardware.
● Human-Robot Collaboration: Advanced sensors and AI will allow manipulators to work closely with humans, understanding gestures and intentions.
● Integration with IoT: Manipulators will connect seamlessly with other smart devices for coordinated tasks in factories or homes.
As these trends evolve, manipulators will handle more complex, unstructured tasks, expanding their role beyond traditional industrial settings.
Robot manipulators, especially those with three axes, are pivotal in robotics due to their precise movement capabilities. They efficiently handle tasks like picking, placing, and assembling across various fields, including industrial automation and medical robotics. Understanding kinematics and control systems is crucial for their effective operation. LEANTALL offers innovative solutions that enhance manipulator performance, ensuring adaptability and precision in dynamic environments. Their products provide significant value, enabling safer and more efficient robotic operations.
A: A 3 axis manipulator is a type of robot arm with three joints, allowing movement along three axes, enabling precise positioning of the end-effector in space.
A: In industrial automation, a 3 axis manipulator performs tasks like picking, placing, and assembling with high accuracy, enhancing production speed and quality.
A: Forward kinematics calculates the end-effector's position from joint angles, essential for controlling 3 axis manipulators accurately in real time.
A: In medical applications, a 3 axis manipulator provides precise, steady movements for surgeries, reducing patient trauma and improving outcomes.
A: AI enhances 3 axis manipulators by predicting uncertainties, optimizing motion planning, and enabling learning-based task execution for better adaptability.
