Imagine a world where machines perform tasks with precision and efficiency beyond human capability.5 axis manipulator, or robot manipulators, are transforming industries by enhancing productivity and safety. In this article, you'll learn about the significance of these devices in modern industries and explore their various types, applications, and benefits.
A robotic manipulator is a device designed to allow a robot to interact with its environment by moving or controlling objects. Think of it as a robot’s hand, capable of performing tasks that require precision and strength beyond human ability. These manipulators are usually found at the end of a robotic arm, working together to complete complex jobs.
Robotic manipulators mimic the human hand in function but operate with mechanical precision. Like our arms and hands, they have segments and joints that provide movement and flexibility. The robotic arm acts like the human arm, offering reach and motion, while the manipulator (or gripper) acts like the hand, gripping, lifting, or manipulating objects.
● Arm segments: These are the parts of the arm that provide length and structure, similar to the upper arm, forearm, and wrist in humans.
● Joints: These connect the segments and allow movement, such as rotation or bending. They determine the arm’s range of motion.
● End effector (manipulator): This is the tool or "hand" at the end of the arm, designed for specific tasks like gripping, welding, or suction.
● Actuators: Motors or hydraulic systems that move the joints and segments.
● Sensors: Devices that provide feedback, helping the robot adjust its grip or movement for accuracy.
Robotic manipulators replicate many functions of human hands but often excel in strength, speed, and precision. While a human hand can perform a wide variety of tasks, robotic manipulators can be tailored for specialized jobs, such as handling heavy objects or performing delicate surgery. Unlike human hands, they can operate continuously without fatigue and in hazardous environments.
Feature | Human Hand | Robotic Manipulator |
Degrees of Freedom | High (multiple joints and muscles) | Variable (depends on design) |
Strength | Moderate | Can be very high |
Precision | Good | Very high with sensors |
Fatigue | Yes | No |
Environment | Limited (safe, clean) | Can work in hazardous environments |
Robotic manipulators are essential in industries requiring repetitive, precise, or dangerous tasks. They amplify human capabilities and open new possibilities in automation.
Robotic manipulator arms come in various designs, each suited for specific tasks and environments. The choice depends on factors like workspace, payload, range of motion, and precision requirements. Understanding the common types helps in selecting the right arm for your application.
Articulated arms resemble a human arm with multiple joints, typically between 3 to 6 revolute joints. Each joint allows rotation, providing a large range of motion and flexibility. This design lets the arm move in complex paths, making it ideal for tasks requiring dexterity, such as welding, assembly, and material handling. Their versatility and wide reach make them the most popular choice in industrial settings.
SCARA stands for Selective Compliance Assembly Robot Arm. These arms have two revolute joints and one prismatic joint, which moves linearly along the vertical axis. SCARA arms are rigid in the horizontal plane but flexible vertically, making them perfect for pick-and-place tasks, assembly, and packaging. They excel in speed and precision but have a limited vertical range compared to articulated arms.

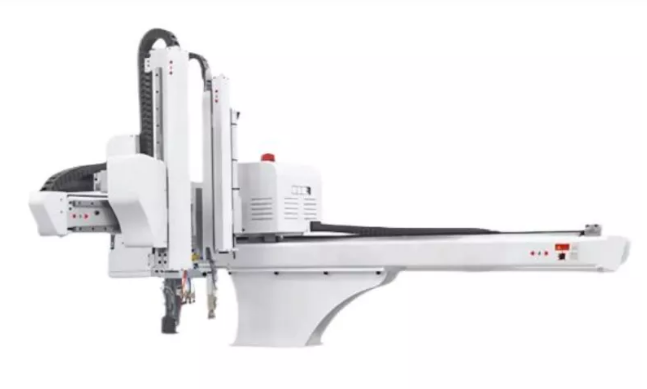

Gantry robots, also called Cartesian robots, move along three linear axes (X, Y, and Z) using a rail or gantry system. They are excellent for handling very heavy loads or tasks requiring precise linear movements, such as CNC machining or large-scale assembly. Their structure provides stability and high payload capacity but less flexibility in movement compared to articulated arms.
Spherical robots have a combination of two revolute joints and one prismatic joint, allowing movement within a spherical workspace. The prismatic joint extends or retracts the arm, while the revolute joints rotate it. They are often used in welding and material handling where a spherical range of motion is beneficial.
Parallel robots consist of multiple arms connected to a single end effector, usually mounted overhead. Each arm has revolute or prismatic joints, working together to position the end effector precisely. This design provides high stiffness, speed, and accuracy, making parallel robots ideal for tasks like high-speed pick-and-place and precision assembly.
Robot manipulators rely on their end effectors—the "hands" at the arm’s tip—to interact with objects. These tools vary widely, designed for specific tasks, materials, and environments. Choosing the right end effector ensures the manipulator performs efficiently and safely. Here’s a detailed look at the most common types:
Electric grippers use motors to control their fingers. Each finger moves independently, allowing precise control over grip strength and speed. They excel in tasks requiring delicate handling and quick adjustments, such as assembling small parts or handling fragile items. Their programmability makes them versatile across industries.
Powered by compressed air, pneumatic grippers deliver strong, consistent gripping force. They’re ideal for handling heavier or sturdier objects where a firm hold is essential. Pneumatic systems are simpler and often more robust than electric ones, making them suitable for harsh industrial environments.
These grippers use magnetic fields to pick up ferrous metal objects. They’re perfect for tasks like moving steel sheets or metal parts without physical contact. Magnetic grippers offer quick release and grip cycles but only work with magnetic materials, limiting their applications.
Mechanical grippers operate without external power sources. They use mechanical linkages such as prongs or claws to grasp objects. Often designed for specific shapes or tasks, they’re reliable and low-maintenance. Mechanical grippers suit applications where simplicity and durability are priorities.
Suction grippers employ vacuum pressure to hold objects. They’re highly effective for smooth, flat surfaces like glass, plastic sheets, or packaged goods. Suction cups can quickly pick and place items, making them common in packaging, electronics, and food industries. However, porous or irregular surfaces may reduce suction effectiveness.
Robot manipulators play a vital role across many industries. Their ability to perform precise, repetitive, and sometimes dangerous tasks makes them invaluable tools. Here’s a closer look at some of the key areas where they are widely used:
In factories, robot manipulators handle tasks like assembly, welding, painting, and packaging. They work tirelessly on production lines, moving heavy parts or assembling tiny components with high accuracy. This boosts production speed and product consistency while reducing human error and workplace injuries. For example, automotive plants use robotic arms to install engines and weld car bodies efficiently.
Robotic manipulators assist surgeons in performing minimally invasive procedures. They offer precision beyond human hands, enabling delicate operations like microsurgery or complex orthopedic procedures. These robots reduce patient trauma and speed up recovery times. Surgical robots also provide steady, tremor-free movements that improve outcomes.
Robots operate safely in places unsafe for humans. They handle radioactive materials in nuclear plants, work in chemical factories with toxic substances, and perform tasks in explosive or contaminated areas. By replacing human workers in these environments, manipulators reduce health risks and improve operational safety.
Robot manipulators extend human reach to extreme locations. In space missions, robotic arms repair satellites or assemble structures outside spacecraft. Deep-sea robots explore ocean floors, collect samples, or perform underwater repairs where pressure and darkness prevent human presence. These manipulators must endure harsh conditions while providing precise control remotely.
Robot manipulators bring numerous advantages to industries, transforming how tasks are performed. Their use leads to enhanced productivity, improved precision, greater safety, and cost savings. Let's explore these benefits in detail.
Robot manipulators work tirelessly without breaks or fatigue. They perform repetitive tasks consistently at high speeds, which significantly boosts production rates. Unlike humans, robots maintain the same level of performance 24/7, reducing downtime and increasing output. For example, in automotive assembly lines, robotic arms can install parts quickly and accurately, speeding up the entire manufacturing process.
Robotic manipulators excel at tasks requiring fine control and repeatability. Equipped with advanced sensors and actuators, they can position and manipulate objects with millimeter-level accuracy. This precision reduces errors and waste, improving product quality. In electronics manufacturing, for instance, robots place tiny components on circuit boards with unmatched accuracy, ensuring reliable devices.
Robots handle dangerous, heavy, or hazardous tasks that could risk human health. They operate in environments with toxic chemicals, extreme temperatures, or high radiation, keeping workers safe. By taking over these risky jobs, robot manipulators minimize workplace accidents and injuries. For example, in nuclear plants, robotic arms manage radioactive materials, protecting human operators from exposure.
Though initial investment in robotic systems can be high, they offer long-term financial benefits. Robots reduce labor costs by automating manual tasks and lower error-related expenses through consistent performance. They also optimize resource use by minimizing material waste. Over time, this leads to improved profitability and return on investment. Many industries find that robotic automation pays off by increasing efficiency and reducing operational costs.
Robot manipulators offer incredible advantages, but they also come with challenges. Understanding these helps businesses plan better and avoid costly mistakes.
Buying and installing robot manipulators requires a significant upfront investment. High-quality arms, advanced end effectors, and control systems can be expensive. Besides hardware, costs include software, programming, and training. Small or medium companies may find these costs daunting. However, the long-term savings from improved productivity and reduced labor costs often justify the expense. Budgeting carefully and exploring financing options can ease the initial financial burden.
Operating robot manipulators demands skilled personnel. Programming, maintenance, and troubleshooting require technical knowledge in robotics, control systems, and software. Many companies must invest in staff training or hire specialists. Integrating robots also involves understanding complex workflows and safety standards. Without proper expertise, robots may underperform or cause downtime. Partnering with experienced vendors or consultants can bridge the skills gap.
Adding robot manipulators to existing production lines or workflows can be complex. Compatibility with current machinery, software, and processes is essential. Sometimes, layouts must change to fit robotic arms, or communication protocols updated for smooth data exchange. Poor integration risks bottlenecks or system failures. Careful planning, testing, and gradual implementation help ensure seamless integration.
Robotic manipulators require regular maintenance to stay reliable. Components like actuators, sensors, and joints wear over time and need inspection or replacement. Preventive maintenance reduces unexpected breakdowns and costly repairs. Access to technical support and spare parts is vital. Companies should establish maintenance schedules and train staff for routine checks. Some vendors offer service contracts to handle upkeep professionally.
Robot manipulators continue to evolve rapidly due to technological advancements. Improvements in artificial intelligence, machine learning, and sensor technology are making these devices smarter and more capable. For example, enhanced vision systems help robots recognize objects better and adapt to changing environments. Advanced algorithms allow manipulators to plan complex movements and learn from experience, boosting their autonomy.
Potential new applications are emerging as manipulators become more versatile. Beyond traditional manufacturing, they are entering fields like agriculture, where they can pick fruits or tend crops. In logistics, robots streamline warehouse operations by sorting and transporting goods more efficiently. Even creative industries benefit—robotic arms assist artists and chefs, expanding the boundaries of art and cuisine.
In future industries, robot manipulators will play key roles in automation and innovation. Smart factories will rely on them for flexible production lines that quickly switch between different products. In healthcare, more advanced surgical robots will perform delicate operations with minimal invasiveness. Exploration missions to space or deep oceans will depend on manipulators capable of handling unknown and extreme conditions.
The impact on the workforce is complex. While robots take over repetitive or dangerous tasks, they also create demand for new skills in robot programming, maintenance, and design. This shift means workers will need ongoing training to collaborate effectively with robots. Ultimately, robot manipulators will augment human capabilities rather than replace them entirely, enabling safer and more productive workplaces.
Robot manipulators are vital for precision, efficiency, and safety in various industries. Their growing importance is evident as they take on more roles, from manufacturing to hazardous environments. As technology advances, their capabilities expand, promising a future where they enhance productivity and innovation. Companies like LEANTALL are at the forefront, offering advanced robotic solutions that provide significant value by boosting operational efficiency and safety. The future of robotic technology is bright, with continuous advancements shaping the way industries operate.
A: An automatic robot arm is a mechanized device designed to perform tasks by mimicking human arm movements, often used in industrial settings for precision and strength.
A: An automatic robot arm enhances manufacturing by increasing productivity, improving precision, and reducing human error, leading to consistent product quality and safety.
A: Automatic robot arms are used in hazardous environments to perform dangerous tasks safely, protecting human workers from exposure to harmful conditions.
A: The cost of an automatic robot arm depends on factors like complexity, payload capacity, precision, and additional features such as sensors and specialized end effectors.
