| Quantity: | |
|---|---|

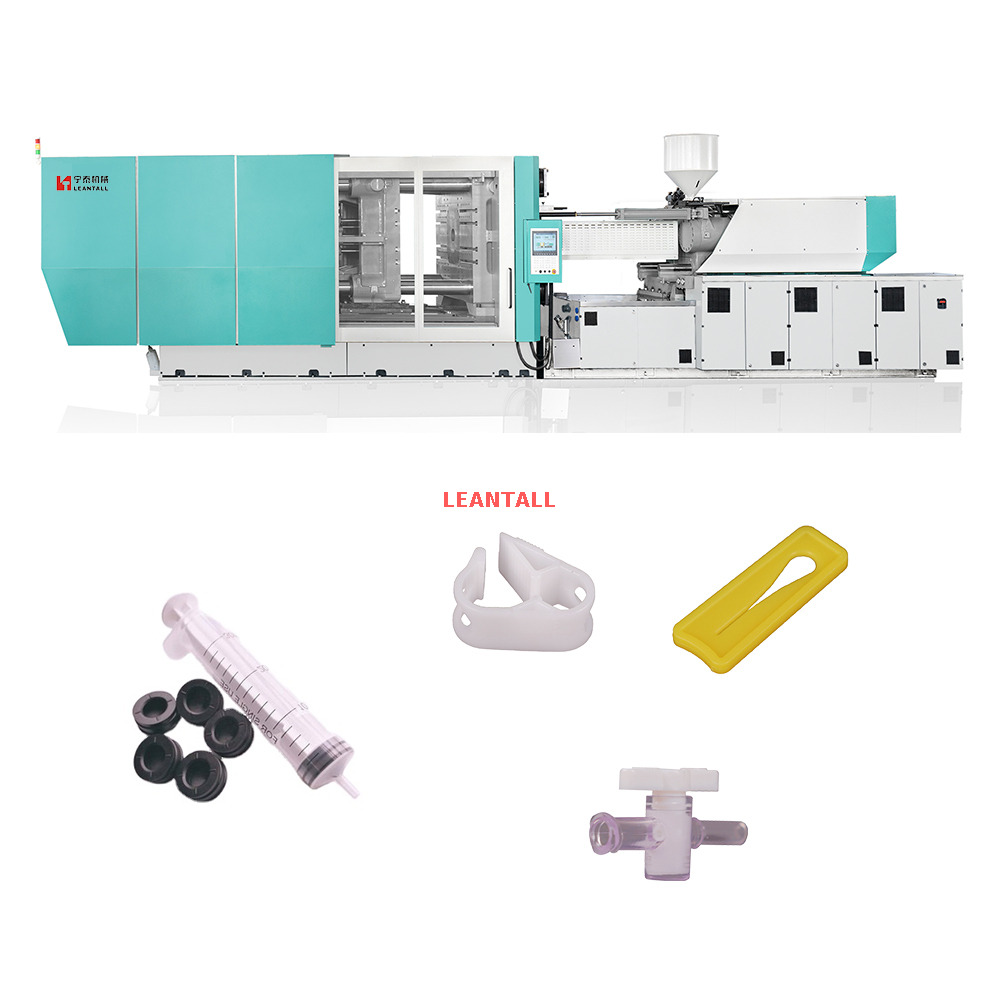

NT200
LEANTALL
8477101090
The final stage of the cycle is ejection, where the solidified plastic part is removed from the mold. First, the clamping unit releases the mold: the moving half of the mold pulls away from the fixed half, creating space between the two halves. Next, ejection systems—typically small pins, plates, or air blasts—push or blow the finished part out of the mold cavity. The ejection force is gentle enough to avoid damaging the part but strong enough to overcome any friction between the plastic and the mold’s surface.
After ejection, the mold closes again, the screw rotates to feed and melt a new batch of plastic pellets, and the entire cycle repeats. The speed of the cycle (from feeding to ejection) varies by part size and plastic type but typically ranges from 10 seconds (for small, simple parts) to several minutes (for large, complex parts). High-speed injection molding machines can complete cycles in under 5 seconds for ultra-small components like medical micro-connectors.
Throughout the entire process, the injection molding machine’s controller plays a central role in maintaining precision. Operators set parameters like barrel temperature, injection pressure, holding time, and cooling time via a touchscreen interface. Modern machines often integrate sensors that monitor real-time data (e.g., melt temperature, mold pressure, screw position) and adjust parameters automatically to correct deviations—reducing human error and ensuring consistent quality. For example, if a sensor detects that the melt temperature is too low, the controller will increase the barrel heater output to compensate.
In summary, the working principle of injection molding machines is a harmonious blend of heat, pressure, and precision control. By cycling through material melting, injection, clamping, cooling, and ejection, these machines transform simple plastic pellets into millions of the products we use daily—from toy parts to life-saving medical devices. As technology advances, innovations like electric drives (replacing hydraulic systems for faster, more energy-efficient operation) and IoT integration (for remote monitoring) continue to refine this process, making injection molding even more versatile and sustainable.
Technical Parameter | |||||
Part | Name | Unit | NT200 | ||
Injection unit | SCREW DIAMETER | mm | 45 | 50 | 55 |
SCREW L/D RATIO | L/D | 22.2 | 20 | 18.2 | |
SHOT VOLUME(THEORETICAL) | CM3 | 397 | 490 | 594 | |
INJECTION WEIGHT(PS) | g | 361 | 445 | 540 | |
INJECTION PRESSURE | Mpa | 221 | 179 | 148 | |
INJECTION RATE | cm⊃3;/sec | 192 | 237 | 287 | |
PLASTICZATION CAPACITY(PS) | g/sec | 26 | 36 | 48 | |
INJECTION STROKE | mm | 250 | |||
INJECTION SPEED | Mm/sec | 121 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 2000 | ||
OPEN STROKE | mm | 460 | |||
SPACE BETWEEN TIE BARS | mm×mm | 520X480 | |||
MAX.MOULD HEIGHT | mm | 550 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 129 | |||
EJECTOR FORCE | Kn | 61 | |||
EJECTOR NUMBER | N | 5 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 29 | |||
HEATING POWER | Kw | 9.9 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 5.4*1.4*2.1 | |||
MACHINE WEIGHT(ESTIMATE) | T | 5.4 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
