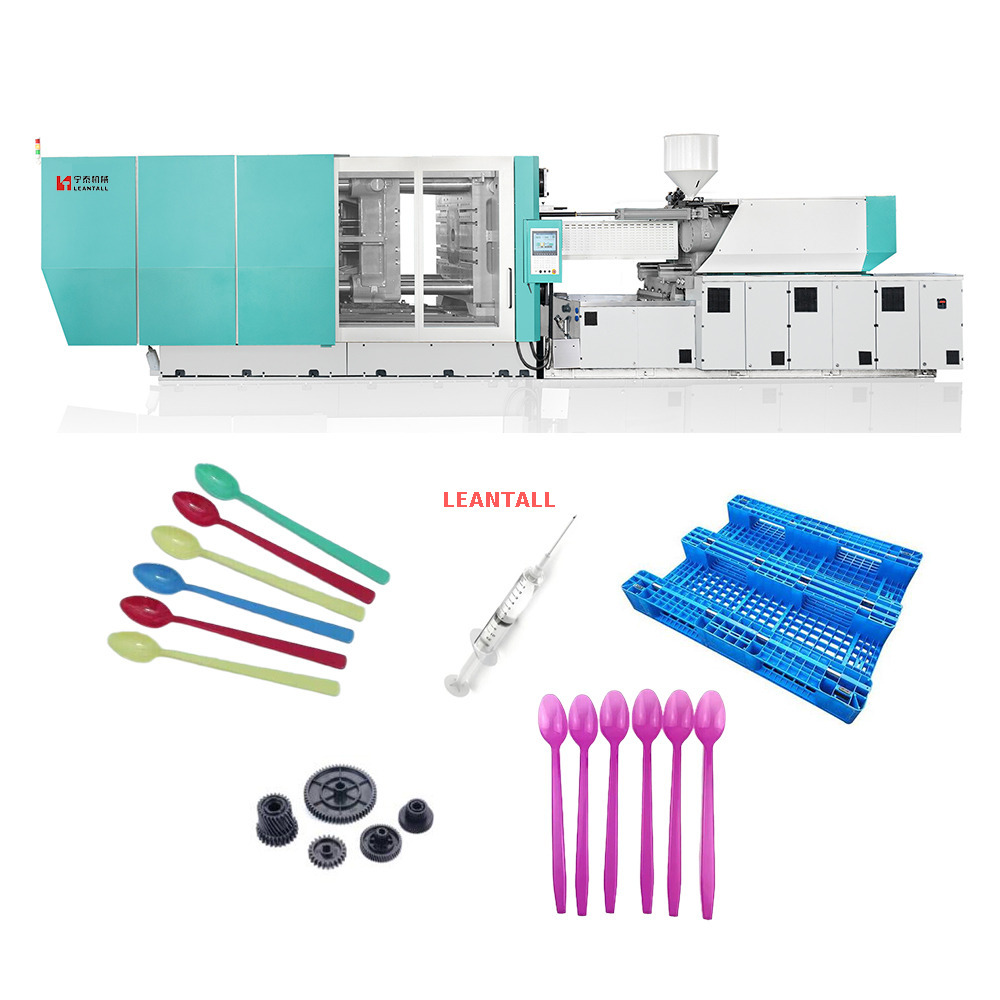

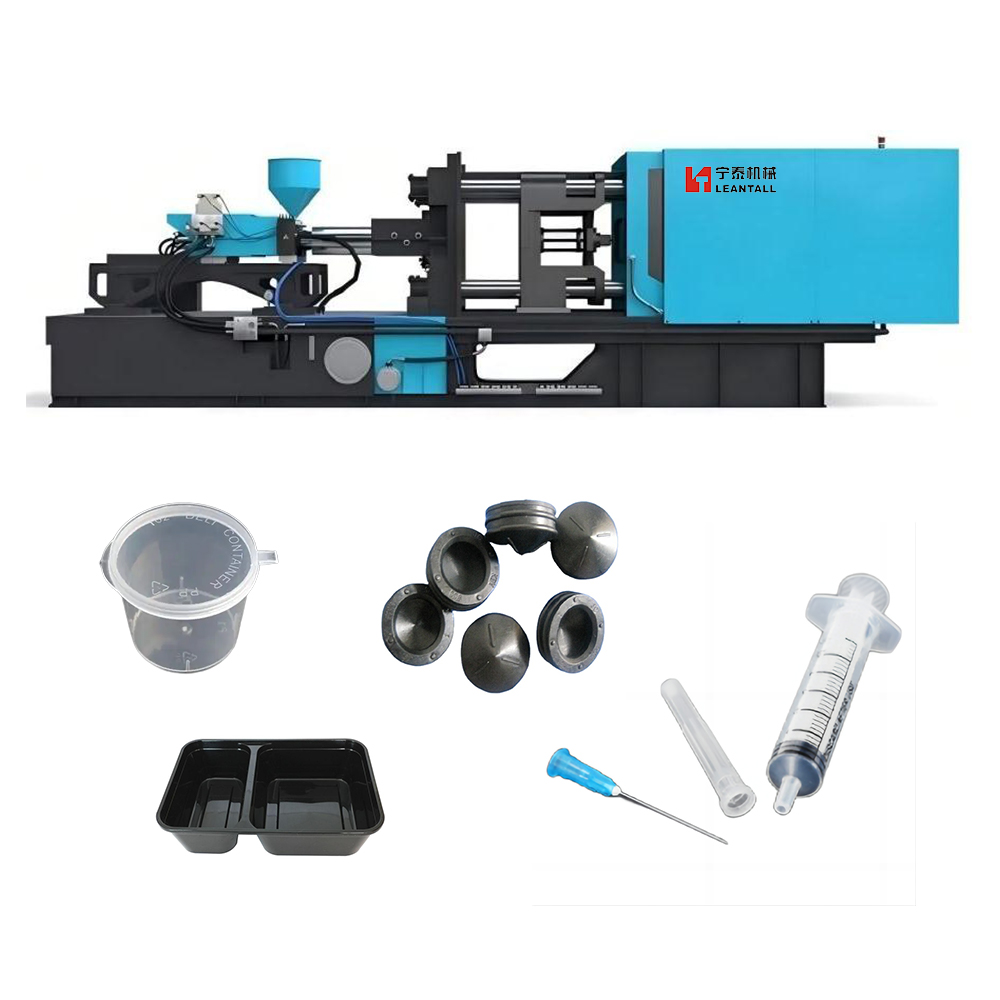

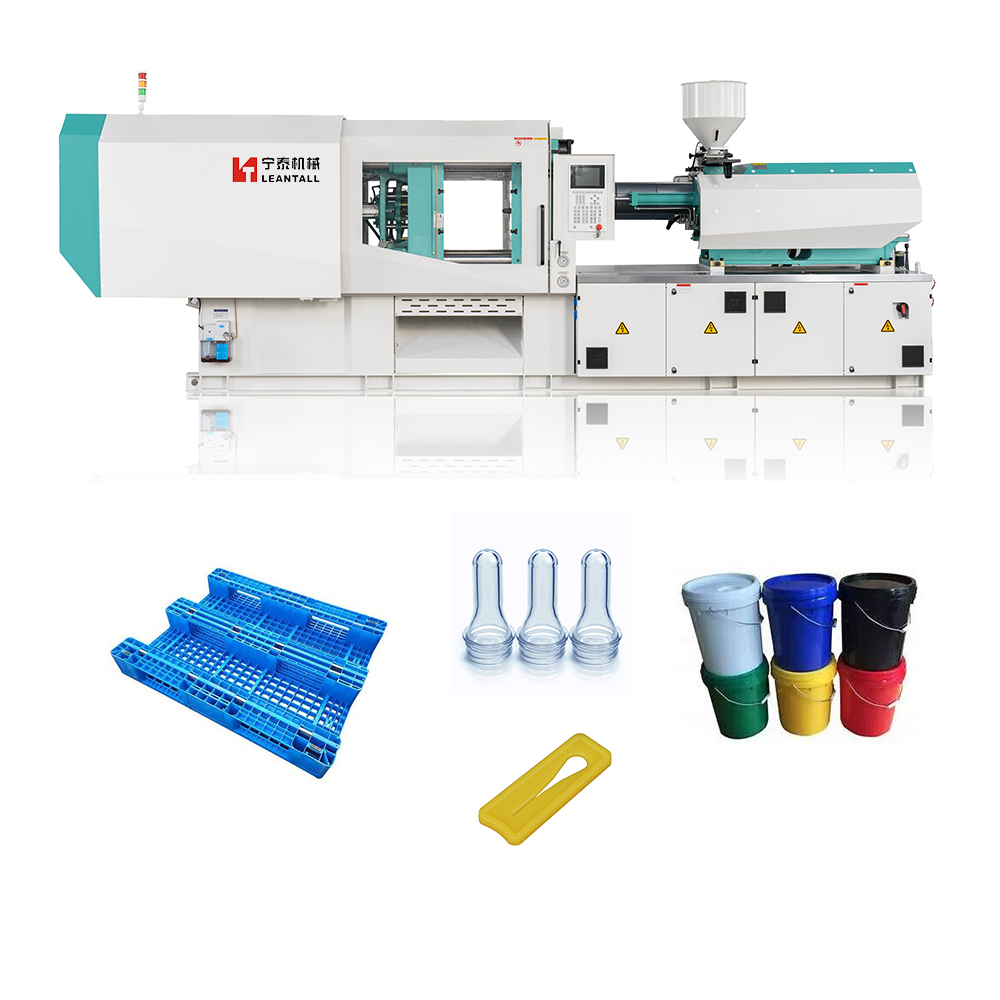

100ton Injection Molding Machine Reduce-Noise Improve Working-Environment Medical Syringe/Infusion Set Best-Price

Nt100 Regular Syringe Making Injection Molding Machine Custom Runner Mold Professional Trustworthy

100ton Injection Molding Machine Reduce-Noise Improve Working-Environment Medical Syringe/Infusion Set Best-Price

Plastic injection molding equipment consists of plasticizing system, injection system, the clamping system and transmission system. We have been applying die casting technologies to injection moulding machines for many years, like in mechanical, hydraulic, electric control, etc for comprehensive improvement, perfect combination of dynamic pressure casting and speed.
In order to improve the production stability and energy saving of medical products such as syringes, our company especially added infrared heating coil and servo motor system on the standard injection molding machine.

Quantity:
Availability:





Inquire Add to Basket

Model:
NT100
Brand:
LEANTALL
Code:
8477101090

Product Description

Technical Parameter
Part	Name	Unit	NT100
注射装置Injection unit	螺杆直径SCREW DIAMETER	mm	32	35	38
	螺杆长径比SCREW L/D RATIO	L/D	22	20	18.5
	理论注射量SHOT VOLUME(THEORETICAL)	CM3	133	158	187
	注射重量INJECTION WEIGHT(PS)	g	121	144	170
	注射压力INJECTION PRESSURE	Mpa	203	170	144
	注射速率INJECTION RATE	cm³/sec	83	100	117
	塑化能力PLASTICZATION CAPACITY(PS)	g/sec	9	12	15
	注射行程INJECTION STROKE	mm	165
	注射速度INJECTION SPEED	Mm/sec	104
	螺杆转速SCREW SPEED	rpm	210
合模装置clamping unit	合模力CLAMP FORCE	Kn	1000
	移模行程OPEN STROKE	mm	330
	拉杆间距SPACE BETWEEN TIE BARS	mm×mm	360X360
	最大模厚MAX.MOULD HEIGHT	mm	380
	最小模厚MIN.MOULD HEIGHT	mm	150
	顶出行程EJECTOR STROKE	mm	100
	顶出力EJECTOR FORCE	Kn	33
	顶出杆根数EJECTOR NUMBER	N	5
其它others	最大油泵压力MAX.PUMP PRESSURE	Mpa	16
	油泵马达功率PUMP MOTOR POWER	Kw	11
	电热功率HEATING POWER	Kw	7
	外形尺寸MACHINE DIMENSION(LWH)	m×m×m	4.251.11.85
	机器重量MACHINE WEIGHT(ESTIMATE)	T	3.1

1. Q: What is the product range?

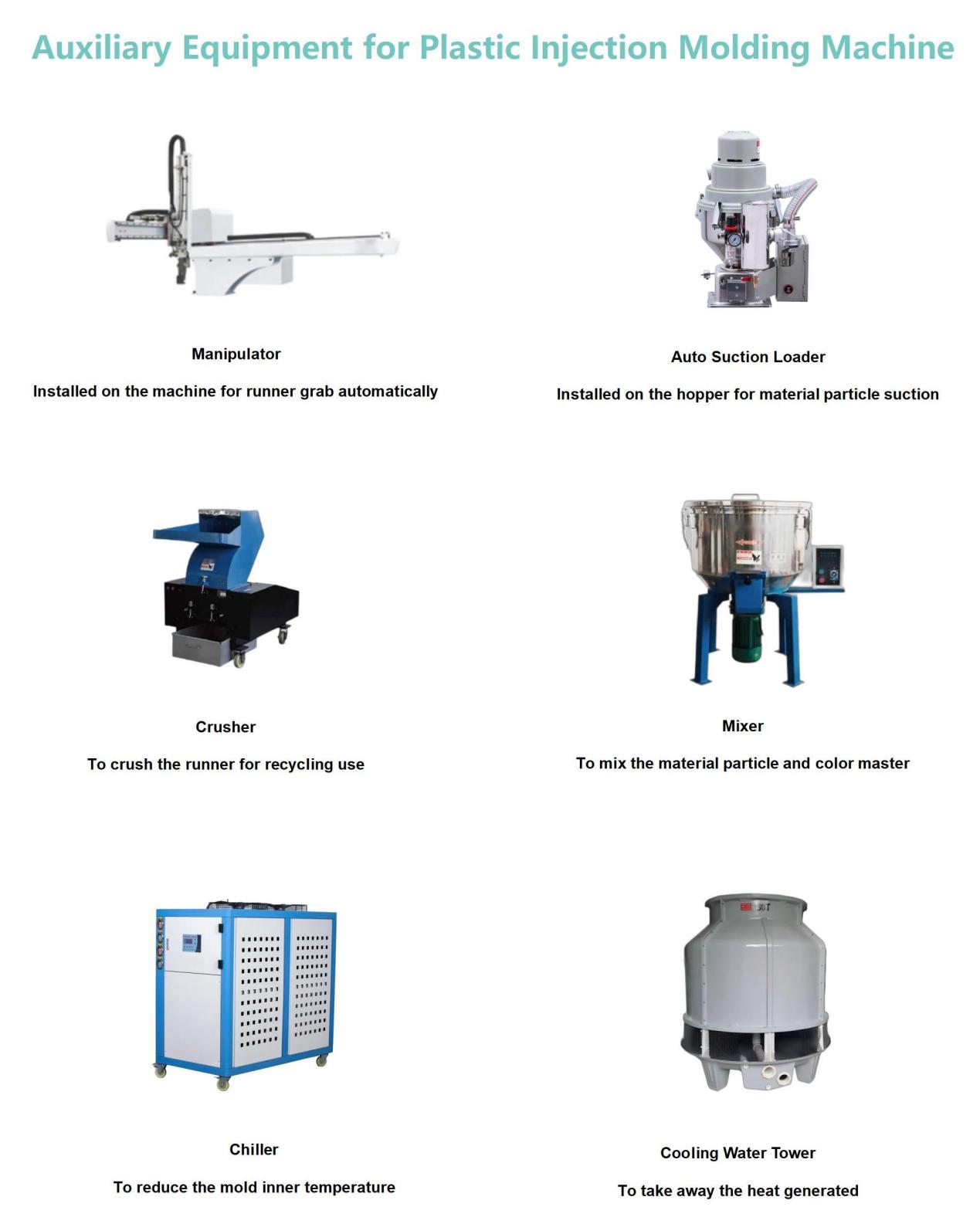

2. A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.

3. Q: Where is your main selling market?

4. A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.

5. Q: Will you offer field installation and operator training at the buyer's factory?

6. A: Yes, we will arrange our skilled engineers for filed installation and training.

7. Q: What is the delivery time(equipment production time)?

8. A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.

9. Q: Do you also have source for molds and spare parts?

10. A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.

11. Q: What is the standard of package?

12. A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
