| Quantity: | |
|---|---|

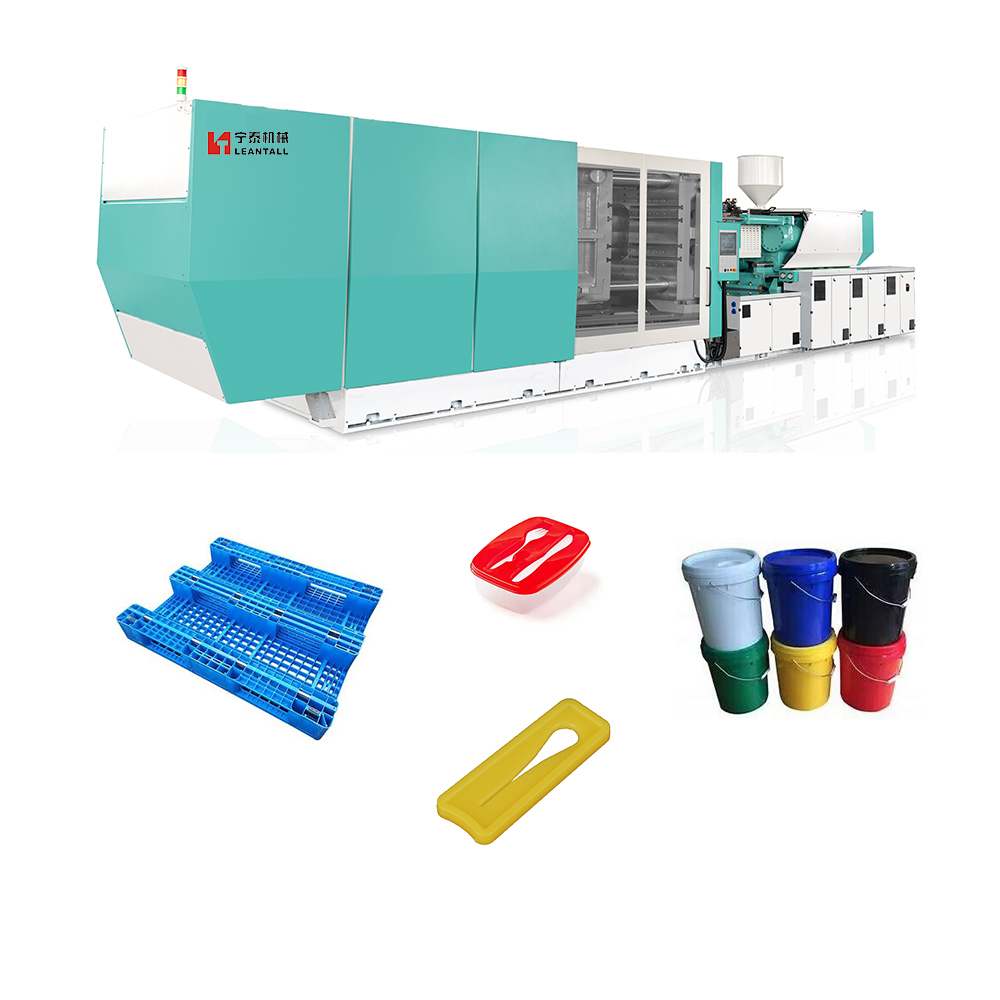

NT1400
LEANTALL
8477101090
Technical Parameter | |||||
Part | Name | Unit | NT1400 | ||
Injection unit | SCREW DIAMETER | mm | 115 | 125 | 135 |
SCREW L/D RATIO | L/D | 22.8 | 21 | 19.4 | |
SHOT VOLUME(THEORETICAL) | cm3 | 6543 | 7731 | 9513 | |
INJECTION WEIGHT(PS) | g | 5954 | 7035 | 8656 | |
INJECTION PRESSURE | Mpa | 194 | 164 | 141 | |
INJECTION RATE | cm⊃3;/sec | 955 | 1128 | 1316 | |
PLASTICZATION CAPACITY(PS) | g/sec | 223 | 285 | 354 | |
INJECTION STROKE | mm | 630 | |||
INJECTION SPEED | Mm/sec | 92 | |||
SCREW SPEED | rpm | 110 | |||
Clamping unit | CLAMP FORCE | Kn | 14000 | ||
OPEN STROKE | mm | 1350 | |||
SPACE BETWEEN TIE BARS | mm×mm | 1360X1300 | |||
MAX.MOULD HEIGHT | mm | 1400 | |||
MIN.MOULD HEIGHT | mm | 600 | |||
EJECTOR STROKE | mm | 360 | |||
EJECTOR FORCE | Kn | 260 | |||
EJECTOR NUMBER | N | 21 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 69+69 | |||
HEATING POWER | Kw | 62 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 13.5*3.1*3.2 | |||
MACHINE WEIGHT(ESTIMATE) | T | 65 | |||
1. Q: What is the product range?

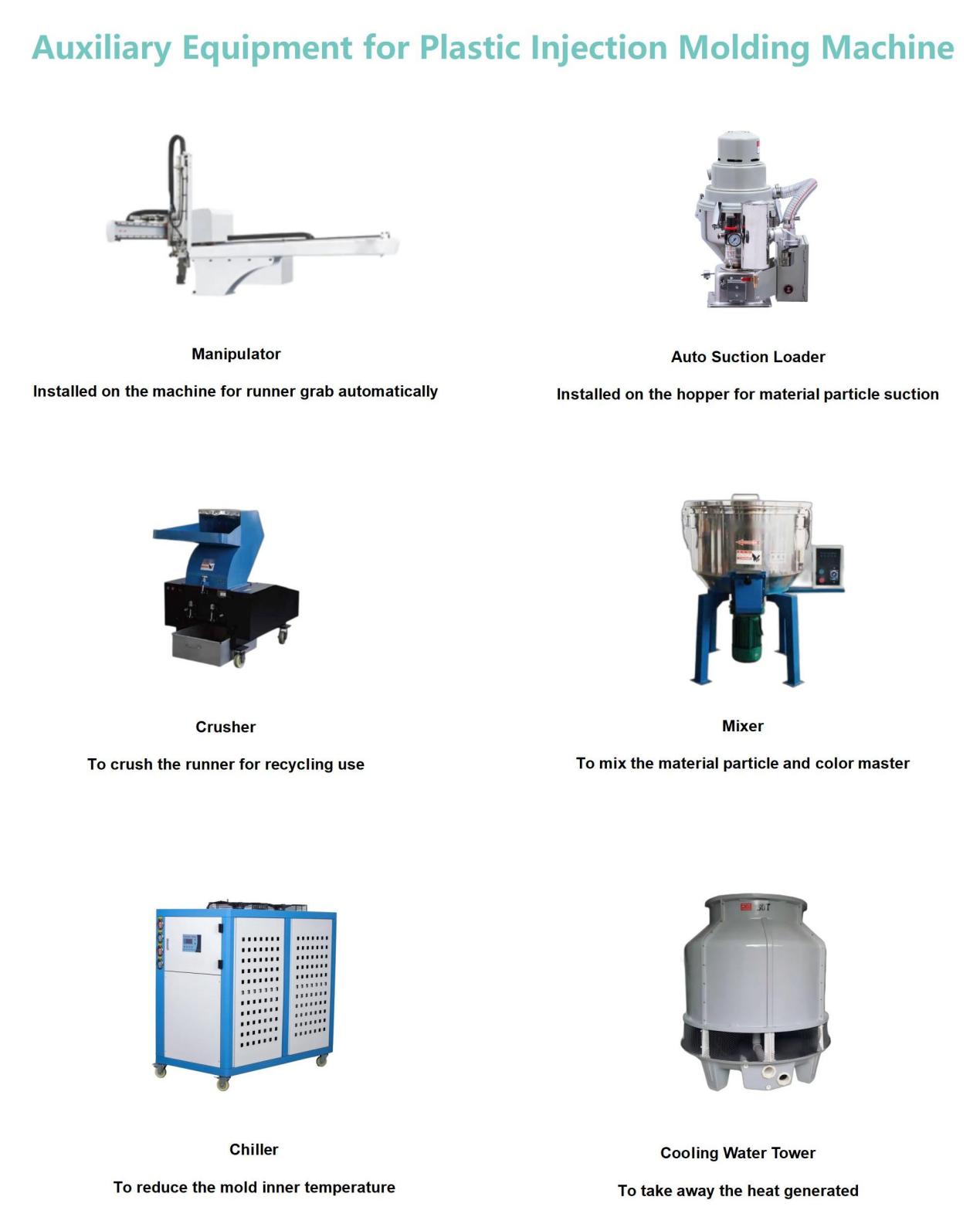

A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
