| Quantity: | |
|---|---|

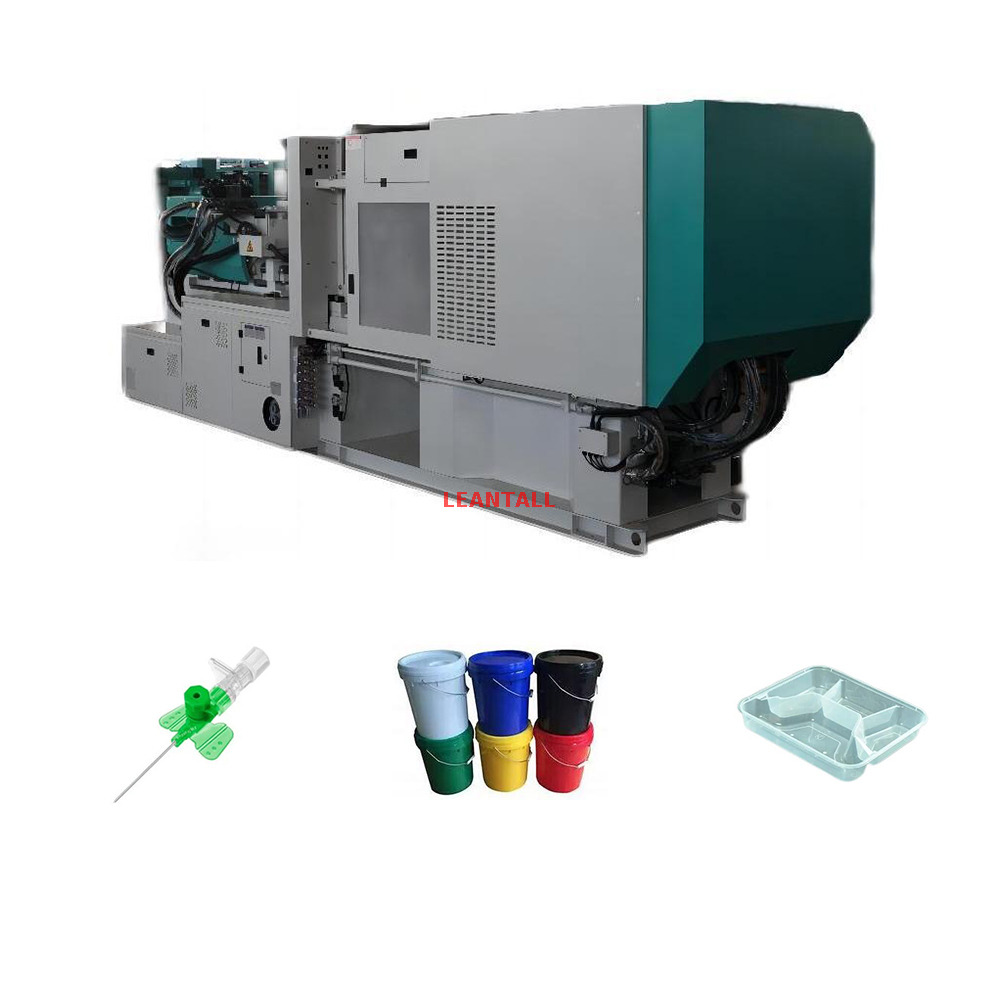

NT260
LEANTALL
8477101090
CLAMPING UNIT
INJECTION UNIT
Precision injection molding machines are designed to create parts with extremely tight tolerances and complex geometries. These machines are crucial for industries where even the smallest deviations in size or shape can result in product failure, such as in aerospace, medical devices, and electronics.
High-Precision Control Systems: Precision machines are equipped with advanced control technology that allows for micrometric control over the injection process. These systems monitor variables like injection speed, pressure, and temperature to ensure parts are molded to exact specifications every time.
Enhanced Stability: Precision molding requires machines to be stable and vibration-free during operation. High-quality motion systems and feedback loops help maintain this stability, allowing the machine to produce parts with little to no variation between cycles.
Micro-Molding Capabilities: Some precision molding machines are capable of producing micro parts with thinner-than-hair wall thicknesses, often used in industries like electronics and medical devices, where size constraints and high precision are critical.
Medical Devices: For producing implantable components, surgical instruments, and microfluidic devices, all of which require strict biocompatibility and precision.
Aerospace: Parts used in aviation systems and satellite components require precision molding due to the high-performance demands of these products.
Electronics: In electronics, precision injection molding is used to produce parts such as connectors, sensor housings, and microswitches that must fit into tiny, complex designs with extreme accuracy.
Precision injection molding machines are essential for industries that demand the highest level of accuracy and consistency, producing parts that meet exacting standards and perform reliably in critical applications.
Technical Parameter | |||||
Part | Name | Unit | NT260 | ||
Injection unit | SCREW DIAMETER | mm | 55 | 60 | 65 |
SCREW L/D RATIO | L/D | 23 | 21 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 677 | 805 | 945 | |
INJECTION WEIGHT(PS) | g | 616 | 732 | 860 | |
INJECTION PRESSURE | Mpa | 202 | 170 | 145 | |
INJECTION RATE | cm⊃3;/sec | 261 | 311 | 365 | |
PLASTICZATION CAPACITY(PS) | g/sec | 48 | 56 | 71 | |
INJECTION STROKE | mm | 285 | |||
INJECTION SPEED | Mm/sec | 110 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 2600 | ||
OPEN STROKE | mm | 570 | |||
SPACE BETWEEN TIE BARS | mm×mm | 580X580 | |||
MAX.MOULD HEIGHT | mm | 590 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 150 | |||
EJECTOR FORCE | Kn | 90 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 39 | |||
HEATING POWER | Kw | 18.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 6.0*1.55*2.2 | |||
MACHINE WEIGHT(ESTIMATE) | T | 8.6 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
