| Quantity: | |
|---|---|
NT140
LEANTALL
8477101090

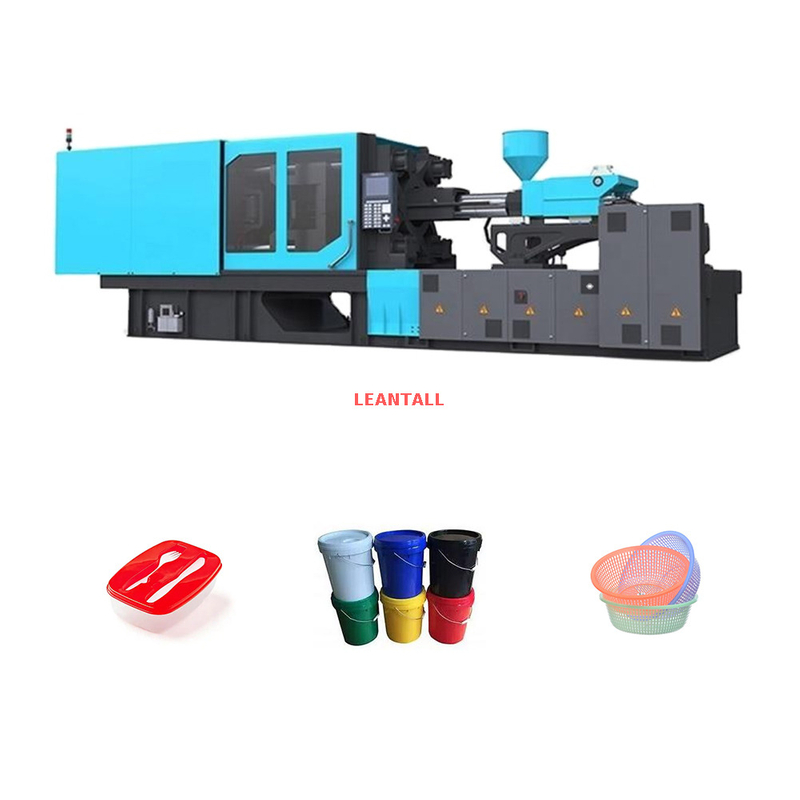

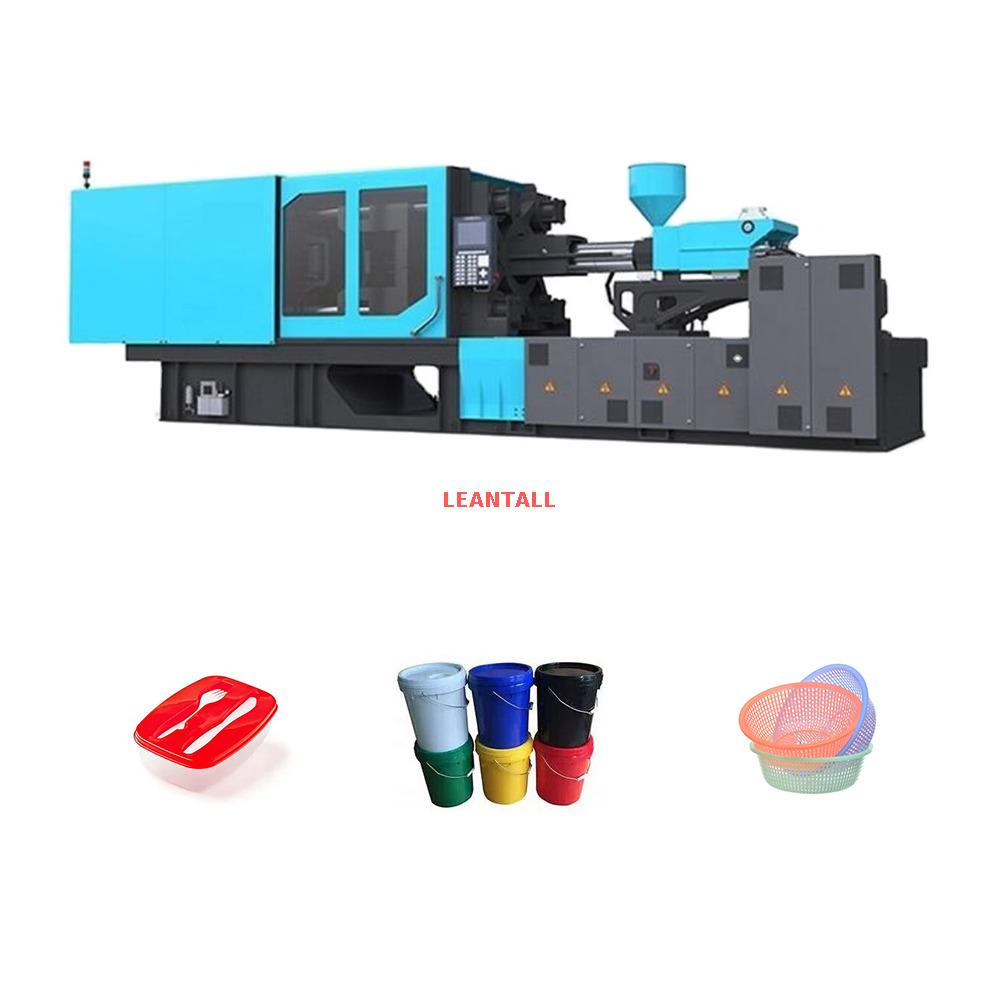

High-Speed Horizontal Plastic Injection Molding Machines are designed to meet the growing demand for rapid, large-scale production of plastic components, while maintaining high precision and efficiency. These machines are crucial in industries where speed and quality are of paramount importance, such as consumer goods, automotive parts, and medical devices.
Fast Cycle Times: One of the standout features of high-speed horizontal machines is their ability to produce parts quickly. They achieve shorter cycle times through advanced injection systems and optimized cooling channels, enabling the production of thousands of parts per hour.
Horizontal Configuration: The horizontal layout allows the machine to handle larger molds and more complex parts, making it ideal for applications in industries like packaging, automotive, and consumer electronics. This design also improves accessibility to the mold, simplifying maintenance and adjustments.
Precision and Control: Despite their speed, these machines do not compromise on accuracy. The use of closed-loop control systems, precise temperature regulation, and high-pressure injection systems ensures that the final products meet tight tolerances and maintain consistent quality across high-volume runs.
Energy Efficiency: Modern high-speed injection molding machines are equipped with energy-saving technologies that help reduce operational costs and improve overall sustainability.
Technical Parameter | |||||
Part | Name | Unit | NT140 | ||
Injection unit | SCREW DIAMETER | mm | 38 | 42 | 45 |
SCREW L/D RATIO | L/D | 22 | 20 | 18.5 | |
SHOT VOLUME(THEORETICAL) | CM3 | 221 | 270 | 310 | |
INJECTION WEIGHT(PS) | g | 201 | 245 | 282 | |
INJECTION PRESSURE | Mpa | 177 | 145 | 126 | |
INJECTION RATE | cm⊃3;/sec | 149 | 182 | 209 | |
PLASTICZATION CAPACITY(PS) | g/sec | 18 | 23 | 31 | |
INJECTION STROKE | mm | 195 | |||
INJECTION SPEED | Mm/sec | 132 | |||
SCREW SPEED | rpm | 250 | |||
Clamping unit | CLAMP FORCE | Kn | 1400 | ||
OPEN STROKE | mm | 390 | |||
SPACE BETWEEN TIE BARS | mm×mm | 417X417 | |||
MAX.MOULD HEIGHT | mm | 460 | |||
MIN.MOULD HEIGHT | mm | 160 | |||
EJECTOR STROKE | mm | 115 | |||
EJECTOR FORCE | Kn | 53 | |||
EJECTOR NUMBER | N | 5 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 18.5 | |||
HEATING POWER | Kw | 7.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 4.6*1.2*1.9 | |||
MACHINE WEIGHT(ESTIMATE) | T | 3.8 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
