| Quantity: | |
|---|---|
NT230
LEANTALL
8477101090

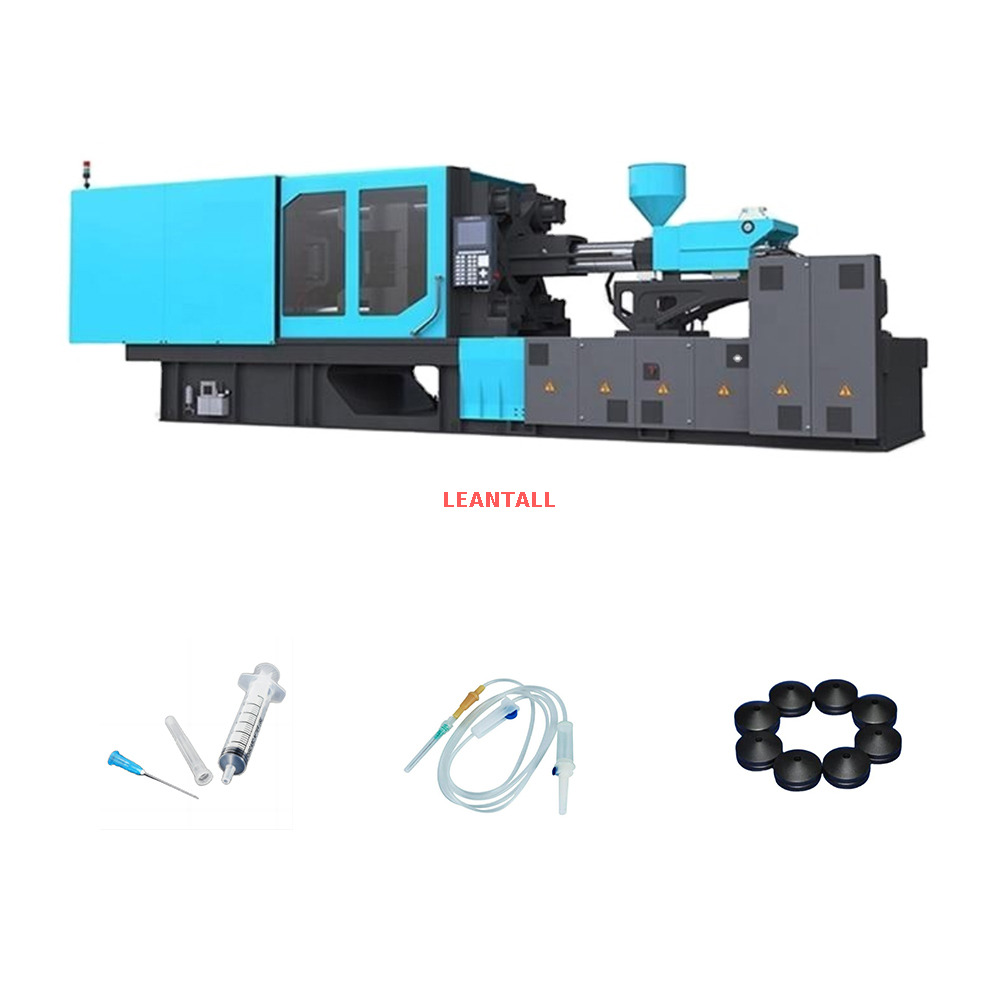

In the medical device industry, precision and reliability are non-negotiable, especially when manufacturing components for infusion sets, which are critical in healthcare settings. Injection molding machines for infusion set plastic parts are specifically engineered to meet stringent medical standards while ensuring sterility, precision, and repeatability.
Sterility and Cleanroom Compatibility: Molding machines used for medical applications, particularly for infusion sets, must operate in cleanroom environments to ensure that the parts produced are free from contaminants. These machines are often designed to meet ISO 13485 standards for medical devices, which govern cleanliness, sterilization, and quality control.
Precision Control: Infusion set components are typically small, intricate parts that require high precision to function correctly. These machines are equipped with advanced control systems that monitor injection pressure, temperature, and mold temperatures to ensure that parts are consistently produced with tight tolerances.
Material Compatibility: Infusion sets are typically made from biocompatible, medical-grade plastics such as polycarbonate (PC) and polypropylene (PP). Injection molding machines for these parts are specifically designed to handle these materials without degrading their integrity, ensuring they maintain the required strength, flexibility, and durability.
Infusion Sets: Molding parts such as tubing connectors, flow regulators, needles, and valves used in intravenous therapy and dialysis treatments.
Surgical Instruments: Certain surgical instruments and medical housings also require injection molding machines capable of handling precision and meeting stringent biocompatibility standards.
Diagnostic Equipment: Injection molding machines are used to produce parts for diagnostic devices that require highly precise and reliable components.
Injection molding machines for medical applications ensure that critical parts like those used in infusion sets are manufactured to meet rigorous standards of precision, safety, and sterility, providing healthcare professionals with reliable and safe tools for patient care.
Technical Parameter | |||||
Part | Name | Unit | NT230 | ||
Injection unit | SCREW DIAMETER | mm | 45 | 50 | 55 |
SCREW L/D RATIO | L/D | 22.2 | 20 | 18.2 | |
SHOT VOLUME(THEORETICAL) | CM3 | 397 | 490 | 594 | |
INJECTION WEIGHT(PS) | g | 361 | 445 | 540 | |
INJECTION PRESSURE | Mpa | 221 | 179 | 148 | |
INJECTION RATE | cm⊃3;/sec | 192 | 237 | 287 | |
PLASTICZATION CAPACITY(PS) | g/sec | 26 | 36 | 48 | |
INJECTION STROKE | mm | 250 | |||
INJECTION SPEED | Mm/sec | 121 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 2300 | ||
OPEN STROKE | mm | 490 | |||
SPACE BETWEEN TIE BARS | mm×mm | 530X530 | |||
MAX.MOULD HEIGHT | mm | 550 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 145 | |||
EJECTOR FORCE | Kn | 70 | |||
EJECTOR NUMBER | N | 9 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 29 | |||
HEATING POWER | Kw | 12.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 5.6*1.45*2.1 | |||
MACHINE WEIGHT(ESTIMATE) | T | 6.5 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
