NT100
LEANTALL
8477101090

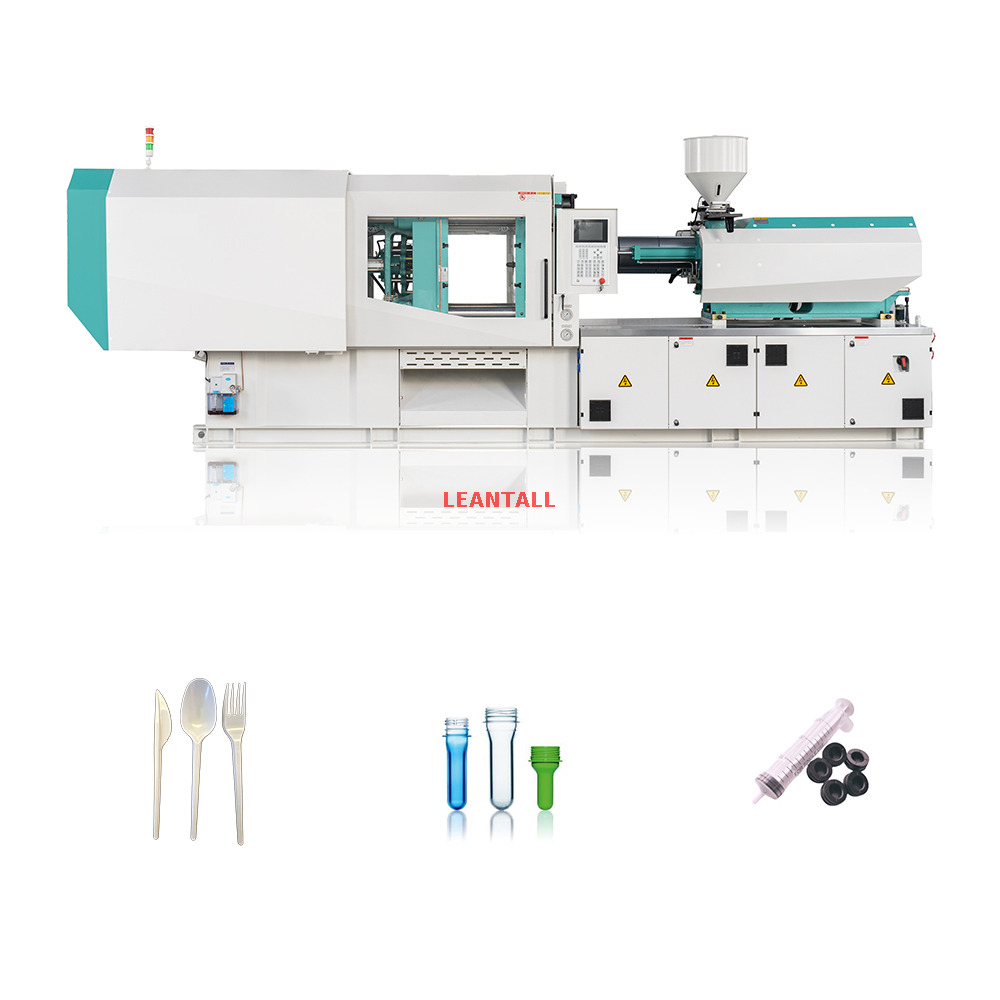

The Versatile Use Injection Molding Machine is designed to handle a wide range of materials and products, making it suitable for industries with diverse production needs.
Multi-Material Processing: These machines can work with a variety of thermoplastics, thermosets, and even multi-material combinations, giving manufacturers flexibility in their production.
Multi-Functionality: From producing small intricate components to large molded parts, versatile machines can easily adapt to different molding requirements.
Easy Adaptation: With customizable mold designs and settings, these machines are flexible enough to switch between different products and applications.
Diverse Industries: Suitable for automotive, consumer goods, electronics, medical devices, and packaging industries.
Small and Large Batches: Capable of handling both high-volume runs and smaller, custom orders.
Modern injection molding machines have evolved to meet the demands of increasingly complex manufacturing processes. Whether you're looking for high-speed production, energy efficiency, precision, or ease of operation, there's a machine designed to suit your needs. With innovations like labor-saving systems, fast injection speeds, and low power consumption, these machines are revolutionizing the way plastic parts are produced, making them an essential component in manufacturing across numerous industries.
Technical Parameter | |||||
Part | Name | Unit | NT100 | ||
Injection unit | SCREW DIAMETER | mm | 32 | 35 | 38 |
SCREW L/D RATIO | L/D | 22 | 20 | 18.5 | |
SHOT VOLUME(THEORETICAL) | CM3 | 133 | 158 | 187 | |
INJECTION WEIGHT(PS) | g | 121 | 144 | 170 | |
INJECTION PRESSURE | Mpa | 203 | 170 | 144 | |
INJECTION RATE | cm⊃3;/sec | 83 | 100 | 117 | |
PLASTICZATION CAPACITY(PS) | g/sec | 9 | 12 | 15 | |
INJECTION STROKE | mm | 165 | |||
INJECTION SPEED | Mm/sec | 104 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 1000 | ||
OPEN STROKE | mm | 330 | |||
SPACE BETWEEN TIE BARS | mm×mm | 360X360 | |||
MAX.MOULD HEIGHT | mm | 380 | |||
MIN.MOULD HEIGHT | mm | 150 | |||
EJECTOR STROKE | mm | 100 | |||
EJECTOR FORCE | Kn | 33 | |||
EJECTOR NUMBER | N | 5 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 11 | |||
HEATING POWER | Kw | 7 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 4.25*1.1*1.85 | |||
MACHINE WEIGHT(ESTIMATE) | T | 3.1 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
