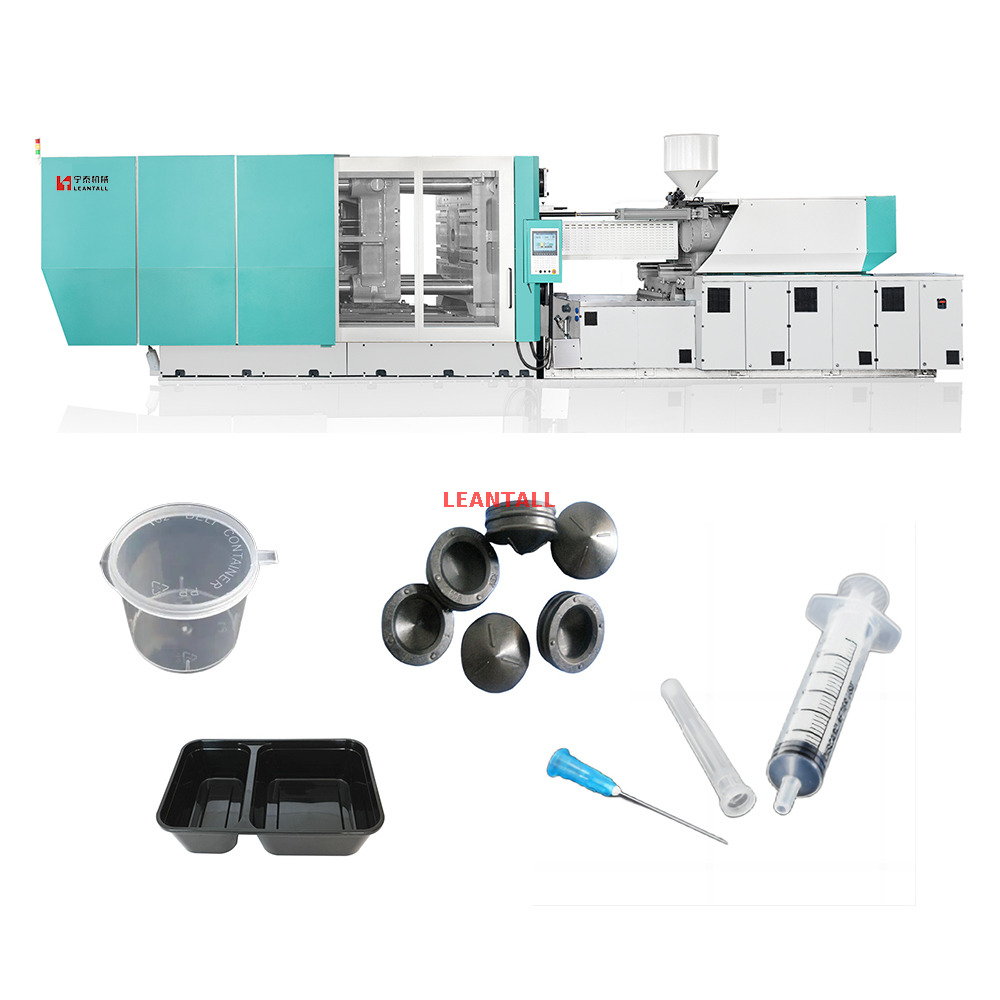

NT260
LEANTALL
8477101090
CLAMPING UNIT
INJECTION UNIT
Before injection starts—and during the injection and holding stages—the mold must remain tightly closed to withstand the high pressure of the molten plastic. This is the role of the clamping unit, one of the injection molding machine’s most critical components. The clamping unit uses hydraulic cylinders or electric motors to apply a force (measured in tons) that keeps the mold halves pressed together. The required clamping force depends on the size of the mold and the injection pressure: for example, a small mold for electronic connectors may need 100–300 tons of clamping force, while a large mold for automotive bumpers requires 800–1,700 tons.
After the mold is filled, the machine enters the holding stage. During this phase, the screw maintains a lower pressure (called “holding pressure”) on the molten plastic for a short period (usually a few seconds to a minute). This pressure compensates for the shrinkage that occurs as the plastic cools—ensuring the mold cavity remains full and the product retains its intended shape and dimensions. Without holding pressure, the plastic would shrink away from the mold walls, resulting in warped or incomplete parts.
Technical Parameter | |||||
Part | Name | Unit | NT260 | ||
Injection unit | SCREW DIAMETER | mm | 55 | 60 | 65 |
SCREW L/D RATIO | L/D | 23 | 21 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 677 | 805 | 945 | |
INJECTION WEIGHT(PS) | g | 616 | 732 | 860 | |
INJECTION PRESSURE | Mpa | 202 | 170 | 145 | |
INJECTION RATE | cm⊃3;/sec | 261 | 311 | 365 | |
PLASTICZATION CAPACITY(PS) | g/sec | 48 | 56 | 71 | |
INJECTION STROKE | mm | 285 | |||
INJECTION SPEED | Mm/sec | 110 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 2600 | ||
OPEN STROKE | mm | 570 | |||
SPACE BETWEEN TIE BARS | mm×mm | 580X580 | |||
MAX.MOULD HEIGHT | mm | 590 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 150 | |||
EJECTOR FORCE | Kn | 90 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 39 | |||
HEATING POWER | Kw | 18.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 6.0*1.55*2.2 | |||
MACHINE WEIGHT(ESTIMATE) | T | 8.6 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
