| Quantity: | |
|---|---|

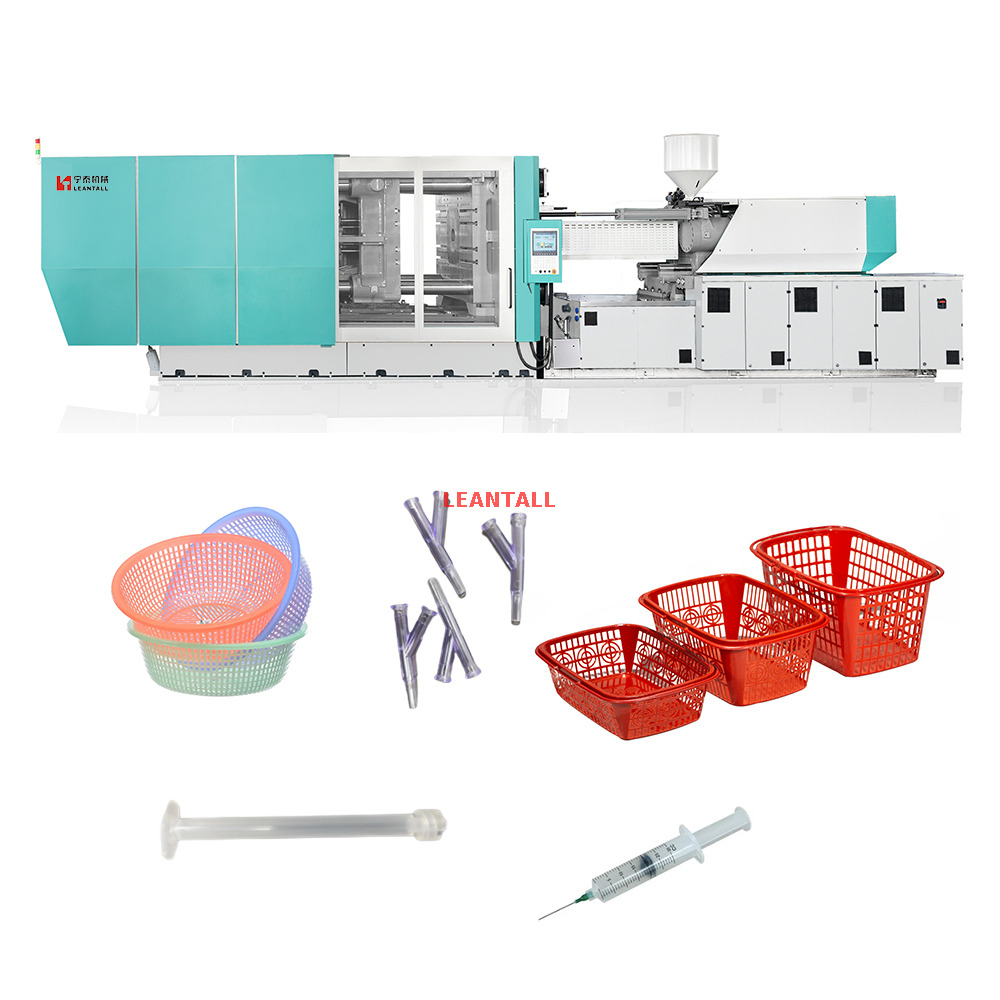

NT280
LEANTALL
8477101090
CLAMPING UNIT
INJECTION UNIT
The process begins with the feeding of solid plastic pellets into the machine’s hopper—a large, funnel-shaped container that stores the raw material. From the hopper, the pellets gravity-feed into a horizontal cylindrical barrel equipped with a rotating screw. The screw, driven by a motor, acts as both a conveyor and a heating element: as it rotates, it pushes the pellets forward through the barrel, while heaters wrapped around the barrel’s exterior apply controlled heat.
The temperature of the barrel is carefully graded (increasing from the hopper end to the injection nozzle) to ensure gradual melting of the plastic, preventing overheating or degradation. For example, polyethylene (PE) typically melts at 160–200°C, while high-performance plastics like polycarbonate (PC) require temperatures of 220–300°C. As the plastic melts, it transforms into a viscous, fluid-like state called “melt.” The rotating screw also compresses the melt, removing air bubbles and ensuring uniformity—critical for avoiding defects like voids in the final product. Once the barrel contains enough melt for one cycle (measured by the screw’s position), the screw stops rotating, and the melting stage ends.
Technical Parameter | |||||
Part | Name | Unit | NT280 | ||
Injection unit | SCREW DIAMETER | mm | 55 | 60 | 65 |
SCREW L/D RATIO | L/D | 22 | 20 | 18.3 | |
SHOT VOLUME(THEORETICAL) | CM3 | 677 | 805 | 945 | |
INJECTION WEIGHT(PS) | g | 616 | 732 | 860 | |
INJECTION PRESSURE | Mpa | 200 | 168 | 143 | |
INJECTION RATE | cm⊃3;/sec | 266 | 316 | 371 | |
PLASTICZATION CAPACITY(PS) | g/sec | 48 | 56 | 71 | |
INJECTION STROKE | mm | 285 | |||
INJECTION SPEED | Mm/sec | 112 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 2800 | ||
OPEN STROKE | mm | 590 | |||
SPACE BETWEEN TIE BARS | mm×mm | 630X580 | |||
MAX.MOULD HEIGHT | mm | 570 | |||
MIN.MOULD HEIGHT | mm | 190 | |||
EJECTOR STROKE | mm | 160 | |||
EJECTOR FORCE | Kn | 101 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 39 | |||
HEATING POWER | Kw | 18.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 6.2*1.6*2.35 | |||
MACHINE WEIGHT(ESTIMATE) | T | 8.8 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
