| Quantity: | |
|---|---|
NT170
LEANTALL
8477101090

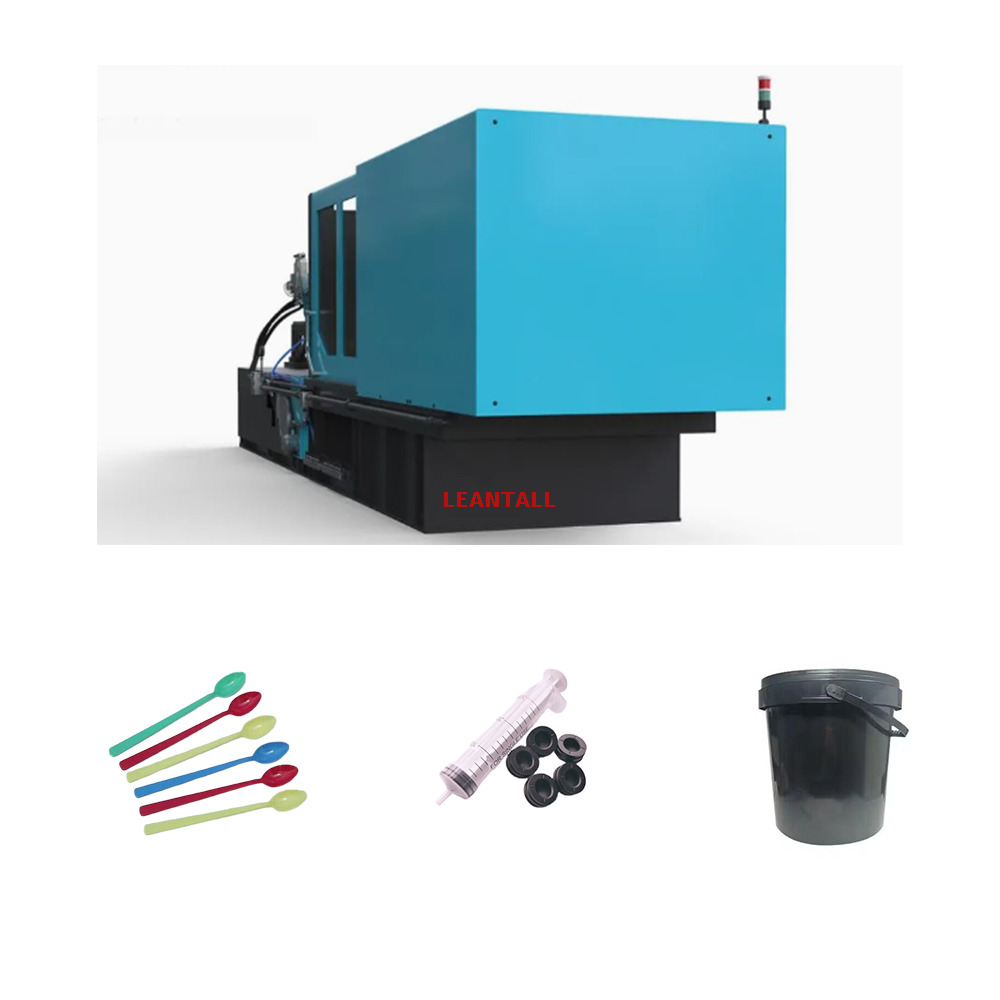

The food container injection molding machine is designed specifically to produce plastic containers for packaging food products. Given the stringent requirements in food safety, hygiene, and packaging durability, these machines are tailored to meet the high standards of the food industry.
Food-Grade Materials: These machines are built to process materials that are food-safe, such as polypropylene (PP), high-density polyethylene (HDPE), and PET (Polyethylene Terephthalate). These materials must comply with regulatory requirements like FDA standards, ensuring that no harmful chemicals leach into the food.
Customizable Molds: The machines are capable of creating a wide variety of container shapes and sizes, from small portion cups to large take-out containers. Custom molds allow manufacturers to produce unique packaging solutions.
Air-Tight Sealing: Advanced molding techniques allow for high-precision seals that preserve the freshness of food products, preventing leaks and contamination.
Automated Quality Control: To ensure that each food container is manufactured to high standards, these machines often incorporate automated inspection systems to check for defects in molding, such as warping or surface imperfections.
Food Packaging: Containers used for packaging ready-to-eat meals, snacks, or fresh produce.
Takeaway Services: Producing containers used by fast food chains, meal delivery services, and restaurants.
Food Safety Compliance: Ensuring packaging meets health and safety standards for food storage and transport.
Technical Parameter | |||||
Part | Name | Unit | NT170 | ||
Injection unit | SCREW DIAMETER | mm | 42 | 45 | 50 |
SCREW L/D RATIO | L/D | 21.4 | 20 | 18 | |
SHOT VOLUME(THEORETICAL) | CM3 | 325 | 373 | 461 | |
INJECTION WEIGHT(PS) | g | 295 | 339 | 419 | |
INJECTION PRESSURE | Mpa | 174 | 152 | 123 | |
INJECTION RATE | cm⊃3;/sec | 191 | 219 | 270 | |
PLASTICZATION CAPACITY(PS) | g/sec | 23 | 31 | 42 | |
INJECTION STROKE | mm | 235 | |||
INJECTION SPEED | Mm/sec | 138 | |||
SCREW SPEED | rpm | 240 | |||
Clamping unit | CLAMP FORCE | Kn | 1700 | ||
OPEN STROKE | mm | 465 | |||
SPACE BETWEEN TIE BARS | mm×mm | 470X470 | |||
MAX.MOULD HEIGHT | mm | 510 | |||
MIN.MOULD HEIGHT | mm | 180 | |||
EJECTOR STROKE | mm | 130 | |||
EJECTOR FORCE | Kn | 45 | |||
EJECTOR NUMBER | N | 5 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 23 | |||
HEATING POWER | Kw | 9.9 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 5.3*1.35*2.0 | |||
MACHINE WEIGHT(ESTIMATE) | T | 5.1 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
