| Quantity: | |
|---|---|

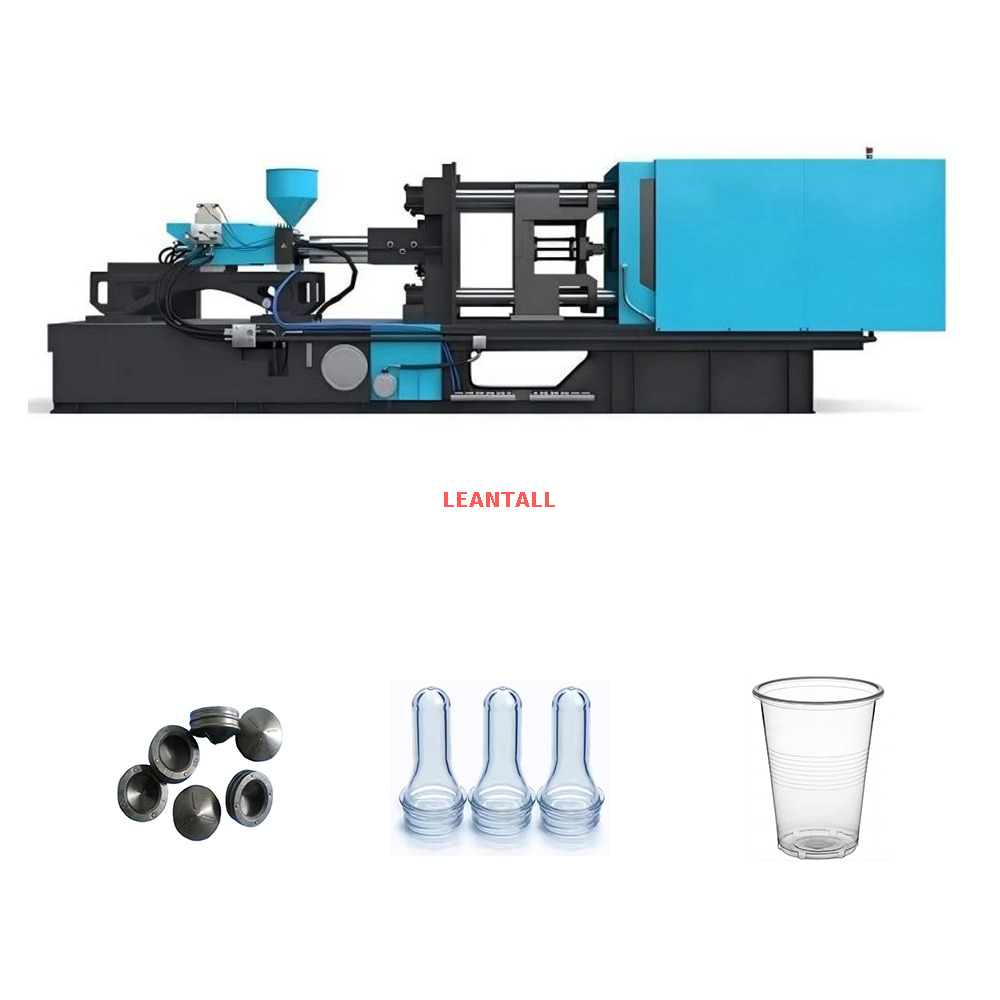

NT260
LEANTALL
8477101090
CLAMPING UNIT
INJECTION UNIT
An injection molding machine for medical applications is a machine designed to produce a wide range of medical products, including diagnostic equipment, surgical tools, and implants. These machines are tailored to meet strict regulatory requirements, ensuring that products are safe, durable, and compliant with industry standards.
Regulatory Compliance: These machines must comply with industry standards such as ISO 13485, a certification for medical device quality management systems. They are also built to meet FDA regulations for manufacturing processes and material standards.
High Precision and Tolerance: Medical devices often require parts with tight tolerances and exact specifications. Injection molding machines for the medical field are equipped with advanced systems to ensure accuracy and repeatability.
Advanced Materials: These machines work with advanced polymers and biocompatible materials such as medical-grade silicones, polycarbonate (PC), and PEEK (Polyether Ether Ketone), which are used in applications ranging from surgical instruments to implants.
Surgical Tools: Manufacturing components like handles and blades for surgical instruments.
Diagnostic Equipment: Creating parts for diagnostic devices such as catheters, test kits, and blood pressure cuffs.
Orthopedic Implants: Producing parts for joint replacements, prosthetics, and other medical implants.
Technical Parameter | |||||
Part | Name | Unit | NT260 | ||
Injection unit | SCREW DIAMETER | mm | 55 | 60 | 65 |
SCREW L/D RATIO | L/D | 23 | 21 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 677 | 805 | 945 | |
INJECTION WEIGHT(PS) | g | 616 | 732 | 860 | |
INJECTION PRESSURE | Mpa | 202 | 170 | 145 | |
INJECTION RATE | cm⊃3;/sec | 261 | 311 | 365 | |
PLASTICZATION CAPACITY(PS) | g/sec | 48 | 56 | 71 | |
INJECTION STROKE | mm | 285 | |||
INJECTION SPEED | Mm/sec | 110 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 2600 | ||
OPEN STROKE | mm | 570 | |||
SPACE BETWEEN TIE BARS | mm×mm | 580X580 | |||
MAX.MOULD HEIGHT | mm | 590 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 150 | |||
EJECTOR FORCE | Kn | 90 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 39 | |||
HEATING POWER | Kw | 18.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 6.0*1.55*2.2 | |||
MACHINE WEIGHT(ESTIMATE) | T | 8.6 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
