| Quantity: | |
|---|---|
NT580
LEANTALL
8477101090

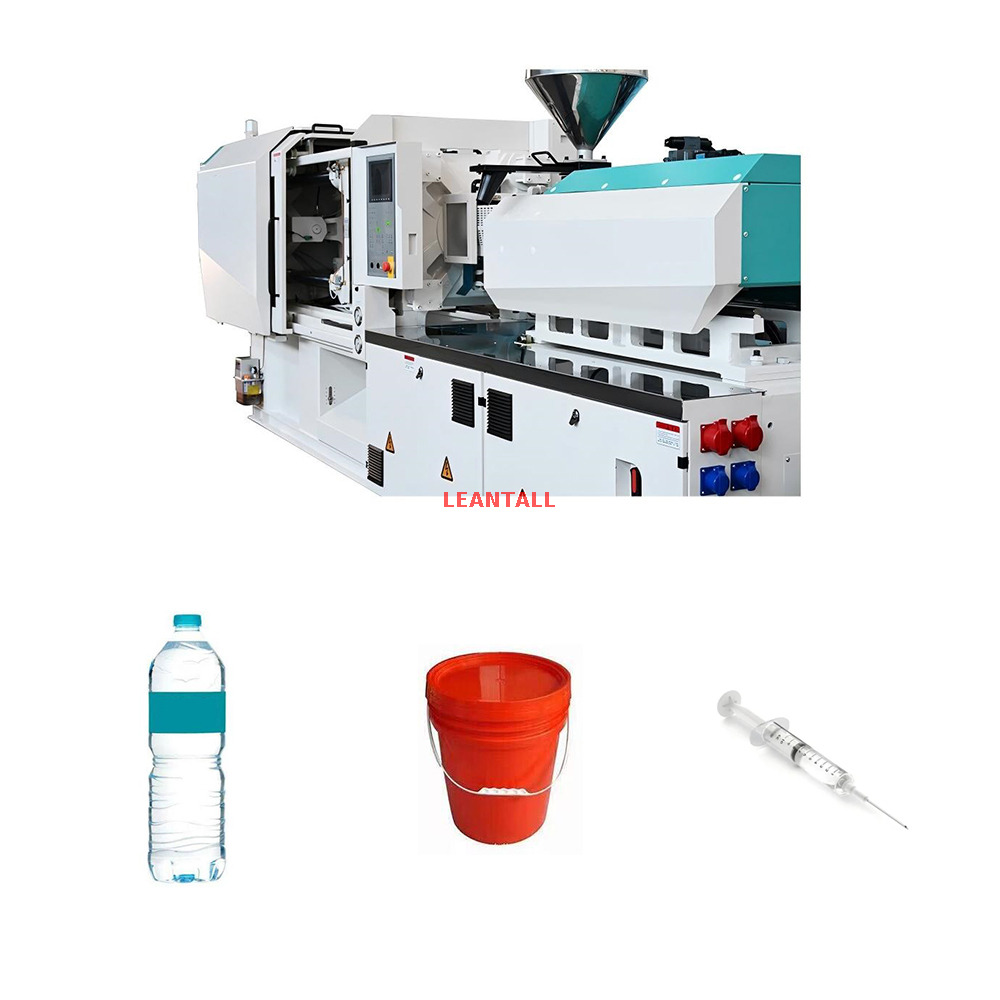

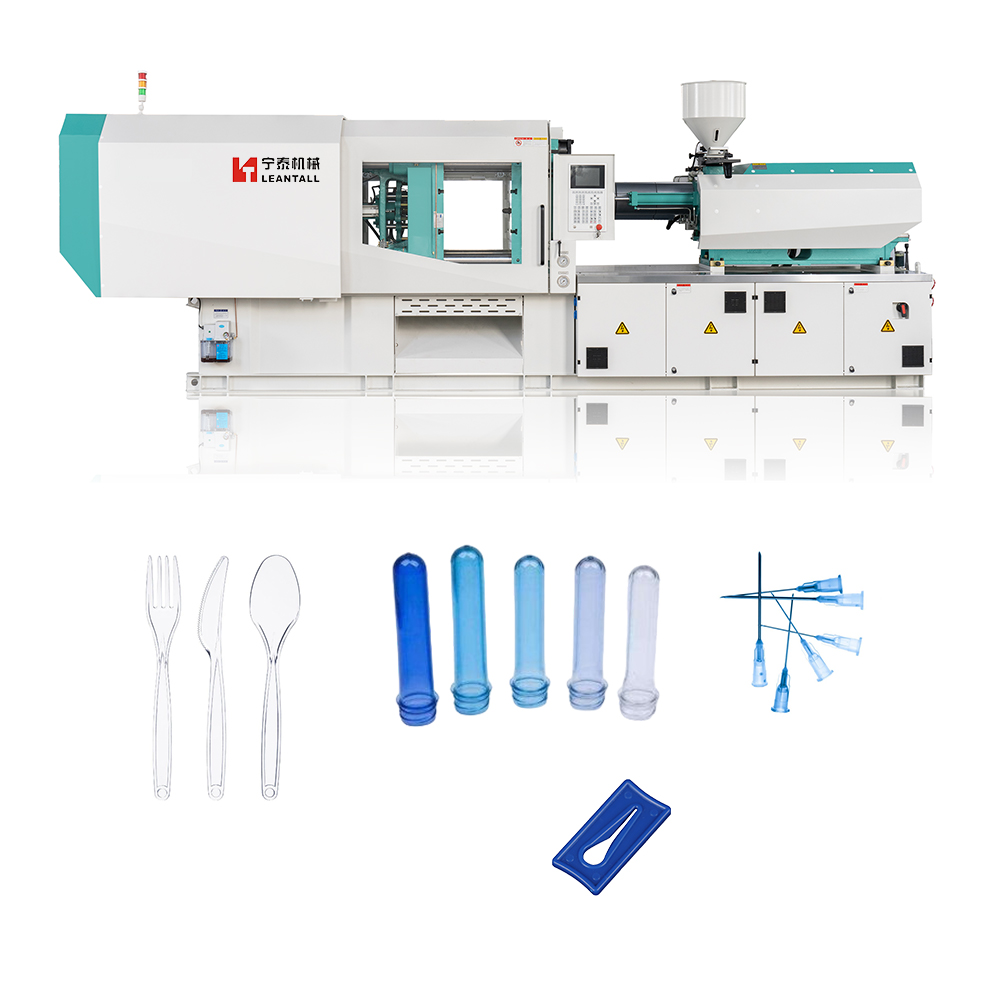

The Standard Injection Molding Machine is the workhorse of the injection molding industry. It is designed for general-purpose production, handling a wide variety of materials and parts. These machines are highly reliable and versatile, making them ideal for industries with more conventional production needs.
Versatility: These machines can handle a wide range of thermoplastics and thermosetting materials.
Ease of Use: With straightforward control systems, standard machines are often easier to operate than more specialized models, making them popular in general manufacturing.
Reliable Performance: They provide consistent and reliable performance across a range of products and applications, even for long production runs.

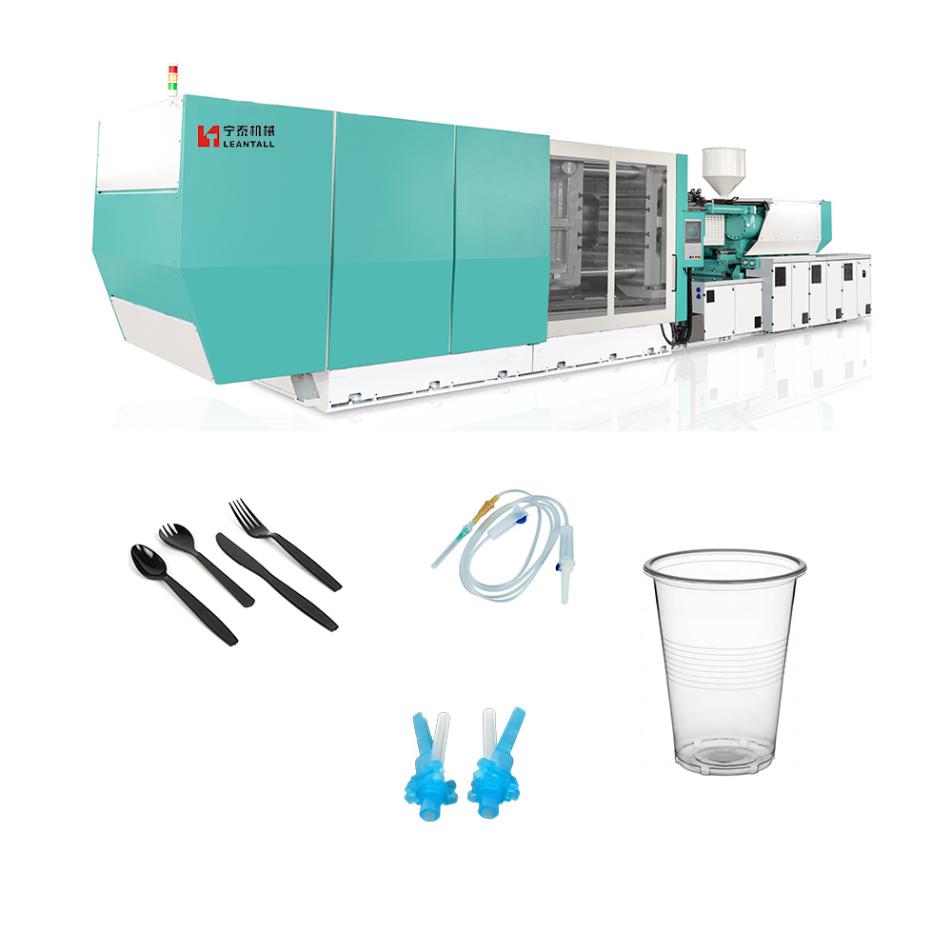

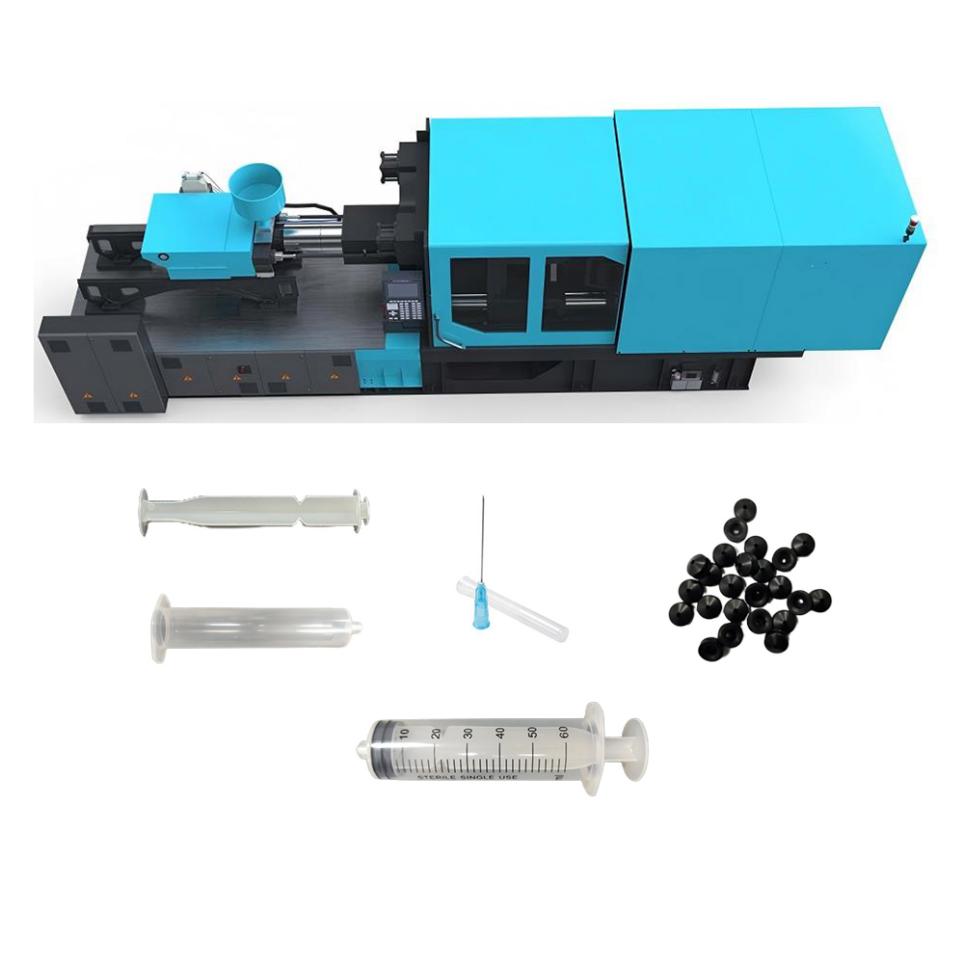

Consumer Goods: Ideal for producing common products like plastic bottles, containers, and toys.
Automotive Components: Used for producing standard automotive parts, such as interior panels, dashboard components, and trim pieces.
Packaging: Standard machines are often used to produce basic packaging products such as plastic trays and blister packs.
Technical Parameter | |||||
Part | Name | Unit | NT580 | ||
Injection unit | SCREW DIAMETER | mm | 80 | 85 | 90 |
SCREW L/D RATIO | L/D | 21.4 | 20 | 19 | |
SHOT VOLUME(THEORETICAL) | cm3 | 2010 | 2269 | 2544 | |
INJECTION WEIGHT(PS) | g | 1829 | 2064 | 2315 | |
INJECTION PRESSURE | Mpa | 174 | 154 | 137 | |
INJECTION RATE | cm⊃3;/sec | 517 | 584 | 655 | |
PLASTICZATION CAPACITY(PS) | g/sec | 93 | 110 | 133 | |
INJECTION STROKE | mm | 400 | |||
INJECTION SPEED | Mm/sec | 103 | |||
SCREW SPEED | rpm | 150 | |||

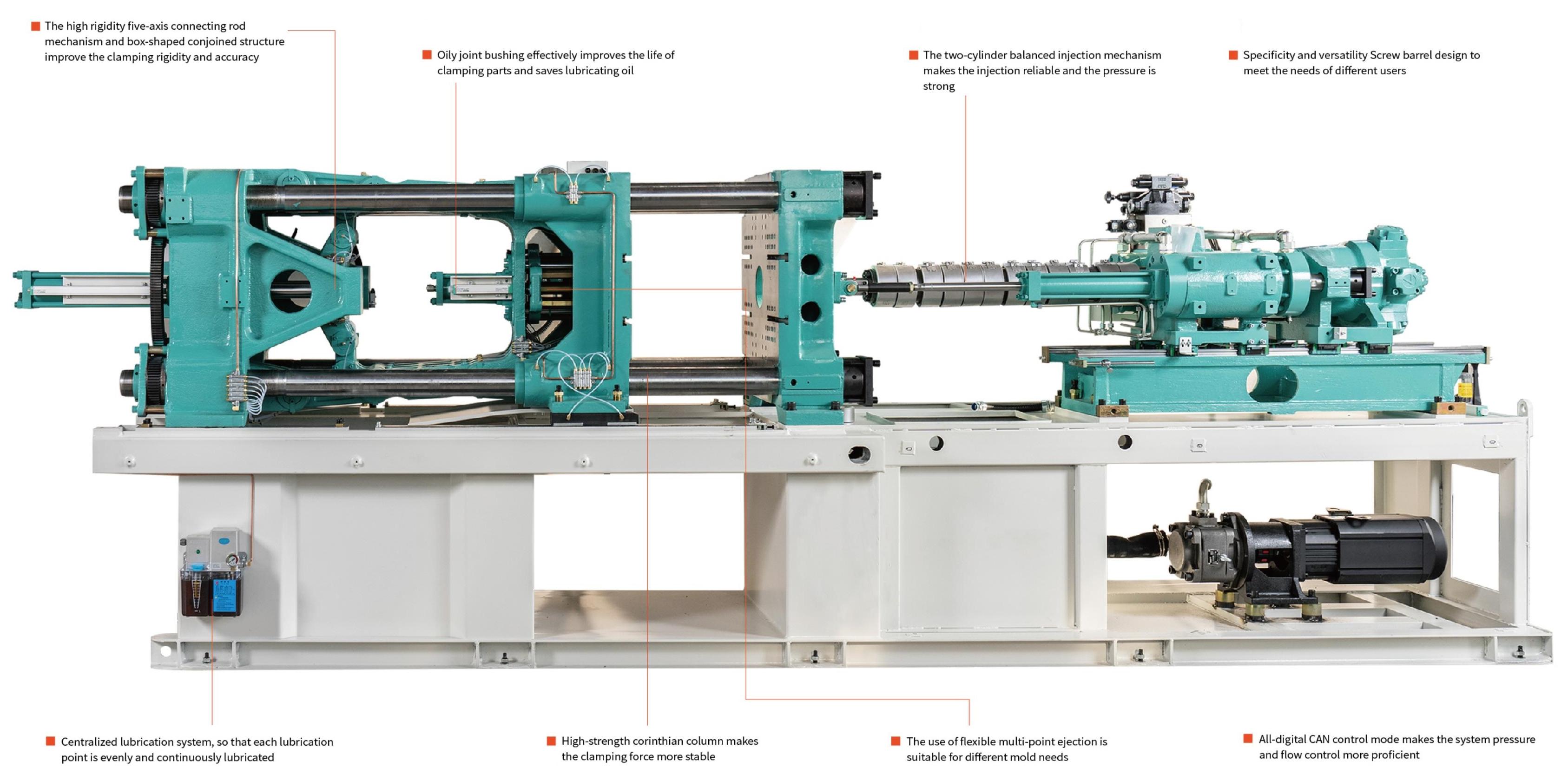

Clamping unit | CLAMP FORCE | Kn | 5800 | ||
OPEN STROKE | mm | 850 | |||
SPACE BETWEEN TIE BARS | mm×mm | 870X810 | |||
MAX.MOULD HEIGHT | mm | 830 | |||
MIN.MOULD HEIGHT | mm | 330 | |||
EJECTOR STROKE | mm | 235 | |||
EJECTOR FORCE | Kn | 152 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 65 | |||
HEATING POWER | Kw | 33.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 8.6*2.3*2.6 | |||
MACHINE WEIGHT(ESTIMATE) | T | 20 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
