Manufacturing medical disposables leaves zero room for error. A single micro-defect in tooling triggers batch failures, regulatory non-compliance, and severe patient safety risks. Scaling production for high-volume disposables like syringes, IV components, and blood tubes creates immediate friction on the shop floor. Engineers must balance the demand for rapid, high-capacity output with the strict dimensional tolerances mandated by FDA and ISO standards. The mold design phase represents the absolute failure or success point in this process. Flaws introduced here compound exponentially during mass production, rendering subsequent validation efforts useless. A comprehensive design checklist provides a rigid framework to evaluate tooling architecture, mitigate production risks, and ensure seamless regulatory validation. By systematically addressing cleanroom requirements, rheological behavior, and machine compatibility, manufacturers can engineer tooling that performs flawlessly under continuous operation.
Regulatory Alignment Dictates Design: Tooling must be designed specifically for cleanroom environments (ISO Class 7/8) and FDA/ISO compliance from day one.
Simulation Precedes Steel: Comprehensive Design for Manufacturability (DFM) and Moldflow analysis are mandatory to predict shear stress, weld lines, and core deflection before manufacturing begins.
Material-Tooling Synergy is Non-Negotiable: The specific shrinkage rates and flow behaviors of medical-grade resins dictate gating, venting, and cooling strategies.
Validation (IQ/OQ/PQ) Starts at Design: A successful medical injection mold is built to pass rigorous Installation, Operational, and Performance Qualification protocols.

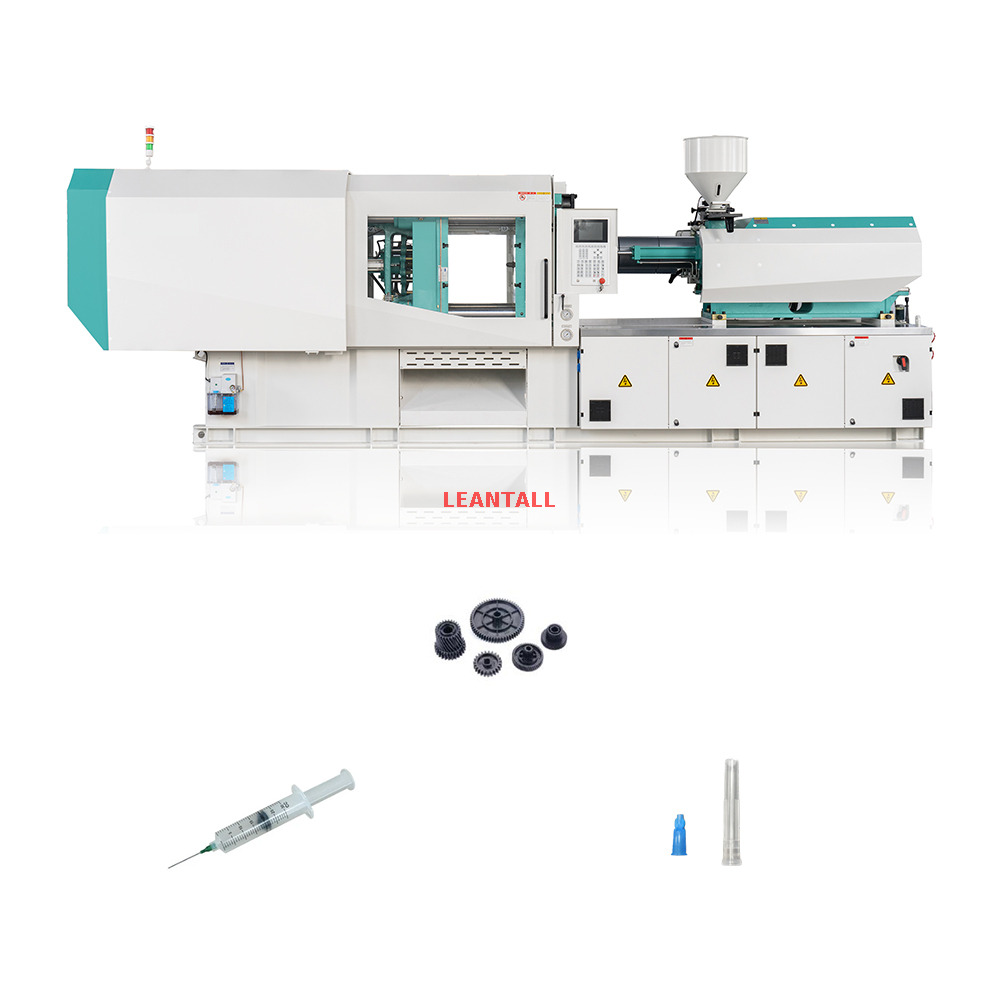

Machine Compatibility Impacts Yield: Mold design must perfectly align with the specifications of the chosen medical injection molding machine to optimize cycle times and prevent flash.
Tooling destined for ISO Class 7 or 8 cleanrooms requires specific structural modifications that go far beyond standard industrial practices. Standard molds generate airborne particulates through metal-on-metal friction, polymer off-gassing, and lubricant breakdown. Cleanroom molds must eliminate these contamination sources entirely to maintain the integrity of the manufacturing environment. We specify oil-free mechanisms across the entire tool architecture. This involves utilizing self-lubricating wear plates made from graphite-impregnated bronze and designing enclosed lubrication systems. These systems contain specialized, low-outgassing greases within sealed pockets, preventing any migration to the molding surface or the surrounding air.
Surface treatments play a critical role in particulate reduction and tool longevity. Specialized plating, such as electroless nickel or hard chrome, reduces friction on moving components while preventing oxidation. Stainless steel selection forms the absolute foundation of cleanroom tooling. Grades like 420 or 440C stainless steel provide the necessary corrosion resistance. Molds face frequent exposure to harsh medical-grade sterilants, hydrogen peroxide vapor, and aggressive washdown procedures. High-chromium steel hardened to 50-54 HRC prevents surface degradation, maintaining the pristine cavity finishes required for optical clarity in medical devices. If you use standard P20 steel in a cleanroom, the tool will pit and rust within weeks, destroying the parting line and causing unacceptable flash.
Medical devices rely heavily on USP Class VI and ISO 10993 compliant resins. Materials like Polycarbonate (PC), Polypropylene (PP), Polyetheretherketone (PEEK), and medical-grade silicones exhibit unique rheological properties. These properties directly influence mold shrinkage calculations, draft angle specifications, and thermal management strategies. PEEK, for instance, requires exceptionally high mold temperatures, often exceeding 160°C. This demands steel alloys capable of maintaining thermal stability without warping or losing hardness, as well as high-temperature seals like Viton instead of standard nitrile O-rings.
Medical Grade Resin | Typical Shrinkage Rate | Mold Temperature Requirement | Tooling Implication |
|---|---|---|---|
Polycarbonate (PC) | 0.5% - 0.7% | 80°C - 120°C | Requires robust heating cartridges and high-polish cavity finishes for optical clarity. |
Polypropylene (PP) | 1.5% - 2.0% | 20°C - 60°C | High shrinkage demands precise draft angles and aggressive cooling to prevent warpage. |
PEEK | 1.0% - 1.5% | 160°C - 200°C | Requires specialized insulation boards and high-temperature metallic seals. |
The relationship between the melt temperature of medical plastics and tooling steel dictates the entire thermal management strategy. High-temperature resins necessitate specialized insulation boards between the mold and the machine platens to prevent heat transfer into the machine casting. Furthermore, many medical resins are highly shear-sensitive. Excessive shear during the injection phase causes material degradation, physically altering the polymer's biocompatibility profile and mechanical strength. Tooling must feature optimized runner diameters and generous gate sizes to minimize shear stress, preserving the resin's structural and chemical integrity from the barrel to the cavity.
Cutting steel without mathematical validation guarantees failure on the shop floor. Rheological simulation predicts fill patterns, shear rates, and volumetric shrinkage across complex medical geometries. Engineers use Moldflow analysis to visualize exactly how molten polymer behaves under pressure. This data identifies potential air traps and weld lines long before physical machining occurs. Weld lines represent structural weak points and potential harboring grounds for bacteria, making them unacceptable in critical fluid-path components.
Material Characterization: Input the exact resin data card into the simulation software to account for specific viscosity and thermal properties.
Gate Location Optimization: Run iterative simulations to find the optimal gate placement that minimizes flow length and pressure drop.
Cooling Circuit Analysis: Map the thermal extraction rate to ensure uniform cooling and prevent differential shrinkage across the part.
Warpage Prediction: Analyze the volumetric shrinkage variance to predict and counteract potential part deformation.
Simulation allows engineers to relocate weld lines away from structurally or visually critical areas of the device. For example, moving a weld line away from a luer lock thread prevents mechanical failure during clinical use. Additionally, simulation mathematically balances runner systems. A perfectly balanced runner ensures all cavities fill simultaneously under identical pressure. This uniformity is the core requirement for producing consistent medical plastic parts across high-cavitation layouts.
Transitioning from a single-cavity prototype to a 32, 64, or 128-cavity production tool introduces massive fluid dynamics challenges. A high-volume syringe injection mold requires perfectly balanced, naturally symmetrical runner systems. Artificial balancing, which relies on varying gate sizes to force uniform filling, fails under the strict processing windows of medical resins. Natural symmetry, often achieved through an H-pattern runner layout, ensures uniform fill pressure and identical melt residence time across all cavities.
Engineers must evaluate the trade-offs between radial and linear cavity layouts. Radial layouts provide excellent natural balance and uniform thermal distribution, making them ideal for extremely tight-tolerance components. However, they consume significant platen space and complicate maintenance access for technicians. Linear layouts maximize cavity density but risk thermal expansion discrepancies across the mold base. Proper layout selection depends entirely on the specific resin viscosity, the dimensional tolerances of the disposable component, and the physical constraints of the molding machine.
Deep-draw medical disposables, such as pipette tips, blood tubes, and syringe barrels, face extreme risks of core pin deflection. High injection pressures push against the unsupported end of the core pin. If the pressure is unequal due to improper gating or uneven wall thickness, the pin bends. This core shift results in compromised structural integrity, inaccurate fluid volume capacity, and parts that fail automated assembly checks.
Design interventions mitigate core shift through strict length-to-diameter (L/D) ratio optimization. When L/D ratios exceed 3:1, engineers implement interlocking core features. These features, such as taper locks, anchor the tip of the core pin into the cavity block, pre-loading the pin to prevent lateral movement. High-stiffness materials, such as beryllium copper, replace standard steel for core pins. Beryllium copper offers superior rigidity and exceptional heat transfer, cooling the deep-draw part rapidly to solidify the plastic and resist deflection. Symmetrical gating and profiled injection speeds work in tandem with these mechanical designs to equalize pressure around the core pin during the critical initial fill stage.
Gate design dictates part quality, cycle time, and post-processing requirements. Medical disposables demand vestige-free surfaces to prevent tissue trauma and ensure secure fluid seals. Engineers evaluate hot runners, cold runners, sub-gates, and valve gates based on the specific resin and part geometry.
Gating Strategy | Best Application | Vestige Risk | Particulate Generation |
|---|---|---|---|
Valve Gate (Hot Runner) | Fluid-path disposables, syringes | Very Low (<0.05mm) | None |
Sub-Gate (Cold Runner) | Non-critical structural components | Moderate | Low to Moderate |
Standard Hot Drop | Thick-walled casings, handles | High | Low |
Valve gating is frequently mandated for fluid-path disposables. Mechanical pins physically shut off the melt flow at the cavity surface, driven by pneumatic or hydraulic cylinders. This eliminates particulate generation, stringing, and dead zones where shear-sensitive material can degrade. Gate placement requires strategic planning. Engineers must position gates to avoid weld lines in structurally critical areas, such as living hinges or snap fits, ensuring the device withstands clinical handling without fracturing.
Cooling dictates cycle time and dimensional stability. High-volume disposables require aggressive, uniform thermal management. Conformal cooling, achieved via Direct Metal Laser Sintering (DMLS) or metal 3D printing, allows cooling channels to follow the exact contours of the part geometry. This technology reaches isolated areas, such as the tips of long core pins or the bottoms of blood tubes, where traditional straight-line drilling fails to extract heat efficiently.
Cooling channels must achieve turbulent flow. Laminar flow acts as an insulator, trapping a boundary layer of heat against the cavity wall. Engineers calculate the Reynolds number to ensure water velocity exceeds 4000, creating turbulence that maximizes heat transfer and prevents hot spots. Hot spots cause differential shrinkage, leading to warpage in thin-walled medical parts. Furthermore, cleanroom water supplies require strict filtration. Biofouling and mineral scaling inside cooling channels drastically reduce thermal efficiency. Integrating stainless steel fittings and filtered water loops maintains consistent cooling performance over millions of cycles.
Flash on a medical device is unacceptable. Excess plastic along parting lines can cause tissue trauma during insertion or compromise fluid seals, leading to leaks. Geometric Dimensioning and Tolerancing (GD&T) requirements for parting lines in medical devices often demand tolerances tighter than 0.001 inches (25 microns). Achieving this requires exceptional machining precision, often utilizing wire EDM and high-speed hard milling to ensure perfect steel-to-steel mating.
A well-engineered Plastic Injection Mold utilizes interlocking mold halves and tapered shut-offs. These features maintain perfect alignment under extreme injection pressures, preventing the mold from blowing open. Pre-load designs ensure the parting line seals completely before full clamp tonnage applies. Venting design requires equal precision. Vents must be deep enough to allow trapped gas to escape, preventing burn marks and short shots. However, vent depth must remain strictly below the specific resin's viscosity threshold. For a high-flow polypropylene, vent depths cannot exceed 0.015mm, otherwise the material will flash into the vent channel.
FDA and Medical Device Regulation (MDR) frameworks mandate strict traceability for all clinical components. If a defect occurs in the field, manufacturers must trace the exact cavity that produced the failing part. Mold design dictates how this traceability is executed on the physical product without compromising the part's function or cleanroom standards.
Engineers integrate precision-machined cavity ID inserts, date stamps, and material indicators directly into the mold layout. These inserts must sit perfectly flush with the cavity wall to prevent stress concentrations or localized flash. For components requiring post-molding identification, the mold design must accommodate downstream automation. Cavity layouts are mapped to robotic extraction paths, ensuring parts are presented uniformly to laser marking or pad printing fixtures. This direct link between cavity output and marking guarantees accurate batch records and simplifies quality control audits.
Ejecting thin-walled medical disposables presents severe challenges. Standard ejector pins apply localized force, which easily punches through or deforms fragile components. Furthermore, traditional ejector pins require lubrication, introducing contamination risks. Ejection systems must remove parts without causing stress marks, deformation, or particulate shedding.
Stripper plates provide the optimal solution for cylindrical parts like syringe barrels and blood tubes. A stripper plate contacts the entire circumference of the part, distributing ejection force evenly across the strongest structural axis. This prevents the buckling and stress whitening associated with pin ejection. To eliminate non-compliant lubricants, engineers specify guided ejection systems utilizing specialized coatings. Diamond-Like Carbon (DLC) or Titanium Nitride coatings reduce friction and prevent galling on moving components, ensuring smooth, cleanroom-compliant ejection over millions of cycles.

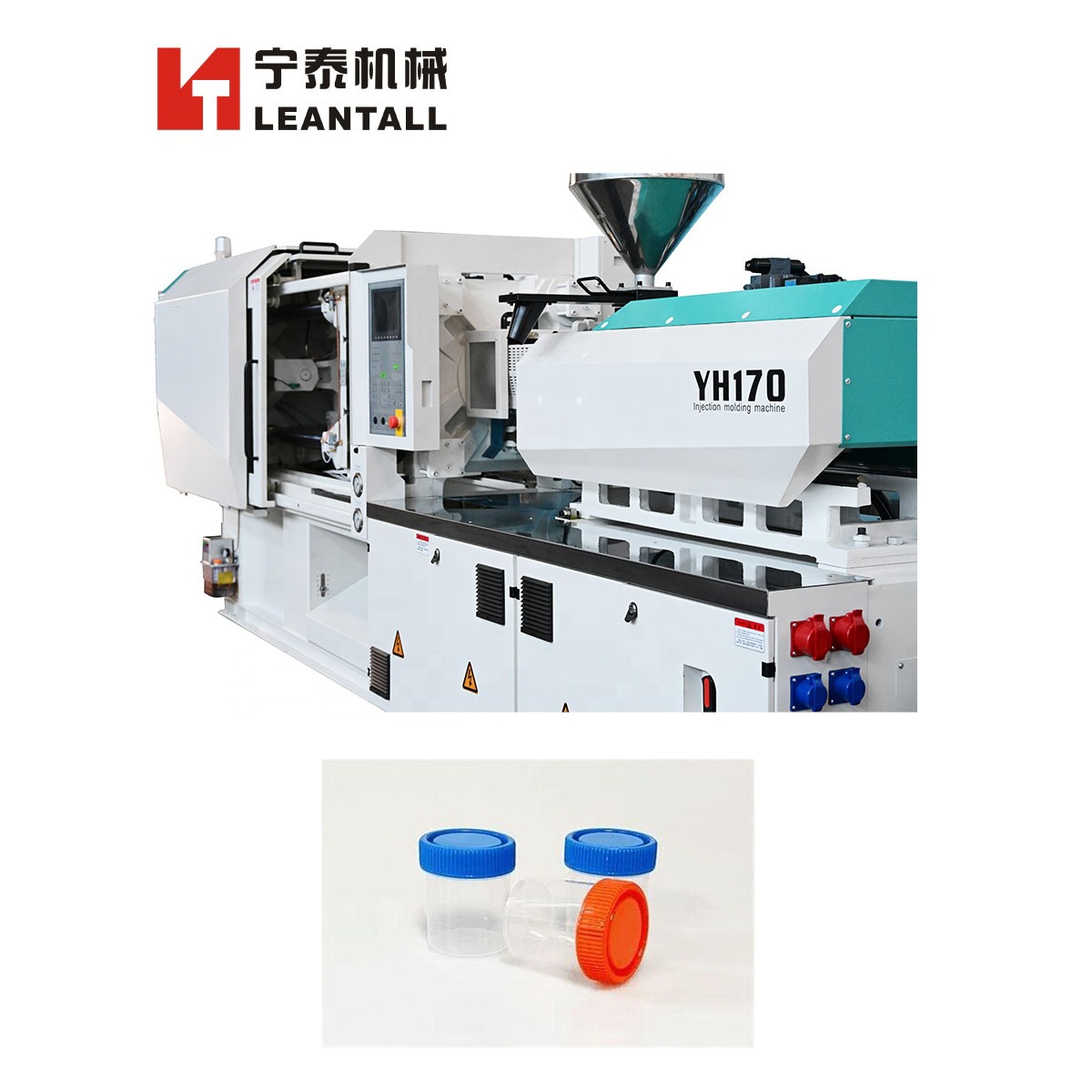

A precision mold fails if paired with inadequate processing equipment. Engineers must calculate the required clamp tonnage based on the projected area of the high-cavitation mold and the specific cavity pressure of the medical resin. Insufficient tonnage leads to platen deflection and flash, while excessive tonnage crushes venting channels and accelerates tool wear.
Physical dimensions dictate compatibility. The mold must fit within the tie-bar spacing, align with the platen layout, and match the ejector stroke of the specific medical injection molding machine. Cleanroom environments overwhelmingly favor all-electric injection molding machines. These machines eliminate hydraulic oil, removing a primary contamination source. All-electric machines provide highly precise, servo-driven injection profiles. The mold design must adapt to these rapid, exact injection speeds, utilizing optimized gating and venting to handle sudden pressure spikes without burning the material.
Modern tooling integrates in-mold sensors directly into the cavity blocks. Cavity pressure and temperature transducers connect to the machine's control unit. This integration enables real-time process monitoring. If cavity pressure deviates from the validated processing window, the machine automatically diverts the suspect parts to a reject bin, guaranteeing zero-defect output and protecting the batch integrity.
Gravity-drop ejection is unacceptable for critical medical disposables. Dropping parts into a bin creates static buildup, attracts airborne particulates, and causes physical damage through part-to-part impact. Automated extraction is mandatory for maintaining cleanroom integrity and part quality.
Mold design must facilitate robotic end-of-arm tooling (EOAT) integration. Engineers ensure adequate daylight clearance between the open mold halves, allowing the robot to enter and exit rapidly. Precision alignment features, such as guide pins on the mold face, ensure high-speed pick-and-place systems extract parts without crashing into the steel. Immediately post-ejection, the mold layout must accommodate automated visual inspection systems. Vision cameras verify cavity IDs, detect short shots, and inspect for flash before the parts move to assembly or packaging.
Validation proves the tooling can consistently manufacture compliant devices. This process follows a strict Installation, Operational, and Performance Qualification (IQ/OQ/PQ) framework. When validating a medical injection mold, documentation is as critical as physical performance.
Installation Qualification (IQ): Engineers execute a rigorous checklist verifying the delivered mold matches all approved design specifications. This includes checking material certifications for the steel, verifying cooling channel flow rates in gallons per minute (GPM), confirming sensor wiring, and ensuring all safety standards are met.
Operational Qualification (OQ): This phase establishes the processing window. Engineers utilize Design of Experiments (DoE) to test temperature, pressure, and speed limits. The goal is to define the exact parameters where the mold produces acceptable parts, identifying the upper and lower control limits through short shot and gate seal studies.
Performance Qualification (PQ): PQ demands long-term capability studies. The mold must run continuously over multiple shifts, utilizing different lots of resin. Engineers measure critical dimensions to prove a Process Capability Index (Cp/Cpk) greater than 1.33. This proves the mold consistently produces compliant parts under real-world manufacturing conditions.
High-volume medical molds endure extreme mechanical stress. Proactive lifecycle management prevents catastrophic failures and production downtime. Common failure modes include gate wear from abrasive resins, vent clogging from polymer off-gassing, cooling channel corrosion, and core pin fatigue.
Manufacturers must implement a strict preventative maintenance schedule based on actual cycle counts, adhering to SPI Class 101 mold standards. This involves scheduled teardowns, ultrasonic cleaning of cooling channels to remove scale, and dimensional verification of critical shut-offs. Modular mold designs are essential for high-volume production. Utilizing interchangeable cavity inserts and replaceable gate drops allows technicians to swap worn components directly in the press. This modularity minimizes downtime and ensures the tool maintains validated tolerances throughout its operational lifespan.
To ensure your medical injection molding process yields compliant, high-quality disposables, execute the following steps immediately:
Audit your current tooling designs to verify that all moving components utilize oil-free mechanisms and Diamond-Like Carbon (DLC) coatings for cleanroom compliance.
Implement a mandatory Reynolds number calculation for all cooling circuits to guarantee turbulent flow and eliminate thermal warpage in thin-walled parts.
Upgrade your preventative maintenance protocols to include ultrasonic cleaning of cooling channels and dimensional verification of shut-offs every 100,000 cycles.
Install cavity pressure transducers in all new high-cavitation molds to establish a direct data link for automated part rejection.
A: Beryllium copper offers exceptional thermal conductivity and high mechanical stiffness. In deep-draw parts like syringe barrels, it rapidly pulls heat away from the plastic while resisting the injection pressure that causes core shift and uneven wall thickness.
A: Valve gating physically shuts off the melt flow at the cavity surface using a mechanical pin. This eliminates gate vestige, prevents stringing, and stops particulate generation, which is critical for maintaining the safety of fluid-path medical devices.
A: Cleanroom molds are designed to eliminate particulate generation. They utilize oil-free mechanisms, enclosed lubrication systems, self-lubricating wear plates, and specialized corrosion-resistant platings to prevent contamination in ISO Class 7 or 8 environments.
A: Turbulent flow maximizes heat transfer between the mold steel and the cooling fluid. Laminar flow acts as an insulator, creating hot spots that lead to differential shrinkage, warpage, and extended cycle times in thin-walled medical parts.
A: Operational Qualification (OQ) establishes the reliable processing window. Through Design of Experiments (DoE), engineers test various temperatures, pressures, and speeds to define the exact upper and lower limits where the mold consistently produces acceptable, compliant parts.
A: Stripper plates apply ejection force evenly across the entire circumference of the cylindrical part. Ejector pins apply localized pressure, which can easily puncture, deform, or cause stress whitening on thin-walled, fragile medical components.
