| Quantity: | |
|---|---|

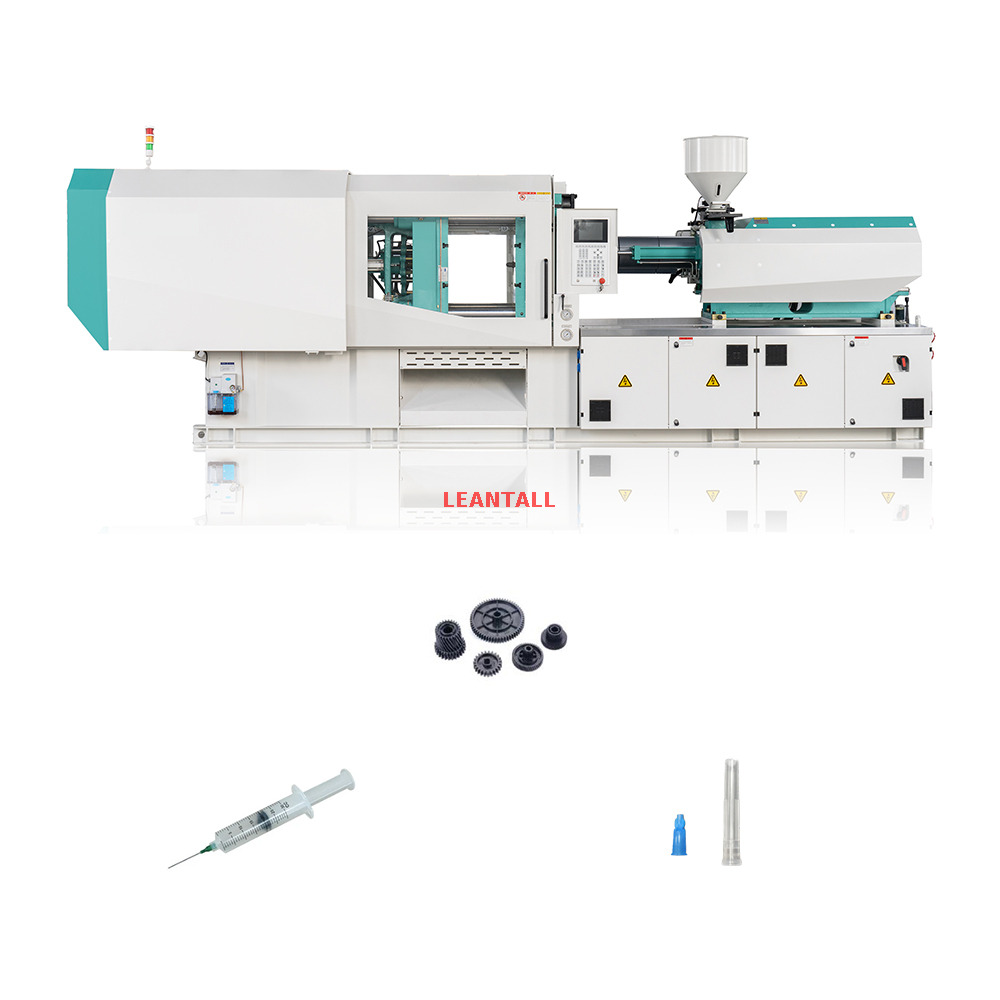

NT400
LEANTALL
8477101090
CLAMPING UNIT
INJECTION UNIT
High-speed thin-walled injection molding machines are designed for the rapid production of lightweight, thin-walled plastic parts with high precision. These machines are used for manufacturing products that require both speed and strength without sacrificing material efficiency.
Thin-Wall Molding Capability: These machines are optimized to mold parts with thin walls (typically less than 1 mm thick), a common requirement in industries like consumer electronics, medical devices, and packaging.
Rapid Cycle Times: High-speed machines offer shorter cycle times through enhanced injection systems and efficient cooling systems, enabling faster production.
High Precision: Despite the thin walls, these machines can maintain tight tolerances and produce parts that meet the exacting standards of modern manufacturing.
Material Efficiency: High-speed thin-walled machines minimize material waste while maximizing output, making them highly efficient for large-scale production.
Consumer Electronics: Manufacturing smartphone housings, laptop parts, and other thin-walled components.
Packaging: For producing plastic containers, bottles, and caps with thin walls and high strength.
Automotive: Molding lightweight, high-strength parts for vehicles, such as bumpers and interior components.
These machines are key for manufacturers looking to produce lightweight, high-strength, and cost-efficient parts in high volumes.
Technical Parameter | |||||
Part | Name | Unit | NT400 | ||
Injection unit | SCREW DIAMETER | mm | 70 | 75 | 80 |
SCREW L/D RATIO | L/D | 21.4 | 20 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 1501 | 1723 | 1960 | |
INJECTION WEIGHT(PS) | g | 1366 | 1568 | 1784 | |
INJECTION PRESSURE | Mpa | 194 | 169 | 148 | |
INJECTION RATE | cm⊃3;/sec | 396 | 455 | 517 | |
PLASTICZATION CAPACITY(PS) | g/sec | 63 | 78 | 93 | |
INJECTION STROKE | mm | 390 | |||
INJECTION SPEED | Mm/sec | 103 | |||
SCREW SPEED | rpm | 160 | |||
Clamping unit | CLAMP FORCE | Kn | 4000 | ||
OPEN STROKE | mm | 725 | |||
SPACE BETWEEN TIE BARS | mm×mm | 730X730 | |||
MAX.MOULD HEIGHT | mm | 800 | |||
MIN.MOULD HEIGHT | mm | 300 | |||
EJECTOR STROKE | mm | 180 | |||
EJECTOR FORCE | Kn | 111 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 50 | |||
HEATING POWER | Kw | 29.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 7.6*1.85*2.35 | |||
MACHINE WEIGHT(ESTIMATE) | T | 13 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
