| Quantity: | |
|---|---|

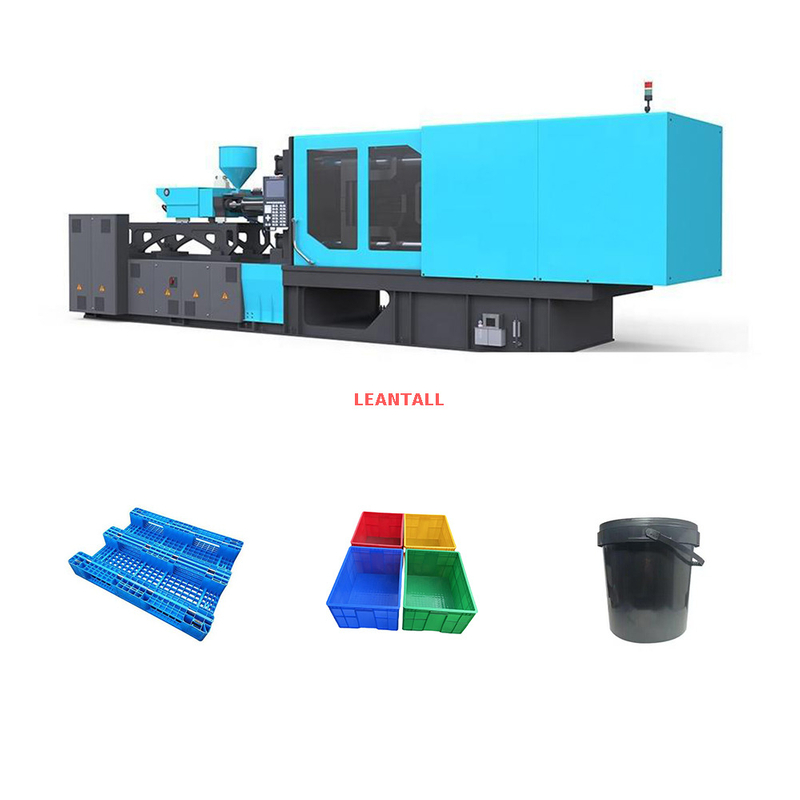

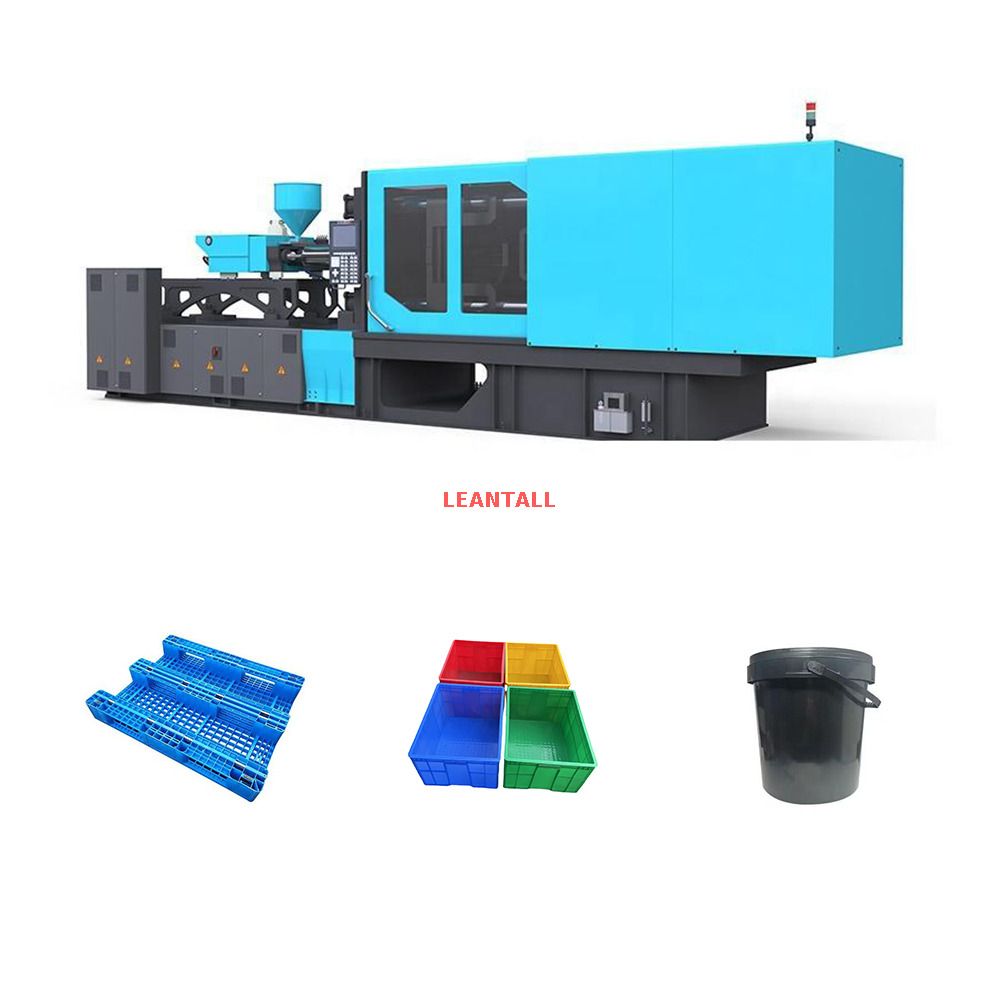

NT750
LEANTALL
8477101090
High working efficiency is a priority for us seeking to maximize throughput while minimizing costs. High Working Efficiency Injection Molding Machines are built to provide maximum output with minimal input, ensuring that energy and resources are used as effectively as possible.
Optimized Cycle Times: These machines are designed to shorten the cycle times while maintaining part quality, thereby increasing overall production efficiency.
Automated Controls: Advanced control systems ensure that every part of the injection process is optimized for speed and minimal waste, including injection speed, mold cooling, and ejection.
Energy-Efficient Motors: Energy-saving technologies like servo motors reduce power consumption while improving performance.
Mass Production: Suitable for high-volume production runs in industries like consumer goods, automotive, and packaging.
Cost-Effective Manufacturing: Businesses that require high-output systems with low operational costs can benefit from high-efficiency machines.
Technical Parameter | |||||
Part | Name | Unit | NT750 | ||
Injection unit | SCREW DIAMETER | mm | 95 | 100 | 105 |
SCREW L/D RATIO | L/D | 23 | 22 | 21 | |
SHOT VOLUME(THEORETICAL) | cm3 | 3260 | 3612 | 3983 | |
INJECTION WEIGHT(PS) | g | 2966 | 3286 | 3624 | |
INJECTION PRESSURE | Mpa | 175 | 158 | 143 | |
INJECTION RATE | cm⊃3;/sec | 758 | 840 | 926 | |
PLASTICZATION CAPACITY(PS) | g/sec | 132 | 152 | 189 | |
INJECTION STROKE | mm | 460
| |||
INJECTION SPEED | Mm/sec | 107
| |||
SCREW SPEED | rpm | 125 | |||
Clamping unit | CLAMP FORCE | Kn | 7500 | ||
OPEN STROKE | mm | 1000 | |||
SPACE BETWEEN TIE BARS | mm×mm | 1020X970 | |||
MAX.MOULD HEIGHT | mm | 960 | |||
MIN.MOULD HEIGHT | mm | 390 | |||
EJECTOR STROKE | mm | 340 | |||
EJECTOR FORCE | Kn | 212 | |||
EJECTOR NUMBER | N | 21 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 44+44 | |||
HEATING POWER | Kw | 46 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 10.6*2.24*2.65 | |||
MACHINE WEIGHT(ESTIMATE) | T | 35 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
