NT630
LEANTALL
8477101090

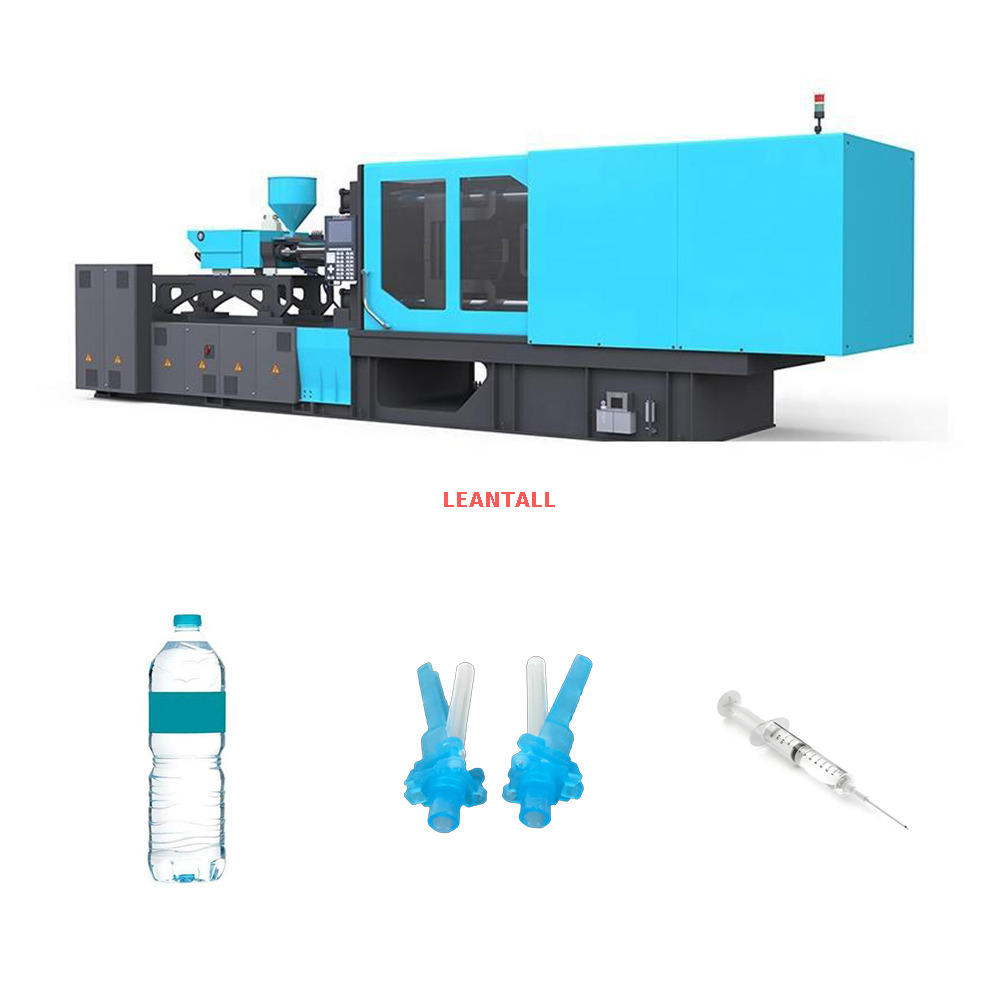

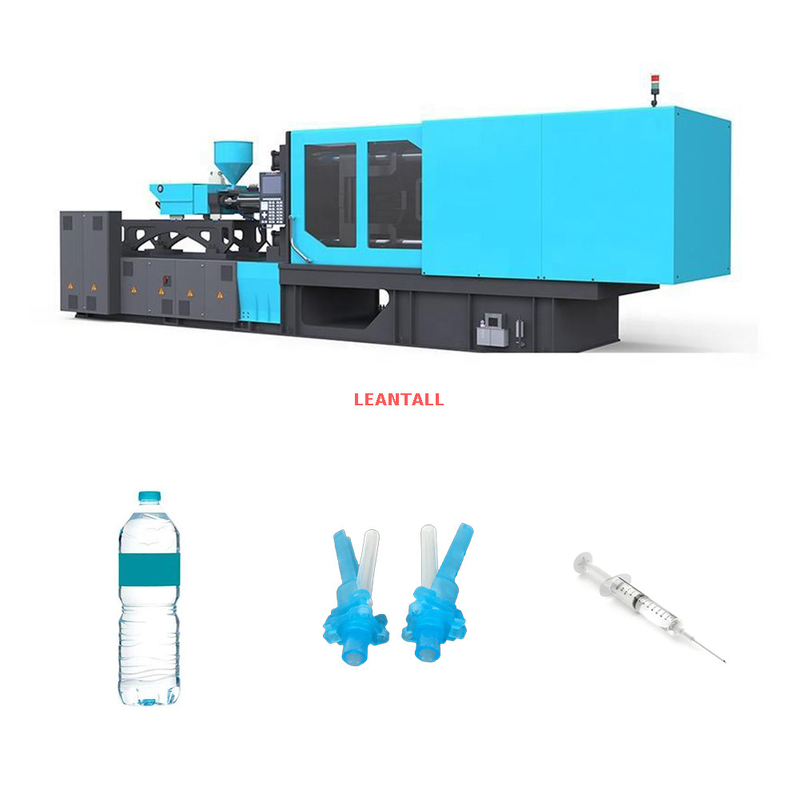

An Excellent Structure Injection Molding Machine is designed with a focus on strength, stability, and long-lasting performance. The design of these machines ensures minimal wear and tear, consistent output, and reduced maintenance costs over time.
Robust Frame Construction: These machines feature reinforced frames and structural components that resist deformation during high-pressure injection cycles.
Enhanced Durability: The use of high-quality materials in the machine's construction ensures that the machine can operate at high capacities for extended periods without failure.
Long Lifespan: The robust design means reduced downtime for repairs and maintenance, which results in a longer operational lifespan.
Heavy Duty Manufacturing: Ideal for industries that require consistent and reliable performance in high-volume manufacturing, such as automotive and industrial equipment.
Large-Scale Production: These machines are suitable for producing large, complex parts where structural integrity is critical.
Technical Parameter | |||||
Part | Name | Unit | NT630 | ||
Injection unit | SCREW DIAMETER | mm | 90 | 95 | 100 |
SCREW L/D RATIO | L/D | 21 | 20 | 19 | |
SHOT VOLUME(THEORETICAL) | cm3 | 2735 | 3047 | 3377 | |
INJECTION WEIGHT(PS) | g | 2488 | 2772 | 3073 | |
INJECTION PRESSURE | Mpa | 180 | 162 | 146 | |
INJECTION RATE | cm⊃3;/sec | 661 | 737 | 816 | |
PLASTICZATION CAPACITY(PS) | g/sec | 132 | 153 | 182 | |
INJECTION STROKE | mm | 430 | |||
INJECTION SPEED | Mm/sec | 104 | |||
SCREW SPEED | rpm | 150 | |||
Clamping unit | CLAMP FORCE | Kn | 6300 | ||
OPEN STROKE | mm | 905 | |||
SPACE BETWEEN TIE BARS | mm×mm | 925X875 | |||
MAX.MOULD HEIGHT | mm | 900 | |||
MIN.MOULD HEIGHT | mm | 330 | |||
EJECTOR STROKE | mm | 295 | |||
EJECTOR FORCE | Kn | 152 | |||
EJECTOR NUMBER | N | 21 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 44+39 | |||
HEATING POWER | Kw | 42.8 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 9.7*2.1*2.4 | |||
MACHINE WEIGHT(ESTIMATE) | T | 25 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
