NT900
LEANTALL
8477101090

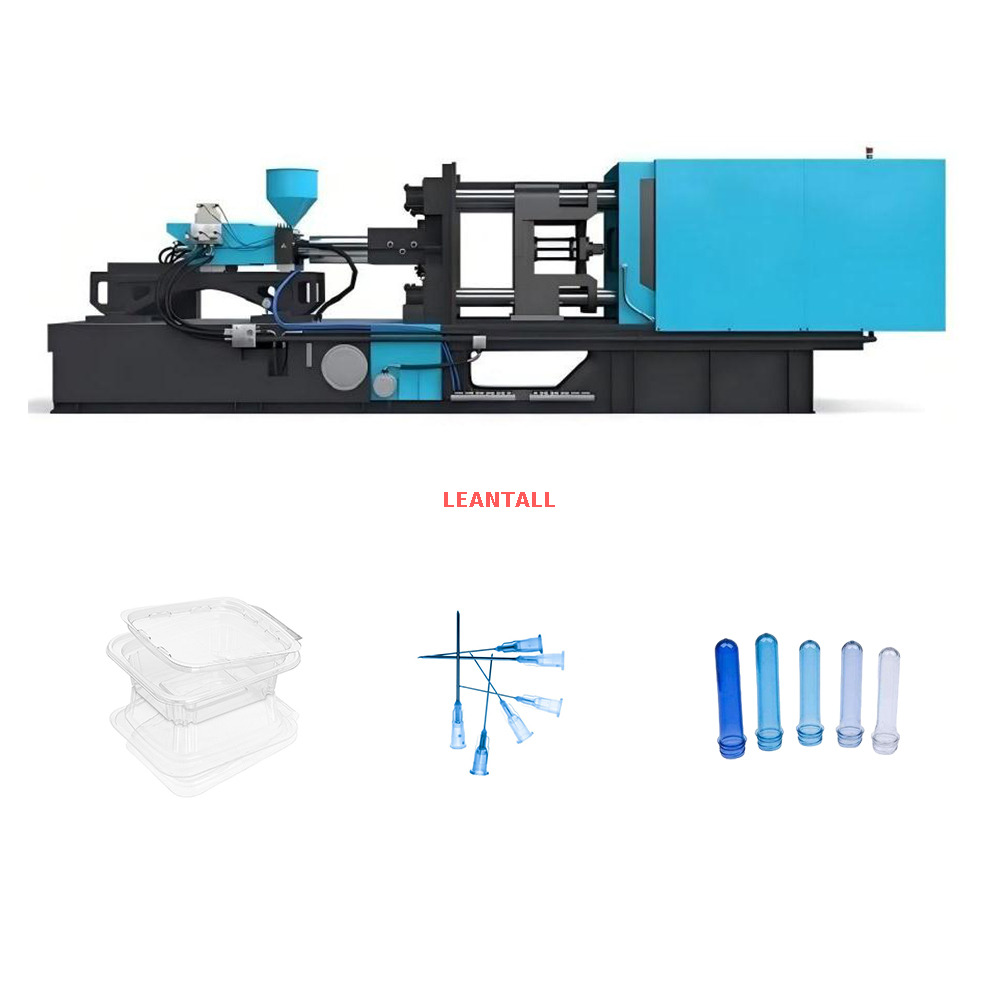

We are increasingly seeking ways to reduce their environmental footprint while lowering operational costs. Low Power Consumption Injection Molding Machines are designed to operate with minimal energy use without sacrificing performance.
Energy Recovery Systems: These machines feature systems that capture and reuse energy that would otherwise be wasted during the molding process.
Electric and Hybrid Technologies: Many low-power machines incorporate electric or hybrid drives, which use less power compared to traditional hydraulic systems.
Optimized Performance: These machines adjust their power consumption according to the molding process, drawing power only when necessary.
Eco-Conscious Manufacturing: Ideal for businesses looking to reduce their carbon footprint, such as those in the automotive or packaging industries.
Energy-Conscious Operations: Suitable for high-volume production where energy costs need to be minimized.
Technical Parameter | |||||
Part | Name | Unit | NT900 | ||
Injection unit | SCREW DIAMETER | mm | 100 | 105 | 110 |
SCREW L/D RATIO | L/D | 22 | 21 | 20 | |
SHOT VOLUME(THEORETICAL) | cm3 | 3691 | 4069 | 4466 | |
INJECTION WEIGHT(PS) | g | 3358 | 3702 | 4064 | |
INJECTION PRESSURE | Mpa | 171 | 155 | 141 | |
INJECTION RATE | cm⊃3;/sec | 777 | 857 | 940 | |
PLASTICZATION CAPACITY(PS) | g/sec | 152 | 189 | 204 | |
INJECTION STROKE | mm | 470
| |||
INJECTION SPEED | Mm/sec | 99
| |||
SCREW SPEED | rpm | 125 | |||
Clamping unit | CLAMP FORCE | Kn | 9000 | ||
OPEN STROKE | mm | 1100 | |||
SPACE BETWEEN TIE BARS | mm×mm | 1125X1085 | |||
MAX.MOULD HEIGHT | mm | 1100 | |||
MIN.MOULD HEIGHT | mm | 500 | |||
EJECTOR STROKE | mm | 335 | |||
EJECTOR FORCE | Kn | 216 | |||
EJECTOR NUMBER | N | 21 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 44+44 | |||
HEATING POWER | Kw | 48.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 11.3*2.5*2.65 | |||
MACHINE WEIGHT(ESTIMATE) | T | 40 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
