NT360
LEANTALL
8477101090
CLAMPING UNIT
INJECTION UNIT

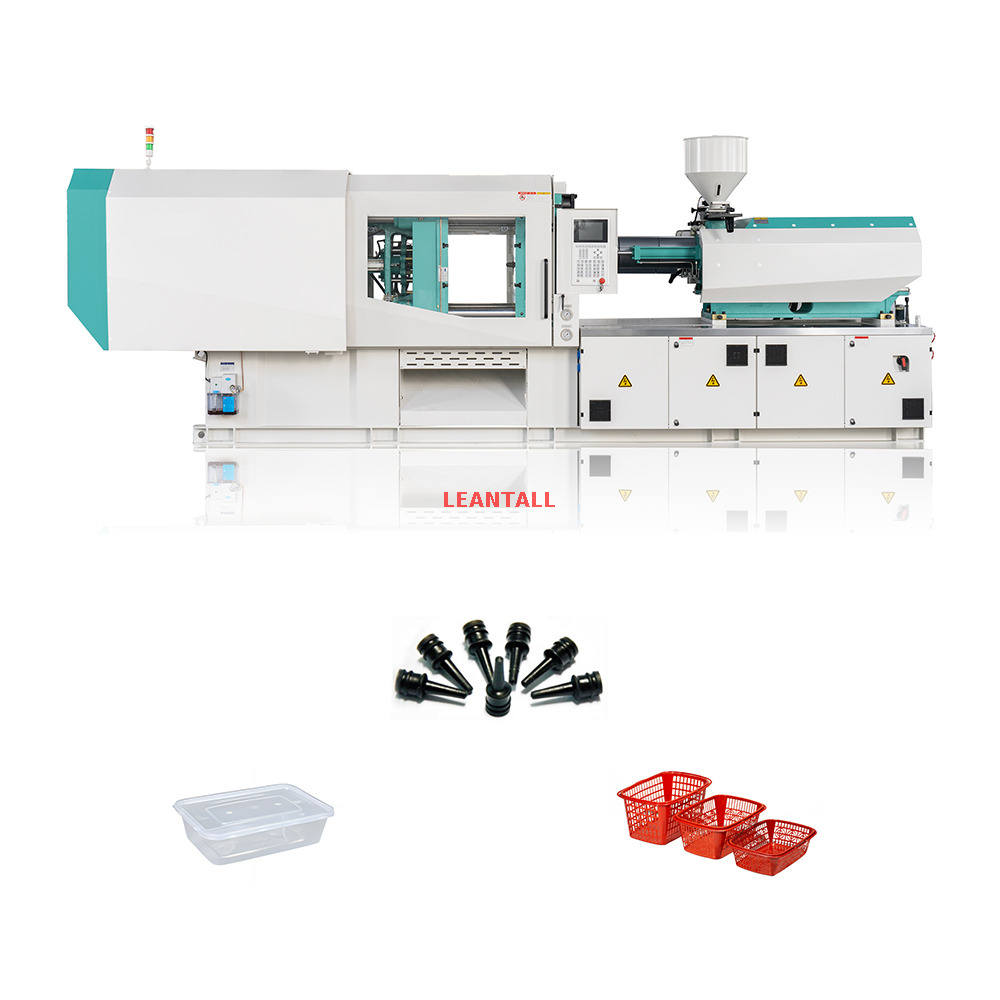

Special injection molding machines for fruit frames are designed to produce the protective packaging often used to transport fruit and other delicate produce. These machines are engineered to create lightweight, yet strong fruit trays or frames that maintain the structural integrity of fruits during transit and storage.
Custom Molds for Lightweight Designs: These machines produce thin-walled, lightweight trays with designs that provide optimal protection without adding unnecessary weight.
Efficient Material Use: These machines maximize the use of materials to keep production costs low, while still ensuring the trays are strong and durable enough to support the fruit.
Stackable and Functional Design: The designs produced by these machines often feature stackable frames that allow for easy storage and transportation of the molded parts.
Soft Touch and Ventilation: Some machines can create vented frames to allow air circulation, reducing spoilage during transport.
Fruit Packaging: Molding fruit trays and fruit baskets that protect the produce from bruising and damage.
Vegetable Packaging: Similar applications for vegetables, where ventilated crates and trays are required for transportation.
Other Perishables: These machines can also be used for creating packaging for other perishable goods like eggs, berries, and mushrooms.
Special injection molding machines for fruit frames are essential for the food packaging industry, where protection, cost-efficiency, and durability are paramount.
Technical Parameter | |||||
Part | Name | Unit | NT360 | ||
Injection unit | SCREW DIAMETER | mm | 65 | 70 | 75 |
SCREW L/D RATIO | L/D | 22 | 20 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 1161 | 1347 | 1546 | |
INJECTION WEIGHT(PS) | g | 1056 | 1225 | 1406 | |
INJECTION PRESSURE | Mpa | 202 | 174 | 152 | |
INJECTION RATE | cm⊃3;/sec | 328 | 380 | 437 | |
PLASTICZATION CAPACITY(PS) | g/sec | 63 | 76 | 93 | |
INJECTION STROKE | mm | 350 | |||
INJECTION SPEED | Mm/sec | 99 | |||
SCREW SPEED | rpm | 180 | |||
Clamping unit | CLAMP FORCE | Kn | 3600 | ||
OPEN STROKE | mm | 670 | |||
SPACE BETWEEN TIE BARS | mm×mm | 730X680 | |||
MAX.MOULD HEIGHT | mm | 700 | |||
MIN.MOULD HEIGHT | mm | 250 | |||
EJECTOR STROKE | mm | 195 | |||
EJECTOR FORCE | Kn | 101 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 44 | |||
HEATING POWER | Kw | 22.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 7.2*1.85*2.35 | |||
MACHINE WEIGHT(ESTIMATE) | T | 11 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
