| Quantity: | |
|---|---|
NT230
LEANTALL
8477101090

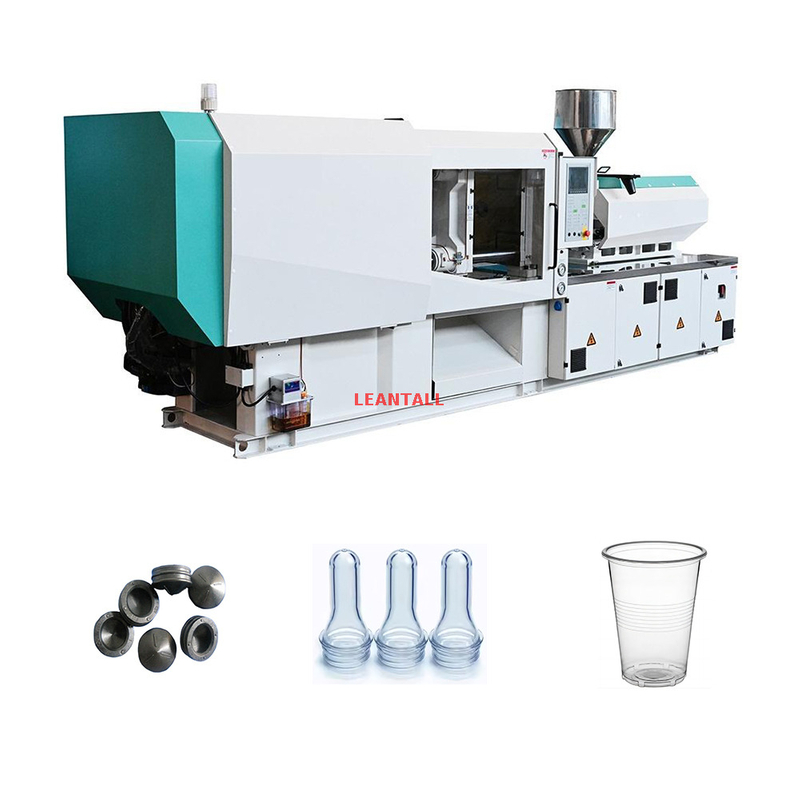

The injection molding machine for syringe plastic parts is a highly specialized machine used in the production of medical devices, particularly single-use syringes. Given the critical nature of these parts, the machines must meet rigorous standards for cleanliness, precision, and biocompatibility.
Sterile Production Environment: These machines are designed to operate within cleanroom environments where contamination from dust, bacteria, and other particles is minimized. The sterile environment is crucial to avoid any risks to patient safety.
Precision Molding: Syringes require extreme precision because any defects can affect the safety or function of the medical device. These machines provide highly accurate molding to ensure that syringe barrels, plungers, and other components fit together perfectly.
Biocompatible Materials: These machines process medical-grade plastics such as polypropylene (PP) and polyethylene (PE), which are compatible with medical applications. The plastics used must meet strict regulatory requirements to ensure safety when in contact with human tissues.
Medical Device Manufacturing: Producing plastic parts for syringes, needles, and other medical consumables used in healthcare.
Injection Pen Devices: Creating the plastic components for insulin injection pens and other drug delivery systems.
Technical Parameter | |||||
Part | Name | Unit | NT230 | ||
Injection unit | SCREW DIAMETER | mm | 45 | 50 | 55 |
SCREW L/D RATIO | L/D | 22.2 | 20 | 18.2 | |
SHOT VOLUME(THEORETICAL) | CM3 | 397 | 490 | 594 | |
INJECTION WEIGHT(PS) | g | 361 | 445 | 540 | |
INJECTION PRESSURE | Mpa | 221 | 179 | 148 | |
INJECTION RATE | cm⊃3;/sec | 192 | 237 | 287 | |
PLASTICZATION CAPACITY(PS) | g/sec | 26 | 36 | 48 | |
INJECTION STROKE | mm | 250 | |||
INJECTION SPEED | Mm/sec | 121 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 2300 | ||
OPEN STROKE | mm | 490 | |||
SPACE BETWEEN TIE BARS | mm×mm | 530X530 | |||
MAX.MOULD HEIGHT | mm | 550 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 145 | |||
EJECTOR FORCE | Kn | 70 | |||
EJECTOR NUMBER | N | 9 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 29 | |||
HEATING POWER | Kw | 12.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 5.6*1.45*2.1 | |||
MACHINE WEIGHT(ESTIMATE) | T | 6.5 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
