| Quantity: | |
|---|---|

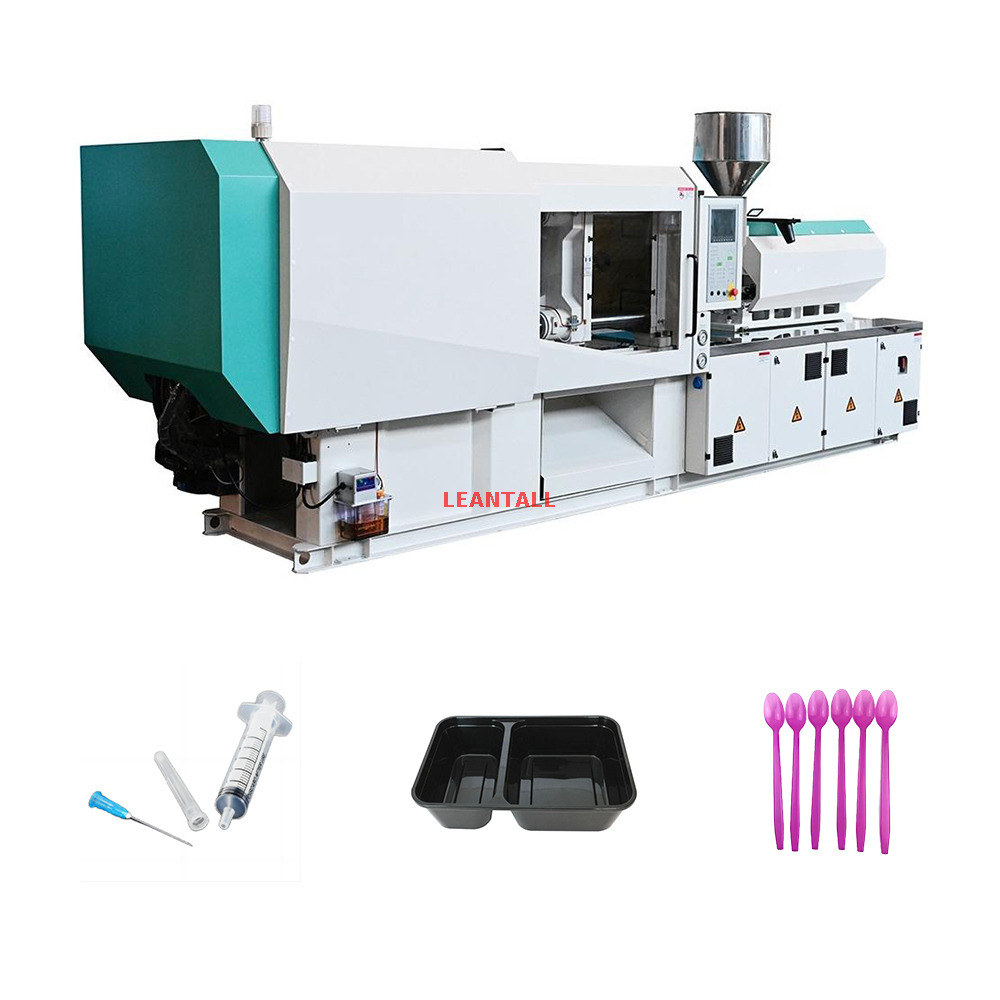

NT300
LEANTALL
8477101090
CLAMPING UNIT
INJECTION UNIT
Injection molding is one of the most efficient and versatile manufacturing processes for producing high-precision plastic parts in large quantities. Over the years, the evolution of injection molding machines (IMMs) has brought about machines that are faster, more energy-efficient, easier to operate, and capable of producing a wider range of complex parts.
Polypropylene (PP) is one of the most commonly used thermoplastics in injection molding, thanks to its versatility, low cost, and excellent chemical resistance. A Polypropylene Injection Molding Machine is specifically designed to handle the characteristics of PP and optimize its molding process.
Optimal Temperature Control: These machines are equipped with precise temperature control systems to manage the unique melting points of polypropylene, ensuring high-quality molding.
High Durability: PP has excellent fatigue resistance and is often used for applications where the molded part will undergo repeated use. These machines provide the necessary precision to maintain PP’s inherent durability.
Low Shrinkage: Polypropylene tends to shrink less than other plastics, which requires specialized machines to ensure that parts come out to the exact specifications.
Consumer Goods: Producing bottles, containers, and household items.
Automotive Parts: Manufacturing bumpers, panels, and interior components.
Packaging: Injection molding for packaging solutions like lids and trays.
Technical Parameter | |||||
Part | Name | Unit | NT300 | ||
Injection unit | SCREW DIAMETER | mm | 55 | 60 | 65 |
SCREW L/D RATIO | L/D | 23 | 21 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 677 | 805 | 945 | |
INJECTION WEIGHT(PS) | g | 616 | 732 | 860 | |
INJECTION PRESSURE | Mpa | 202 | 170 | 145 | |
INJECTION RATE | cm⊃3;/sec | 261 | 311 | 365 | |
PLASTICZATION CAPACITY(PS) | g/sec | 48 | 56 | 71 | |
INJECTION STROKE | mm | 285 | |||
INJECTION SPEED | Mm/sec | 110 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 3000 | ||
OPEN STROKE | mm | 590 | |||
SPACE BETWEEN TIE BARS | mm×mm | 630X630 | |||
MAX.MOULD HEIGHT | mm | 630 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 135 | |||
EJECTOR FORCE | Kn | 90 | |||
EJECTOR NUMBER | N | 9 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 39 | |||
HEATING POWER | Kw | 18.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 6.35*1.6*2.35 | |||
MACHINE WEIGHT(ESTIMATE) | T | 9.0 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
