| Quantity: | |
|---|---|
NT300
LEANTALL
8477101090
CLAMPING UNIT
INJECTION UNIT

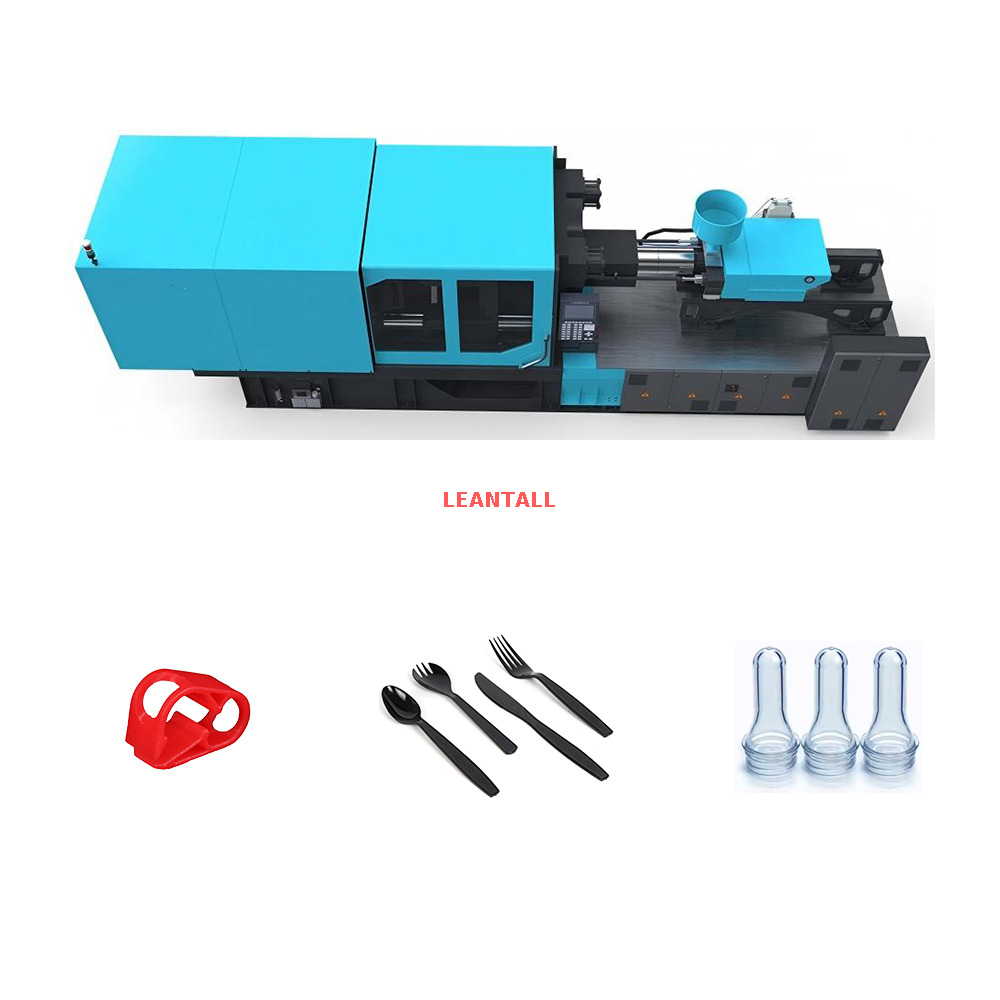

Special injection molding machines for PET bottles are specifically designed for producing high-quality, lightweight, and durable PET containers used in the beverage and packaging industries. These machines are optimized for the unique demands of PET material, ensuring the best results in terms of speed, precision, and efficiency.
Optimized for PET Preforms: These machines are designed to produce PET preforms, which are then blown into bottles. The injection molding process is optimized to create preforms with consistent wall thickness and structural integrity.
High-Speed Production: PET injection molding machines are engineered for high-speed production cycles, enabling manufacturers to meet the high demand for plastic bottles in a cost-efficient manner.
Energy Efficiency: Many modern PET molding machines feature energy-efficient designs, which help reduce energy consumption, a key consideration in high-volume production.
Precise Control: These machines offer precise control over temperature, pressure, and injection speed, ensuring that each preform is consistent and of high quality.
Beverage Packaging: Manufacturing plastic bottles for water, soft drinks, and juice.
Food Packaging: PET bottles are also used for packaging edible oils, condiments, and dairy products.
Cosmetic and Pharmaceutical Containers: PET is also widely used in the cosmetic and pharmaceutical industries for producing jars, bottles, and caps.
Specialized injection molding machines for PET bottles are indispensable for high-volume manufacturers who need to produce consistent, high-quality plastic bottles at speed and with efficiency.
Technical Parameter | |||||
Part | Name | Unit | NT300 | ||
Injection unit | SCREW DIAMETER | mm | 55 | 60 | 65 |
SCREW L/D RATIO | L/D | 23 | 21 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 677 | 805 | 945 | |
INJECTION WEIGHT(PS) | g | 616 | 732 | 860 | |
INJECTION PRESSURE | Mpa | 202 | 170 | 145 | |
INJECTION RATE | cm⊃3;/sec | 261 | 311 | 365 | |
PLASTICZATION CAPACITY(PS) | g/sec | 48 | 56 | 71 | |
INJECTION STROKE | mm | 285 | |||
INJECTION SPEED | Mm/sec | 110 | |||
SCREW SPEED | rpm | 210 | |||
Clamping unit | CLAMP FORCE | Kn | 3000 | ||
OPEN STROKE | mm | 590 | |||
SPACE BETWEEN TIE BARS | mm×mm | 630X630 | |||
MAX.MOULD HEIGHT | mm | 630 | |||
MIN.MOULD HEIGHT | mm | 200 | |||
EJECTOR STROKE | mm | 135 | |||
EJECTOR FORCE | Kn | 90 | |||
EJECTOR NUMBER | N | 9 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 39 | |||
HEATING POWER | Kw | 18.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 6.35*1.6*2.35 | |||
MACHINE WEIGHT(ESTIMATE) | T | 9.0 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
