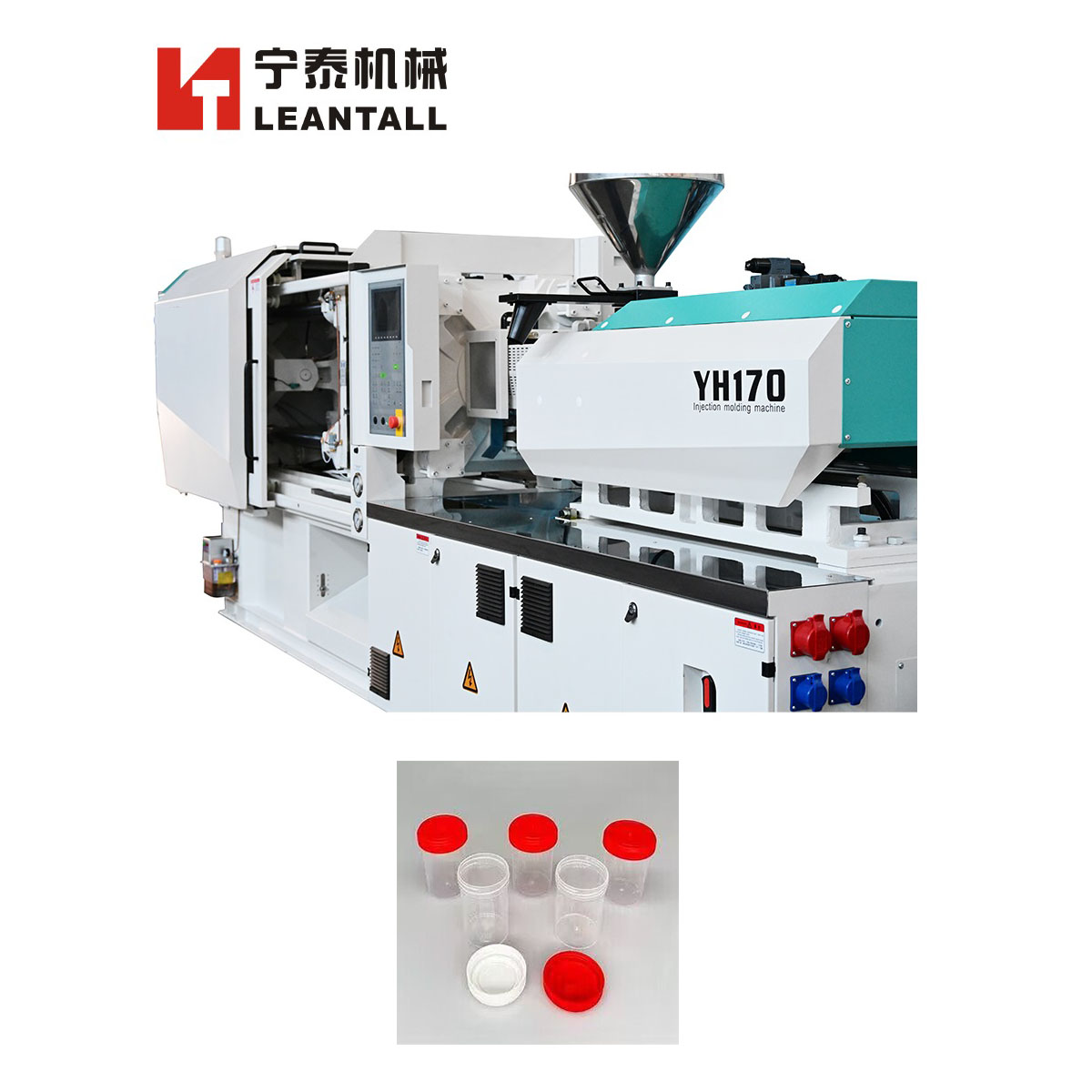

Plastic Injection Molding Machine For Medical Syringe Making Line

Plastic Injection Molding Machine For Medical Syringe Making Line

Injection molding machines are sophisticated devices essential for high-volume manufacturing, comprised of several critical components that work in harmony to produce precise parts. The clamping unit plays a crucial role by firmly securing the two halves of the mold together during the injection process. This component not only prevents any gaps or misalignments that could lead to product defects but also maintains the integrity of the mold under high pressure. The injection unit is another vital component, responsible for melting the polymer pellets and then injecting the molten material into the mold cavity with speed and accuracy.

Quantity:
Availability:





Inquire Add to Basket

Brand:
LEANTALL

Product Description

Plastic Injection Molding Machine

Our advanced plastic injection molding machines are designed to meet the diverse needs of various industries, including medical, electronics, consumer goods, and more. We offer a comprehensive range of machine sizes, from 100 tons to 1180 tons, ensuring that you can find the perfect fit for your production requirements. Our machines utilize a sophisticated servo motor hydraulic horizontal injection molding process, which greatly enhances operational speed and efficiency. This technology not only contributes to a higher production rate but also ensures an outstanding qualification rate for the end products, promoting consistent quality and reliability. In addition to our machines, we provide a full suite of customizable molds and auxiliary equipment tailored to your specific manufacturing needs. Our team of experts is ready to work with you to develop solutions that align perfectly with your project specifications and business goals. Trust us to deliver the precision and performance your industry demands.

Technical Parameter

Description	Unit	NT330			NT400			NT500
SCREW DIAMETER	mm	65	70	75	70	75	80	70	75	80
SCREW L/D RATIO	L/D	22	20	19	221.4	20	19	21.4	20	19
INJECTION STROKE	mm	350	350	350	390	390	390	390	390	390
INJECTION SPEED	Mm/sec	97	97	97	97	97	97	97	97	97
SHOT VOLUME(THEORETICAL)	CM3	1161	1347	1546	1501	1723	1960	1501	1723	1960
INJECTION WEIGHT(PS)	g	1056	1225	1406	1366	1568	1784	1366	1568	1784
INJECTION PRESSURE	Mpa	202	174	152	194	169	148	194	169	148
INJECTION RATE	cm3/sec	321	373	428	373	428	487	373	428	487
SCREW SPEED	rpm	189			170			170
CLAMP FORCE	Kn	3300			4000			500
OPEN STROKE	mm	669			725			810
SPACE BETWEEN TIE BARS	mm×mm	730*670			730*730			830*780
MAX.MOULD HEIGHT	mm	680			780			820
MIN.MOULD HEIGHT	mm	250			250			250
EJECTOR STROKE	mm	160			150			200
EJECTOR FORCE	Kn	70			79			110
EJECTOR NUMBER	N	9			13			13
MAX.PUMP PRESSURE	Mpa	16			16			16
SEVRO DRIVE POWER	Kw	55			55			55
HEATING POWER	Kw	22.5			29.5			29.5
*MACHINE DIMENSION(LWH)*	m×m×m	7.21.852.35			7.61.852.35			7.91.952.4
MACHINE WEIGHT（ESTIMATE）	T	12			16			18

photobank (14)

Machine Advantages:

1. Clamping Unit

Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite Element Analysis; High speed clamping is stable while low pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose.

2. Injection Unit

Double-cylinder balance injection system; Shot weight is precisely controlled by transducer; Using hydraulic motor to carry out variable speed.

3. Hydraulic Unit

Domestic high-tech divided hydraulic system; Hydraulic safety device; Imported high quality hydraulic components are applied.
