NT500
LEANTALL
8477101090

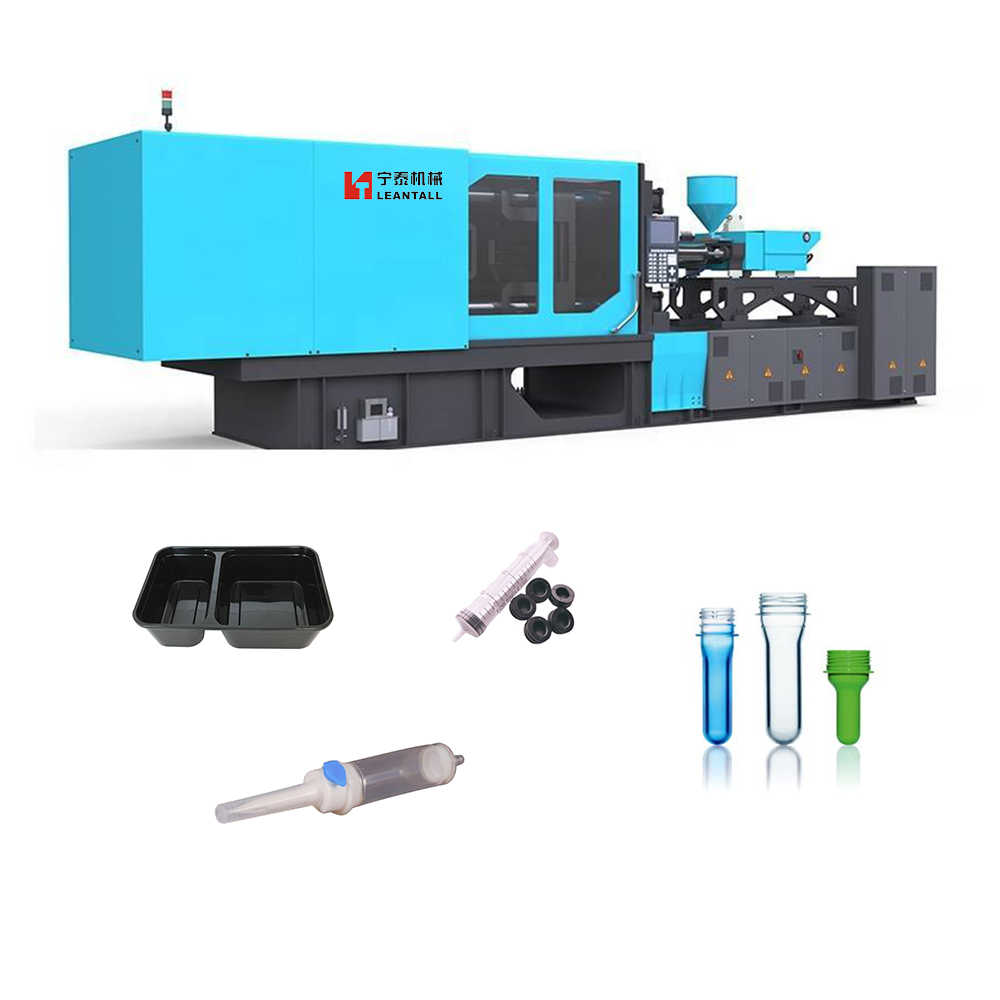

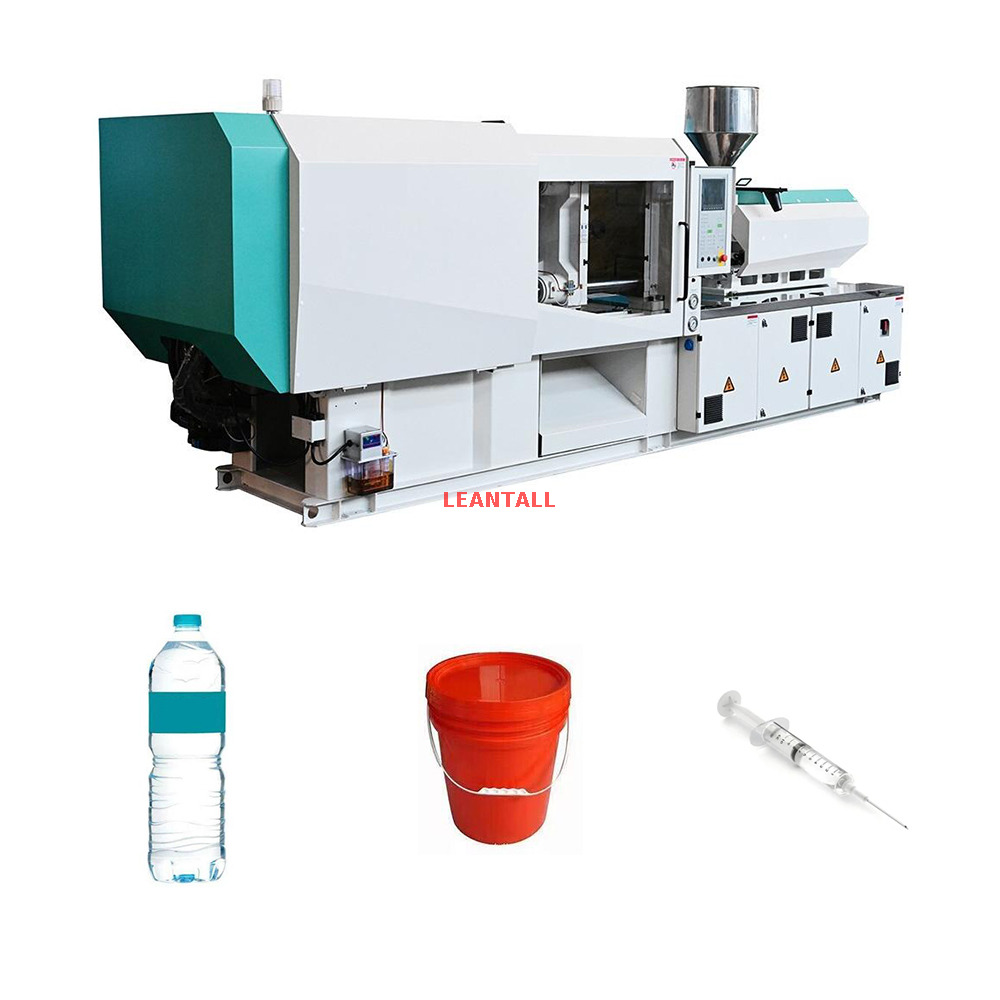

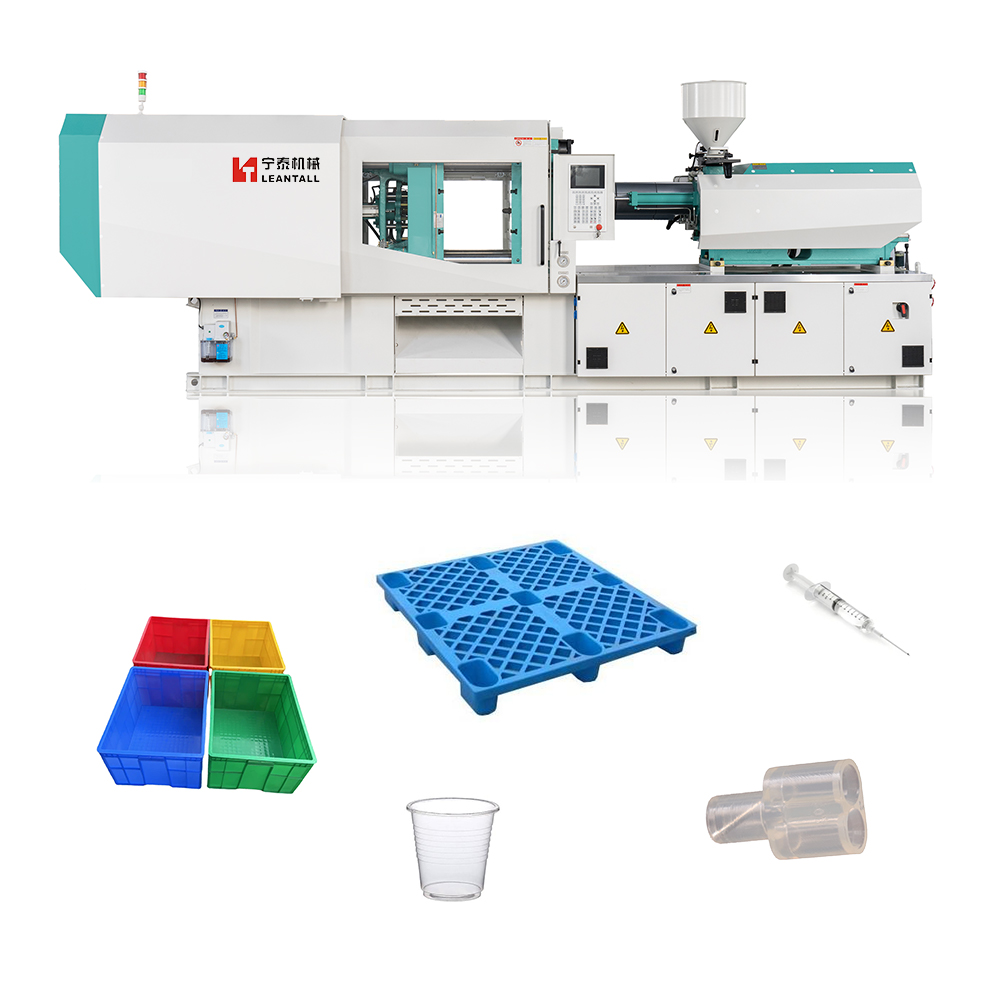

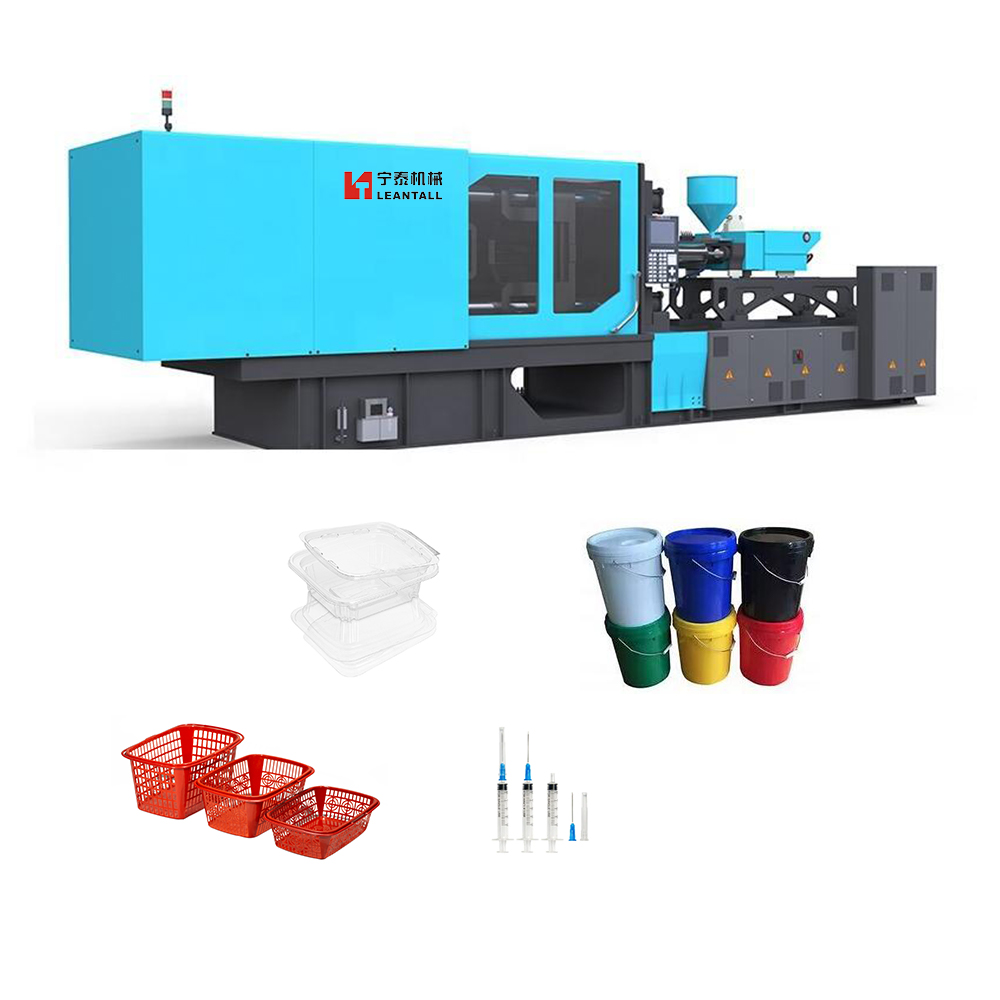

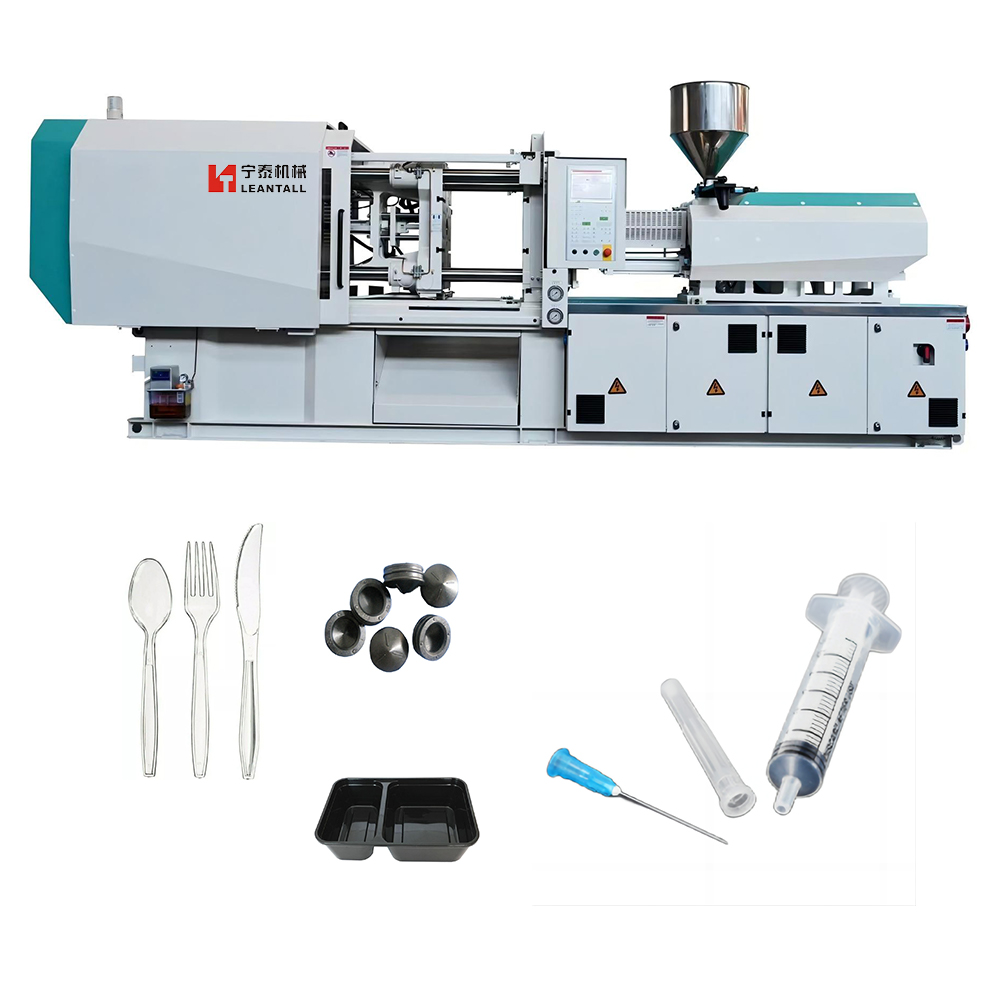

Precision is key when manufacturing parts with tight tolerances, intricate features, and high-quality surface finishes. The Precise Design Injection Molding Machine is equipped with advanced technology that ensures accuracy down to the micron level.
High-Precision Mold Alignment: These machines feature precise mold-clamping systems that ensure the molds are perfectly aligned, reducing defects.
Advanced Sensors: Sensors continuously monitor the injection and cooling process, allowing real-time adjustments to maintain accuracy.
Consistent Quality: These machines are capable of maintaining tight tolerances throughout the production run, ensuring that every part produced meets the design specifications.
Medical Devices: For producing parts like syringes, implants, and other critical components that must meet stringent quality standards.
Precision Electronics: Manufacturing intricate components for high-tech devices like smartphones and computers.
Optical Components: Molding parts that require extremely tight tolerances, such as lenses and precision reflectors.

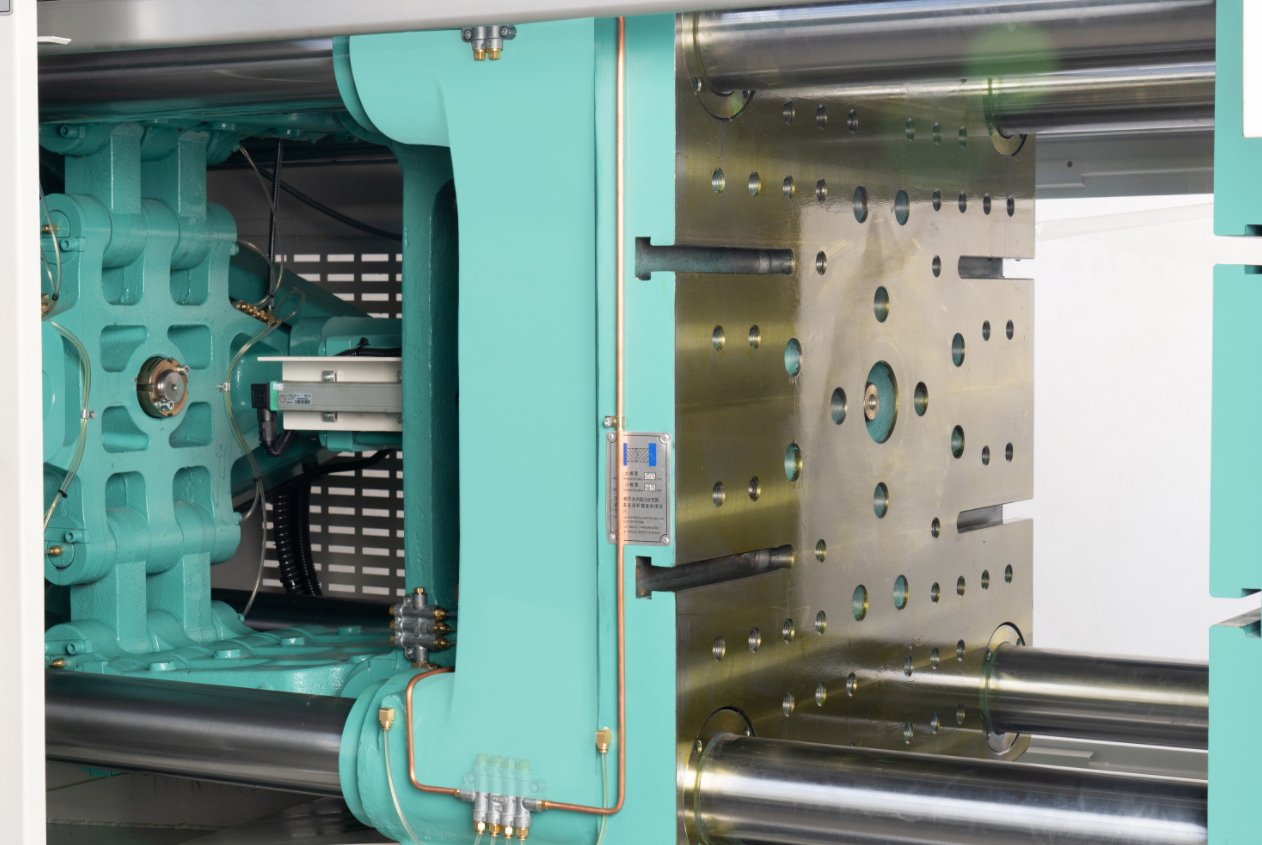

CLAMPING UNIT
High rigidity template structure design Stable operation and fast speed

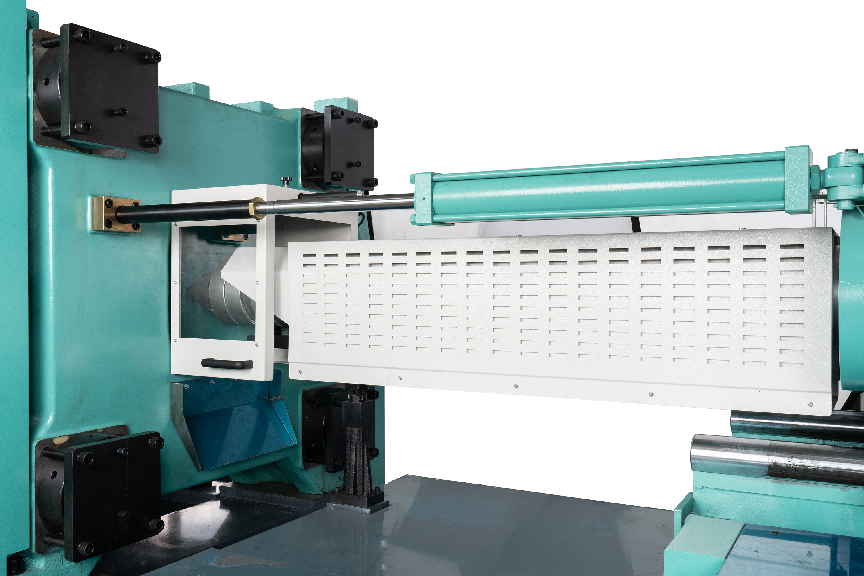

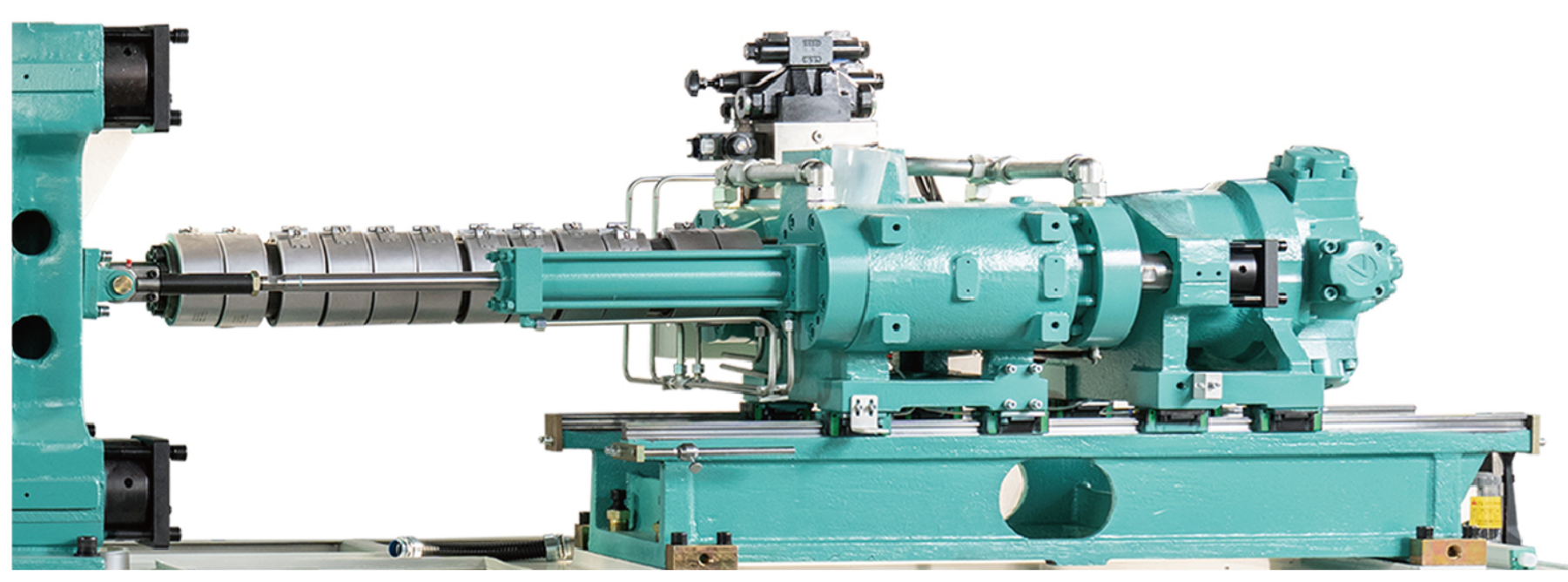

INJECTION UNIT
Powerful Performance Low Energy Consumption
Technical Parameter | |||||
Part | Name | Unit | NT500 | ||
Injection unit | SCREW DIAMETER | mm | 70 | 75 | 80 |
SCREW L/D RATIO | L/D | 21.4 | 20 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 1501 | 1723 | 1960 | |
INJECTION WEIGHT(PS) | g | 1366 | 1568 | 1784 | |
INJECTION PRESSURE | Mpa | 194 | 169 | 148 | |
INJECTION RATE | cm⊃3;/sec | 396 | 455 | 517 | |
PLASTICZATION CAPACITY(PS) | g/sec | 63 | 78 | 93 | |
INJECTION STROKE | mm | 390 | |||
INJECTION SPEED | Mm/sec | 103 | |||
SCREW SPEED | rpm | 160 | |||
Clamping unit | CLAMP FORCE | Kn | 5000 | ||
OPEN STROKE | mm | 800 | |||
SPACE BETWEEN TIE BARS | mm×mm | 830X780 | |||
MAX.MOULD HEIGHT | mm | 850 | |||
MIN.MOULD HEIGHT | mm | 280 | |||
EJECTOR STROKE | mm | 200 | |||
EJECTOR FORCE | Kn | 111 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 50 | |||
HEATING POWER | Kw | 29.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 7.9*1.95*2.4 | |||
MACHINE WEIGHT(ESTIMATE) | T | 16 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
