| Quantity: | |
|---|---|

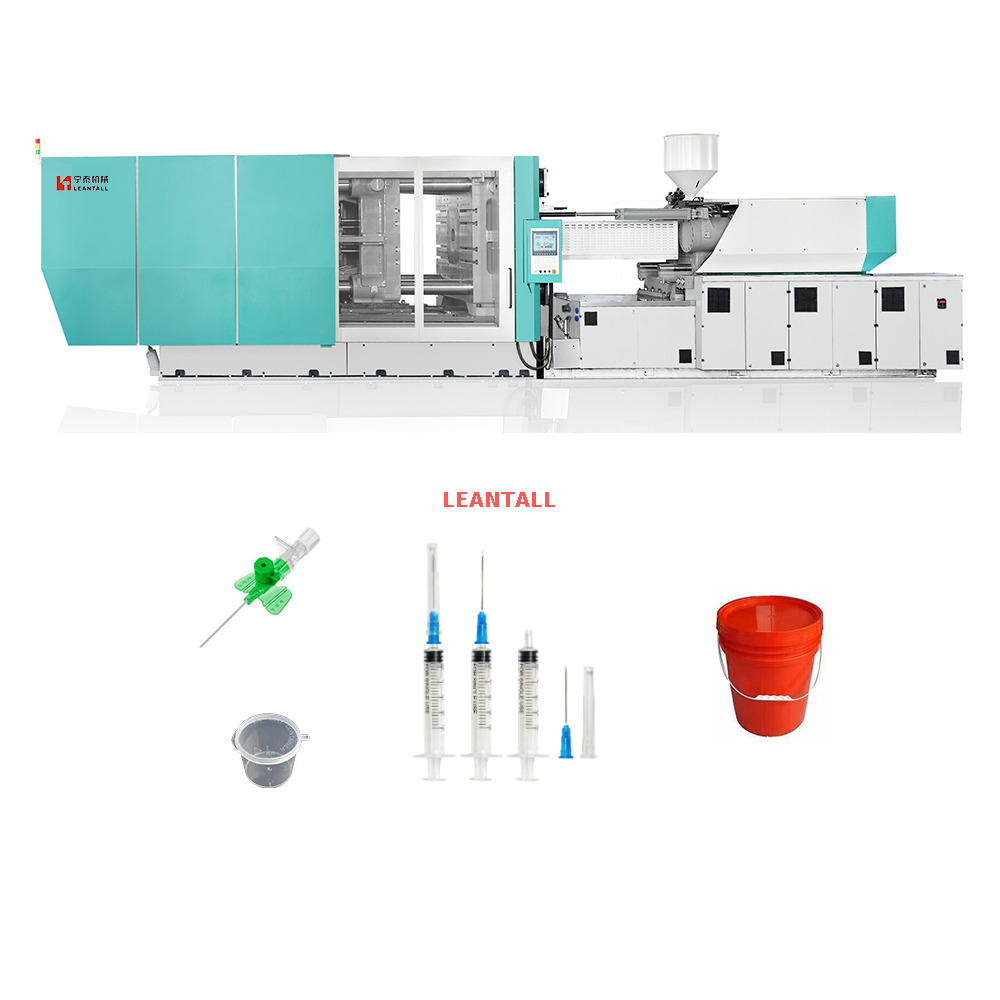

NT360
LEANTALL
8477101090
CLAMPING UNIT
INJECTION UNIT
The hydraulic system is the heart of these machines, providing stable and adjustable pressure. Advanced hydraulic technologies, such as proportional valves and energy-saving pumps, not only enhance production efficiency but also reduce energy consumption by up to 20% compared to traditional models. Additionally, modern control panels equipped with touchscreens and PLC systems allow operators to set parameters (e.g., temperature, injection speed, and clamping force) with high accuracy, minimizing human error and ensuring consistent product quality.
From an application perspective, these machines are widely used in automotive, electronics, packaging, and medical industries. In the automotive sector, 1000T-1700T models produce large plastic parts with strict dimensional requirements, while 100T-300T machines in the electronics industry manufacture miniaturized components with tight tolerances. The medical industry also relies on their precision to produce sterile, high-quality plastic products like IV drip chambers.
Technical Parameter | |||||
Part | Name | Unit | NT360 | ||
Injection unit | SCREW DIAMETER | mm | 65 | 70 | 75 |
SCREW L/D RATIO | L/D | 22 | 20 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 1161 | 1347 | 1546 | |
INJECTION WEIGHT(PS) | g | 1056 | 1225 | 1406 | |
INJECTION PRESSURE | Mpa | 202 | 174 | 152 | |
INJECTION RATE | cm⊃3;/sec | 328 | 380 | 437 | |
PLASTICZATION CAPACITY(PS) | g/sec | 63 | 76 | 93 | |
INJECTION STROKE | mm | 350 | |||
INJECTION SPEED | Mm/sec | 99 | |||
SCREW SPEED | rpm | 180 | |||
Clamping unit | CLAMP FORCE | Kn | 3600 | ||
OPEN STROKE | mm | 670 | |||
SPACE BETWEEN TIE BARS | mm×mm | 730X680 | |||
MAX.MOULD HEIGHT | mm | 700 | |||
MIN.MOULD HEIGHT | mm | 250 | |||
EJECTOR STROKE | mm | 195 | |||
EJECTOR FORCE | Kn | 101 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 44 | |||
HEATING POWER | Kw | 22.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 7.2*1.85*2.35 | |||
MACHINE WEIGHT(ESTIMATE) | T | 11 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
