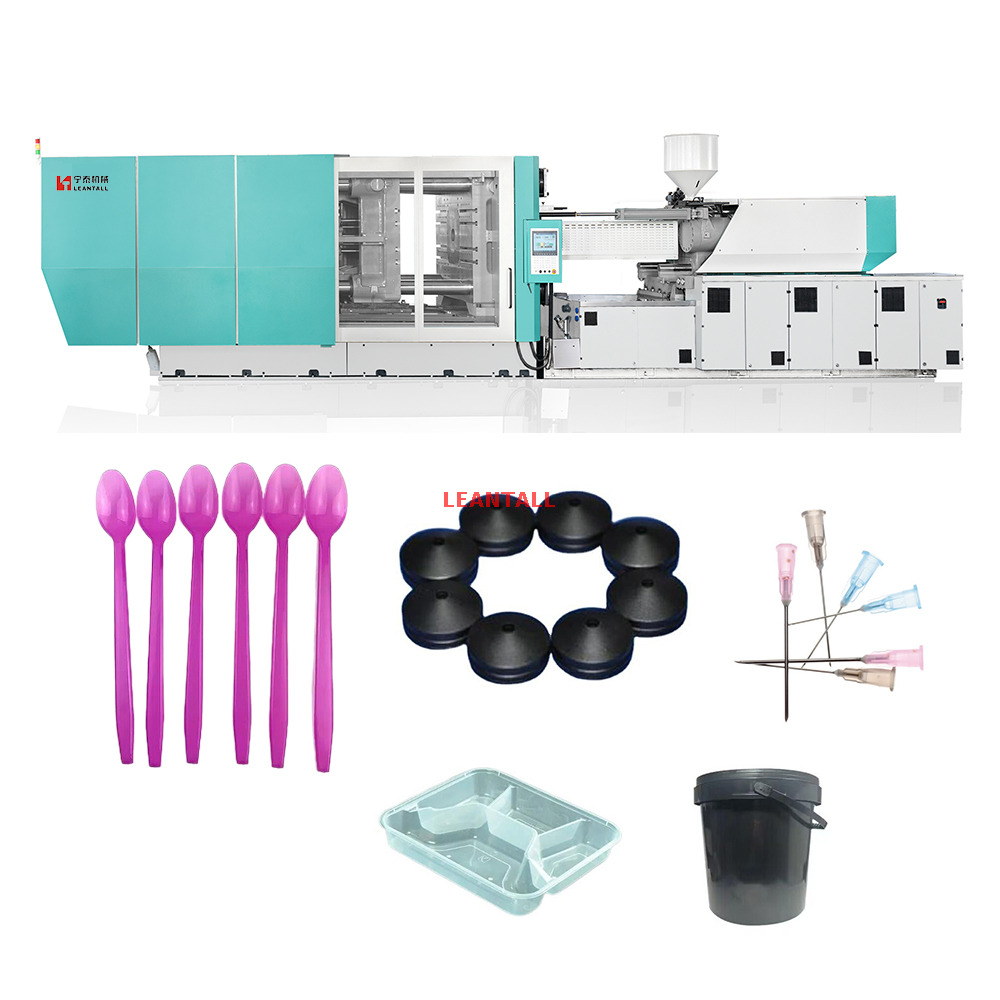

NT500
LEANTALL
8477101090
CLAMPING UNIT
High rigidity template structure design Stable operation and fast speed
• Optimized designed double-toggle five-joint clamping machinism High rigidity mould platen with enlarged space between tie bar, fit for larger scope of the moulds.
• The template has both T-slots and regular threaded holes for easy installation of various molds.
• Large moving die stroke with smooth & fast motion.
• Electrical & mechanical safety protection device.
• Four-stage control for pressure, speed, position to lock & open the platen.
• Automatic centralized lubrication system.
• Differential quick mode lock device.
• Gear regulating the mould driven by hydraulic motor.
INJECTION UNIT
Powerful Performance Low Energy Consumption
• Optimizing design can improve rigidity and steady.
• Double cylinder injection system is used to ensure stability, quick response and high precision.
• According to the European standard, the injection speed can be faster, and get a wider processing range.
• A PLD temperature control, precise temperature control of barrel.
• Ceramic heater is the standard outfit, can increase the speed of heating, and prolong service life.
Technical Parameter | |||||
Part | Name | Unit | NT500 | ||
Injection unit | SCREW DIAMETER | mm | 70 | 75 | 80 |
SCREW L/D RATIO | L/D | 21.4 | 20 | 19 | |
SHOT VOLUME(THEORETICAL) | CM3 | 1501 | 1723 | 1960 | |
INJECTION WEIGHT(PS) | g | 1366 | 1568 | 1784 | |
INJECTION PRESSURE | Mpa | 194 | 169 | 148 | |
INJECTION RATE | cm⊃3;/sec | 396 | 455 | 517 | |
PLASTICZATION CAPACITY(PS) | g/sec | 63 | 78 | 93 | |
INJECTION STROKE | mm | 390 | |||
INJECTION SPEED | Mm/sec | 103 | |||
SCREW SPEED | rpm | 160 | |||
Clamping unit | CLAMP FORCE | Kn | 5000 | ||
OPEN STROKE | mm | 800 | |||
SPACE BETWEEN TIE BARS | mm×mm | 830X780 | |||
MAX.MOULD HEIGHT | mm | 850 | |||
MIN.MOULD HEIGHT | mm | 280 | |||
EJECTOR STROKE | mm | 200 | |||
EJECTOR FORCE | Kn | 111 | |||
EJECTOR NUMBER | N | 13 | |||
Others | MAX.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | Kw | 50 | |||
HEATING POWER | Kw | 29.5 | |||
MACHINE DIMENSION(L*W*H) | m×m×m | 7.9*1.95*2.4 | |||
MACHINE WEIGHT(ESTIMATE) | T | 16 | |||
1. Q: What is the product range?
A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc.
2. Q: Where is your main selling market?
A: We have business domestic, USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc.
3. Q: Will you offer field installation and operator training at the buyer's factory?
A: Yes, we will arrange our skilled engineers for filed installation and training.
4. Q: What is the delivery time(equipment production time)?
A: It will be ready around 50-75 days after getting mutual confirmation about the order details and prepayment.
5. Q: Do you also have source for molds and spare parts?
A: Yes, we can offer with the competitive quality and reasonable price. Customized as required.
6. Q: What is the standard of package?
A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
