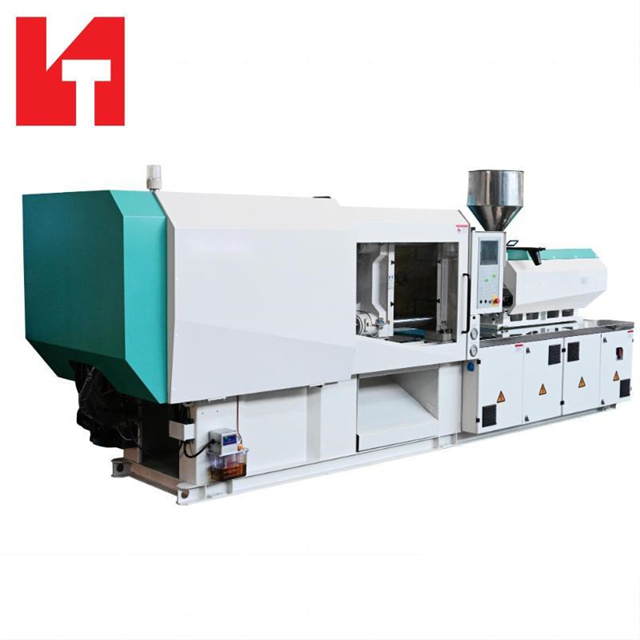

Purchasing a plastic injection molding machine represents a critical long-term equipment decision for any manufacturing facility. Over-specifying your equipment wastes valuable capacity. Conversely, under-specifying leads directly to part defects and frustrating operational bottlenecks down the line. The evaluation criteria for this hardware shift dramatically depending on your specific end-use application. For instance, producing medical devices in ISO-certified cleanrooms requires vastly different specifications than molding heavy-tonnage industrial automotive parts. You cannot simply apply a one-size-fits-all approach. This guide skips basic definitions to give you an advanced, decision-stage framework. We explore how to evaluate core hardware specifications and select the right drive technologies. You will learn exactly how to align your production realities with machine capabilities to ensure a reliable acquisition.
Mold First: Never select a machine before finalizing mold design; cavitation, runner types, and projected surface area dictate your required tonnage and platen size.
The 30-40% Rule: Always size your injection unit so your maximum required shot size uses only 60-70% of the barrel’s capacity to prevent material degradation or incomplete fills.
Drive Type Dictates Application: All-electric machines are virtually mandatory for medical-grade cleanrooms, while hydraulic or hybrid systems dominate heavy industrial molding.
Look Beyond Initial Price: Energy consumption, scrap rates from poor repeatability, and machine downtime quickly outweigh the apparent advantage of a cheaper unit.
Many buyers fall into a frustrating common trap. They buy a plastic injection molding machine based solely on their target part volume. Later, they discover the mold block cannot physically fit between the tie bars. Or, they realize the process demands far more clamping force than the machine provides. You must always design and finalize your mold first.
Your required tonnage depends heavily on the projected surface area of your part. It does not simply rely on volumetric size or overall weight. Complex geometries, side actions, and multi-cavity molds multiply the force needed to keep the mold securely closed during high-pressure injection.
Runner systems also play a massive role in sizing. Cold runners consume additional plastic per cycle. They increase your total required shot size and demand higher injection pressure. Hot runners keep the material molten inside the mold, reducing physical waste but demanding more precise thermal controls from your equipment.
Finally, consider your specialized material realities. High-performance engineering plastics like PEEK demand intense thermal management. They require extremely high mold and melt temperatures. Standard machines lack the specialized heater bands, robust screws, and high-temperature seals needed to process these advanced polymers safely.
Matching your mold precisely to the right machine parameters ensures smooth, predictable production. Here is how you evaluate the core physical specifications.
Clamping force keeps the mold tightly shut against the pressure of molten plastic. If you undersize the machine, the mold separates slightly during injection. This leads directly to flash (excess material leaking on edges) and incomplete part fills. However, oversizing brings its own harsh penalties. You waste energy, extend cycle times unnecessarily, and accelerate wear on the machine. You must always factor material viscosity into this calculation. High-viscosity resins resist flow and naturally demand significantly more clamping force.
Sizing Error | Operational Impact | Quality Consequence |
|---|---|---|
Undersized Tonnage | Mold separation under injection pressure | Flash, short shots, dimensional inaccuracy |
Oversized Tonnage | Excessive power draw, slower mold movement | Higher operating burden, accelerated mold wear |
Never push an injection unit to its absolute limit. The industry standard dictates building in a 30% to 40% buffer. If you size your shot too close to maximum capacity, you suffer inconsistent packing pressure and struggle to fill cavities fully. Conversely, if the shot size is drastically larger than your part, the resin sits too long in the heated barrel. This extended residence time degrades the polymer, destroying both part strength and visual aesthetics.
These physical dimensions establish strict non-negotiable boundaries. Tie bar spacing and platen size dictate the absolute maximum external dimensions of the mold block you can safely load. You must ensure adequate clearance for technicians to install the mold and connect water lines without risking injury or equipment damage.
You must match the machine's ejector stroke precisely to the depth of your finished part. Adequate stroke ensures clean, non-damaging part removal. If the stroke is too short, parts stick in the mold. If the mechanism moves clumsily, it damages the part or stalls your overall cycle times.
Choosing the right drive technology fundamentally impacts energy consumption, process precision, and application suitability. Make this choice based strictly on your production goals.
A hydraulic plastic molding machine excels at heavy-duty industrial applications. They dominate the market when operations require massive clamping force, typically ranging from 550 to over 2800 tons. They easily handle large automotive bumpers, thick-walled shipping containers, and heavy load profiles. However, these machines carry distinct trade-offs. They consume more energy continuously and introduce the inherent risk of oil leaks.
All-electric machines represent the gold standard for high-precision manufacturing. They are virtually mandatory for medical devices, micro-molding, and intricate consumer electronics. By relying on servo motors rather than fluid, they deliver exceptional repeatability. They drastically lower energy consumption and completely eliminate the risk of hydraulic fluid contamination.
Hybrid setups smartly blend the best of both worlds. They typically use hydraulics to generate immense clamping force while utilizing electric servo motors for highly precise injection control. They fit perfectly into mid-range consumer and industrial goods manufacturing. You get heavy clamping power alongside the precision and energy efficiency of an electric unit.
Drive Type | Best Application | Key Advantage | Primary Drawback |
|---|---|---|---|
Hydraulic | Large auto parts, heavy containers | Massive, affordable clamping force | Higher energy use, potential oil leaks |
All-Electric | Medical devices, micro-molding | Ultimate precision, zero oil risk | Higher upfront cost, lower max tonnage |
Hybrid | Mid-range industrial, consumer goods | Balances force and process efficiency | More complex maintenance requirements |
Your specific industry heavily dictates your equipment choices. A setup perfect for standard toys will fail spectacularly in a sterile medical cleanroom.
Medical manufacturing requires uncompromising cleanliness, strict regulation, and total traceability.
Facilities must adhere strictly to ISO 13485:2016 standards and ensure comprehensive FDA traceability for every batch.
Equipment must feature closed-loop material handling. This prevents airborne particulates from contaminating the sensitive resin.
Medical-grade machines demand designs that allow deep teardowns. Technicians must completely clean screws and barrels between runs to prevent black specks and dangerous cross-contamination.
In the consumer sector, rapid speed and flawless aesthetics rule the production floor.
Manufacturers prioritize extremely fast cycle times to maximize output and protect tight margins.
Machines must reliably reproduce high aesthetic surface finishes, adhering strictly to SPI or Mold-Tech visual standards.
Highly responsive injection controls are vital. They manage rapid cooling phases and prevent unsightly sink marks on complex geometric shapes.
Industrial components prioritize raw durability and structural integrity over fine surface details.
These operations focus on heavy load capacities and managing the long cycle times necessary for cooling thick-walled parts.
They frequently process highly abrasive material additives, such as resins with high glass-fiber content.
To survive these abrasive resins, the machine requires specialized, highly wear-resistant barrel and screw coatings to prevent premature failure.
Looking only at the initial sticker price is a dangerous mistake. Long-term machine behavior ultimately determines the real value of your purchase.
Power draw acts as a major long-term driver. Traditional hydraulic machines run their pumps continuously, draining electricity even during idle phases. Conversely, all-electric and servo-driven hydraulic systems only consume power when actively moving. Framing the machine choice correctly reveals that paying more for an energy-efficient unit can produce major savings through lower utility demand over time.
A cheaper machine often suffers from poor thermal control or pressure variability. This mechanical inconsistency generates costly scrap. When you process highly expensive resins like PEEK, LCP, or medical-grade silicones, a tiny increase in your scrap rate quickly eclipses the upfront savings of a budget machine. Paying for precision pays for itself rapidly.
Manual labor demands and cycle time variability quickly erode production stability. You must assess whether your chosen machine integrates seamlessly with modern robotics. Standardized interfaces allow robots to extract parts reliably. This reduces manual labor, speeds up cycles, and keeps the entire cooling process highly consistent.
A machine is only as reliable as the team supporting it. Evaluate potential suppliers carefully using these steps:
Assess their post-sale support infrastructure. Do they deploy field technicians quickly to your specific region?
Verify local parts availability. Waiting three weeks for a proprietary replacement part halts your entire operation.
Demand upfront engineering services. Top-tier vendors offer comprehensive Design for Manufacturability (DFM) reviews to ensure your mold and machine pair perfectly.
Check their training programs. Your operators need extensive instruction to maximize the equipment's potential and run it safely.
Choosing the right plastic injection molding machine requires careful, holistic analysis. You must balance the physical realities of your specific mold design, the unique physics of your chosen materials, and strict industry compliance standards. The cheapest option rarely delivers the best long-term production outcome. Avoid the trap of evaluating equipment solely by tonnage or price tag.
To move forward successfully, take action on these next steps. Create a precise requirements matrix detailing your exact tonnage, required shot size, and ideal drive type. Base this matrix entirely on your finalized mold design, not estimates. Finally, insist on running a test mold on the prospective machine before signing any final procurement contract. Testing validates the theory and protects your investment.
A: You calculate required tonnage by determining the total projected surface area of your part. Multiply this area by a specific tonnage factor based on the resin's viscosity. Typically, you need 2 to 5 tons of clamping force per square inch of projected area. High-viscosity materials require the higher end of this scale.
A: A drastically oversized shot size creates a problem called residence time. If the barrel holds too much plastic relative to your part, the material sits in the heated zone for too long. The polymer degrades, which severely compromises both the mechanical strength and visual aesthetics of your final product.
A: No, processing PEEK on standard machines poses severe safety risks. PEEK requires extremely high melt and mold temperatures. Standard heater bands, screws, and cooling lines will fail or burst under these extreme conditions. You must use specialized, high-heat machine configurations to process PEEK safely.
