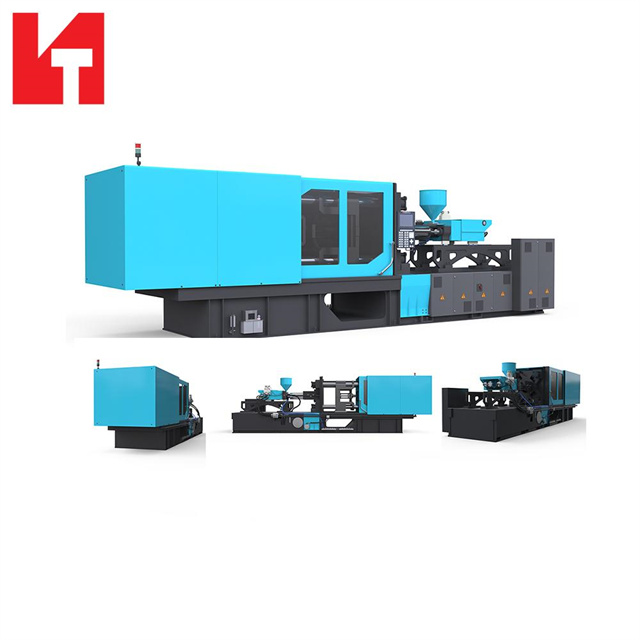

Procuring a plastic injection molding machine is a high-stakes equipment decision. This choice directly shapes your manufacturing floor's efficiency and long-term viability. A single miscalculation in hardware specifications can disrupt production for years.
Mismatching machine specifications to production needs results in severe operational friction. Undersizing a press leads to persistent part defects like flash and short shots, while accelerating expensive mold wear. Conversely, oversizing a unit inflates energy consumption. It also introduces severe risks of material degradation during processing.
You need an evidence-based approach to escape the guesswork of generalized equipment charts. We will explore a precise framework to evaluate and shortlist equipment based on actual operational requirements. You will learn how to balance clamping force, shot size, and mold fit to guarantee peak production efficiency.
Tonnage does not equal production capacity: A smaller, highly responsive machine often yields a faster cycle time and better process fit for small, intricate parts than an oversized press.
The 20/80 Shot Capacity Rule: For optimal melt density and to prevent thermal degradation, shot weight should remain between 20% and 80% of the machine’s maximum barrel capacity.
Account for the "Hidden" Tonnage: Cold runner systems and gating can consume up to 30–50% of the required clamping force and must be factored into projected area calculations.
Physical Mold Fit is a hard barrier: Tie-bar spacing and daylight stroke determine if a mold can physically operate, overriding tonnage requirements.
Many procurement managers fall into a common trap. They buy a larger press to create a safe operational buffer. We call this the oversizing trap. It rarely provides true safety. Instead, it actively degrades your manufacturing efficiency.
Buying more machine than you need wastes power and capacity. Running an injection molding machine at only 10% to 15% of its capacity creates major energy waste. This is especially severe in hydraulic systems. A massive pump constantly running to maintain pressure for a tiny mold drains electricity. Furthermore, oversized machines suffer from sluggish injection responses. They cannot deliver the crisp, rapid movements required for small components.
Material degradation poses an even greater risk. Engineering resins require careful heat management. Polycarbonate (PC) and acrylic are highly sensitive to residence time. Residence time is how long the plastic stays inside the heated barrel. If you run a small shot in a massive barrel, the material sits baking in the heat. It undergoes thermal degradation. You will see yellowing, brittleness, and unacceptably high scrap rates.
Finally, we must separate production capacity from clamp force. Raw clamping force does not dictate how many parts you produce an hour. Production capacity relies entirely on cycle times and mold cooling efficiency. A smaller machine opens and closes faster. It offers a shorter dry cycle time. For small, intricate parts, a fast 50-ton machine outproduces a sluggish 200-ton machine every single day.
Tonnage calculation requires precision. You cannot guess. You must apply the industry-standard equation to determine your exact clamping needs.
The Core Formula: Required Tonnage = Projected Area (sq. in.) × Material Cavity Pressure (tons/sq. in.) + Safety Margin.
Projected area is the two-dimensional shadow your part casts when illuminated from the direction of the mold opening. However, a simple area calculation is incomplete. You must multiply this area by the material's specific cavity pressure. Different polymers require vastly different pressures to flow effectively.
Material Type | Flow Characteristics | Estimated Cavity Pressure (tons/sq.in.) |
|---|---|---|
Polypropylene (PP) / Polyethylene (PE) | High flow, low viscosity | 2.0 - 3.0 |
ABS / Polystyrene (PS) | Medium flow, standard viscosity | 3.0 - 4.0 |
Polycarbonate (PC) / Acrylic (PMMA) | Stiff flow, high viscosity | 4.0 - 5.0 |
Glass-Filled Nylon / Ultem | Highly viscous, abrasive | 5.0 - 7.0+ |
Common Mistake: Do not calculate only the part surface area. You must factor in the runner systems. Multi-cavity cold runner systems consume enormous amounts of space. The main sprue and runner branches drastically increase your total projected area. Cold runners often consume 30% to 50% of the total required clamping force. Ignoring them guarantees you will buy an undersized machine.
You must also adjust for geometry complexity. Plastic cools rapidly as it flows through thin channels. This rapid cooling increases viscosity. High viscosity demands higher injection pressure to fill the cavity before the material freezes. Deep ribs, thin walls, and poor venting create localized high-pressure zones. We recommend a 15% to 25% upward tonnage adjustment for these complex geometries.
Evaluating injection capacity requires a solid understanding of material physics. Machine manufacturers rate shot capacity using Polystyrene (PS). Polystyrene has a specific gravity of roughly 1.05. You rarely mold only Polystyrene. You must calculate specific gravity ratios when using heavier or lighter materials.
If you mold Polypropylene (specific gravity 0.90), your actual maximum shot weight is much lower than the machine's PS rating. If you fail to convert these densities, you risk maxing out your barrel capacity mid-injection.
Best Practice: The 20-80% Operating Window
Keep your total shot weight between 20% and 80% of the barrel capacity.
Below 20%: Material degrades from excessive heat exposure.
Above 80%: The screw struggles to melt and mix the plastic uniformly.
For high-precision medical or optical components, tighten this window to 40-60%. This ensures absolute melt uniformity and prevents optical defects.
Next, evaluate the screw diameter and its L/D (Length to Diameter) ratio. This ratio dictates how well the screw melts and mixes the polymer. Standard applications tolerate a 20:1 ratio perfectly well. However, engineering plastics require thorough plasticization. Resins like PET demand extended heating zones. You must use screws with ≥22:1 ratios for these demanding materials.
Finally, confirm your nozzle sizing. The machine nozzle must physically match the mold sprue bushing. Mismatching these components invites disaster. A nozzle orifice larger than the sprue bushing causes severe material leaks. A nozzle orifice smaller than the sprue creates a massive pressure drop. It also causes frictional overheating, which burns the resin as it enters the mold.
Physical mold fit acts as a hard barrier in machine procurement. Your tonnage calculations mean nothing if the mold cannot physically fit inside the press. You must verify four critical dimensions.
First, measure your tie-bar spacing. Tie-bars are the massive steel rods guiding the moving platen. They define the absolute physical limit for loading the mold. Your mold must clear these tie-bars vertically or horizontally without risking impact. Striking a tie-bar during crane loading can cause thousands of dollars in structural damage.
Second, evaluate platen dimensions and load bearing. Sometimes you manufacture oversized but lightweight parts. Think of large plastic display trays. The required tonnage is very low. However, the physical size is massive. You do not need a 600-ton machine just to get bigger platens. You should look for a specific "wide-platen" machine framework. These specialized machines combine low clamping force with expansive mold mounting surfaces.
Third, check the opening stroke. The industry calls this the daylight stroke. Deep-draw parts, like trash bins or industrial buckets, require immense daylight. Even if the tonnage requirement is low, the machine needs sufficient stroke to open the mold fully. The stroke must clear the entire length of the core. It must also provide enough space for part ejection and robotic extraction.
Fourth, leave space for peripherals. A mold is rarely a simple steel block. It bristles with external hardware. You must evaluate clearance for core pull cylinders protruding from the sides. You need room for bulky water manifold connections. If you use quick-mold-change (QMC) clamping systems, they add several inches of thickness to the mounting footprint. Do not forget these peripheral dimensions.
Procurement teams must look beyond initial purchase considerations. Long-term operational behavior dictates production stability. Your choice of drive technology plays a major role here.
System Type | Primary Advantage | Operational Profile | Best Application |
|---|---|---|---|
Hydraulic | Massive holding force. | Higher energy consumption, high maintenance (oil). | Heavy automotive, thick-walled parts. |
All-Electric | Clinical precision, zero oil contamination. | Higher precision and lower energy demand, but lower max tonnage. | Medical devices, optical lenses, cleanrooms. |
Hybrid | Combines fast electric injection with hydraulic clamp. | Balanced performance with strong high-speed efficiency. | Thin-wall packaging, fast-cycle consumer goods. |
Industry-specific safety margins also dictate your selection. Compliance regulations force distinct procurement behaviors. Medical device manufacturing operates under strict FDA validation protocols. These protocols often require locked process parameters. Environmental fluctuations affect material viscosity. Choosing a machine with a 30% to 40% excess capacity ensures your process stays comfortably within validated windows, regardless of factory conditions.
Automotive and heavy industrial sectors face different challenges. They process aggressive materials like glass-filled nylon. These resins require high torque to plasticize. They also generate massive mold expansion forces. You need highly rigid platens and robust motor torque to handle abrasive resins without suffering premature wear.
Pay close attention to motor ratings. Do not confuse a high kilowatt (kW) rating with wasted electricity. A high kW motor rating indicates strong load-fluctuation resistance. It provides the necessary torque to push viscous materials smoothly. It does not necessarily indicate a higher continuous power draw from your utility grid.
Do not rely on gut feelings. Follow this structured, step-by-step framework to shortlist your ideal equipment. This process eliminates guesswork and aligns your equipment choice with engineering reality.
Step 1: Determine the Baseline. Start with mathematics. Calculate the total Projected Area. Add the Runner Area. Multiply this combined figure by the specific Material Cavity Pressure. Add a 15% safety margin to establish your baseline clamp tonnage.
Step 2: Validate the Volume. Pull the machine's Polystyrene (PS) shot capacity. Convert this PS weight into your specific resin's weight using specific gravity ratios. Apply the 20/80 rule. Verify your total shot weight fits comfortably in the middle of the barrel capacity.
Step 3: Confirm the Physical Envelope. Request the machine's dimensional drawings. Check the mold daylight against your deepest part. Verify your mold clears the tie-bar spacing vertically or horizontally. Ensure the ejection stroke provides enough clearance for robotic end-of-arm tooling.
Step 4: Assess the Control System. Hardware is useless without intelligent software. Ensure the machine controller supports your mold's complexity. Does it track back-pressure accurately? Does it offer closed-loop injection speed profiles? Can it program multiple independent core pulls?
Next-Step Action: Once you shortlist two or three machines, demand empirical data. Recommend initiating physical mold trials with the shortlisted machine supplier. If a trial is impossible, request the EUROMAP standard performance data. This industry-standard data cuts through marketing claims and reveals true machine capability under load.
Selecting the correct equipment is a rigorous exercise in balancing thermodynamic realities with hard mechanical limits.
Never rely on generalized tonnage charts. Base your procurement strictly on part-specific calculations, including material viscosity and runner systems.
Protect your material integrity by fiercely adhering to the 20/80 barrel utilization rule.
Measure your physical mold footprint, including all peripherals, before finalizing any tie-bar specifications.
Optimal procurement safeguards both immediate mold performance and long-term facility efficiency. Buy based on data, verify with trials, and secure your production stability for the next decade.
A: The EUROMAP size rating is an industry-standard nomenclature used primarily by European manufacturers. It combines the clamp force (measured in kN) and the size of the injection unit. The injection unit figure is calculated by multiplying the maximum injection pressure by the stroke volume. This rating provides buyers with a quick, standardized read on the machine's overall mechanical capability.
A: You can, but you face severe risks. Small molds in large presses cause uneven platen stress, which can permanently bow the platens and damage the mold. Additionally, processing a small shot size in a massive barrel causes excessive resin residence time. This leads to thermal degradation. You will also waste significant electrical consumption powering oversized hydraulic pumps.
A: Most manufacturers rate barrel capacity using Polystyrene. To convert this for your specific material, use this concise logic: Divide your Material's Density by Polystyrene's Density (approx. 1.05). Multiply that result by the Machine's Rated PS Shot Capacity. This gives you the accurate maximum shot weight for your chosen resin.
